TECHNICAL DATA
规格参数
General specifications

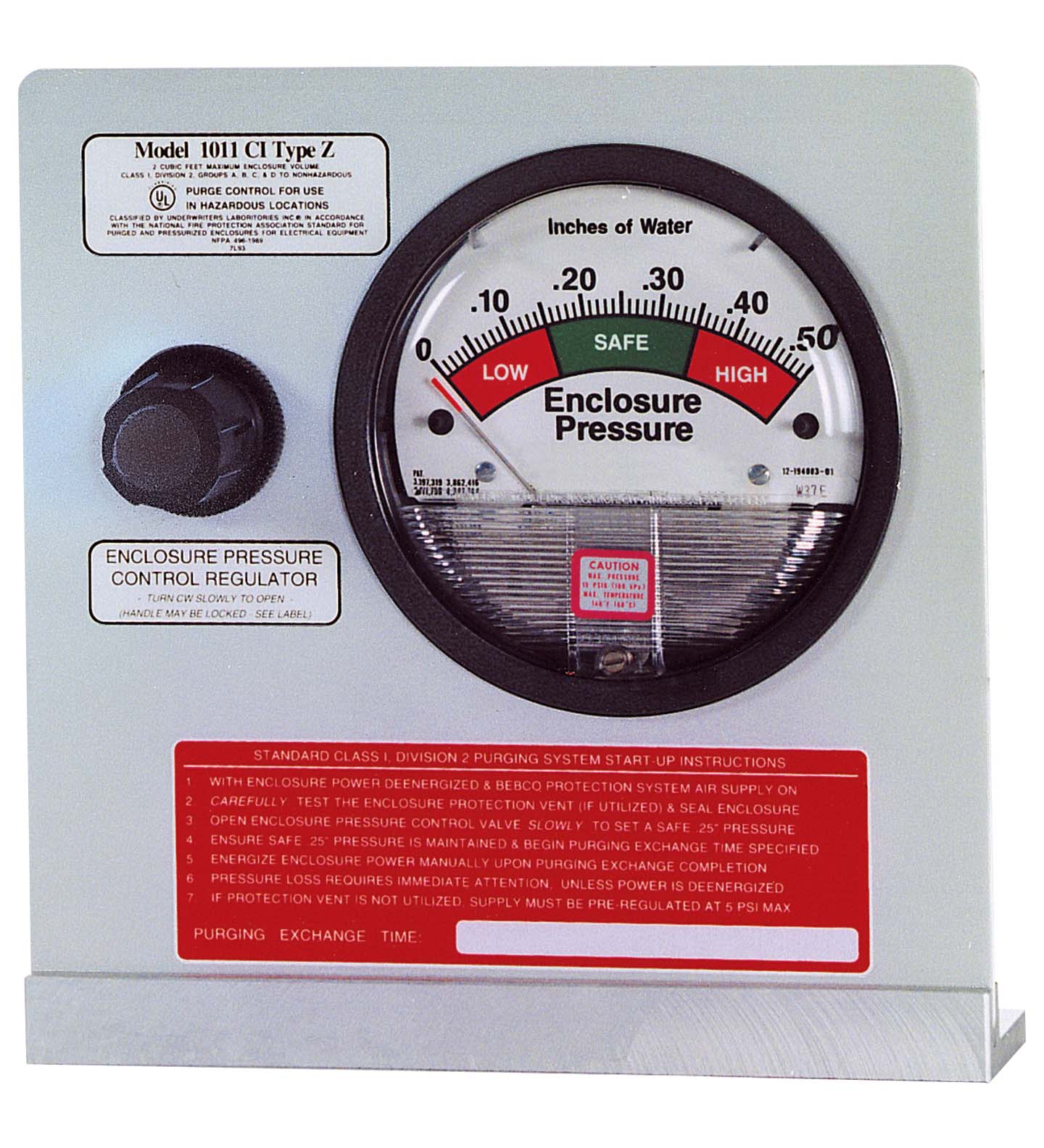

| Series | 1011 |
|---|---|
| System | Type Y Purge , Type Z Purge |
| Hazardous environment | gas |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 5 - 120 psi (With EPV-1 vent. Systems installed without vent must be equipped with redundant regulator set to 5 psi max.) |
| Safe pressure | Setpoint: Class I: 0.25" (6.35 mm); Class II: 1.0" (25.4 mm)Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr) |
| Ambient temperature | -29 ... 49 °C (-20.2 ... 120.2 °F) |
| Connection type | System supply fitting: 1/4" tube fittingEnclosure supply fitting: 1/4" tube fittingEnclosure reference fitting: 1/4" tube fitting |
| Material | Regulator body: brass, zinc w/enamel finishRegulator handle: polycarbonateEnclosure pressure gauge: alum w/ enamel finishTube fittings: 316 ss forged bodyTubing: 316 ss 1/4" .035 weldedSystem nameplate: silk screened Lexan®Fastener hardware: alum. & stainless steelMounting plate & bracket: anodized aluminumEnclosure warning nameplate: silk screened ss |
| Mass | 3.2 kg (7 lb) |
| UL approval | UL approval |
| cULusClass I, Division 2, Groups A, B, C, DClass II, Division 2, Groups F, G | cULusClass I, Division 2, Groups A, B, C, DClass II, Division 2, Groups F, G |
| cULus | Class I, Division 2, Groups A, B, C, DClass II, Division 2, Groups F, G |
