TECHNICAL DATA
规格参数
General specifications

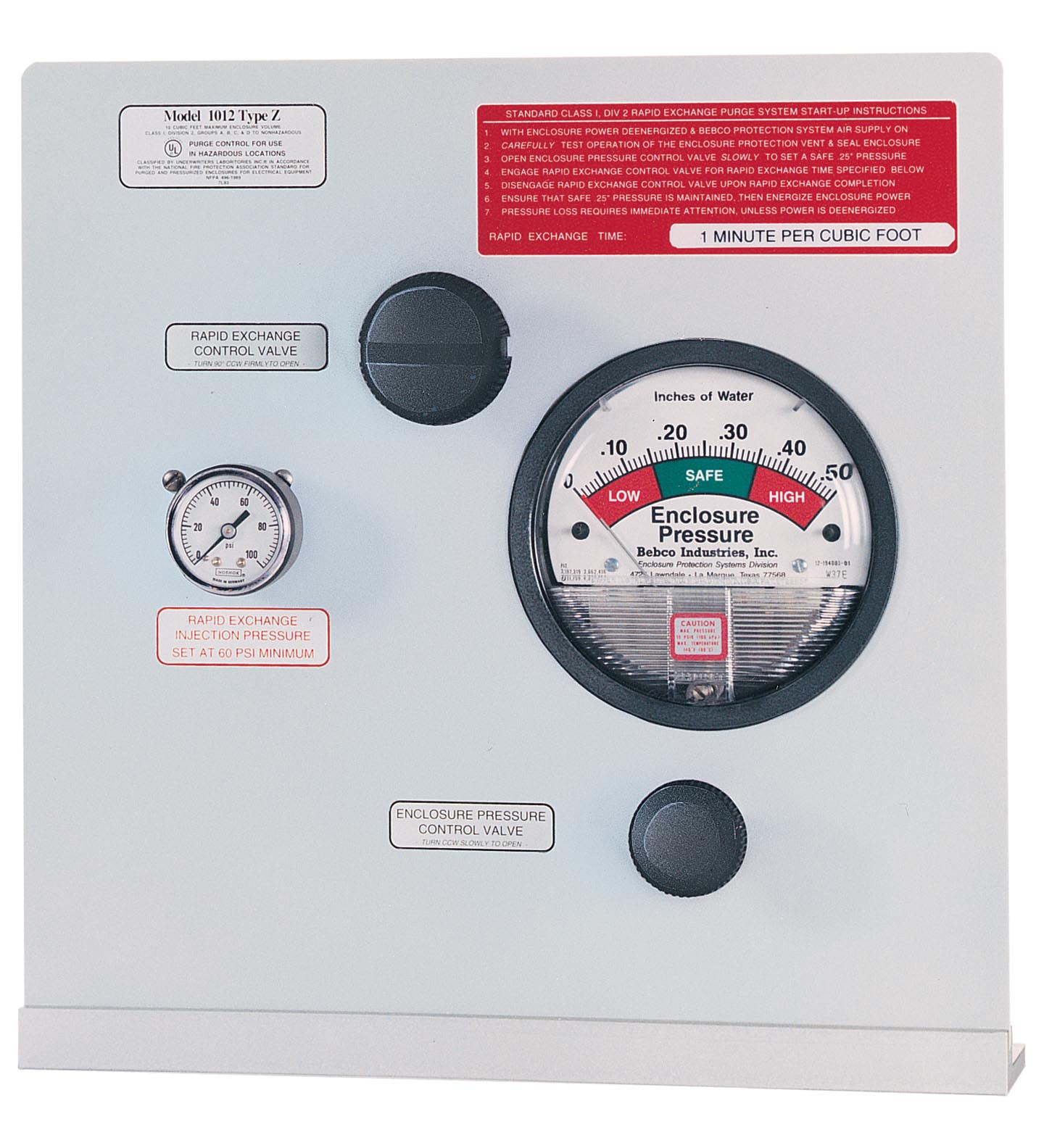

| Series | 1012 |
|---|---|
| System | Type Y Purge , Type Z Purge |
| Hazardous environment | gas |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 80 - 120 psi |
| Safe pressure | Setpoint: 0.25" (6.35 mm)Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr) |
| Process conditions | Process conditions |
| Capacity and filtration1.5 oz @ 20 µExchange pressure3" - 5"Exchange flow rate4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange)Exchange time1 min / ft3 | Capacity and filtration1.5 oz @ 20 µExchange pressure3" - 5"Exchange flow rate4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange)Exchange time1 min / ft3 |
| Capacity and filtration | 1.5 oz @ 20 µ |
| Exchange pressure | 3" - 5" |
| Exchange flow rate | 4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange) |
| Exchange time | 1 min / ft3 |
| Ambient temperature | -29 ... 49 °C (-20.2 ... 120.2 °F) |
| Connection type | System supply port: 1/4" FTPEnclosure supply fitting: 1/4" tube fittingEnclosure reference fitting: 1/4" tube fitting |
| Material | Filter regulator body: zinc w/enamel finishRegulator handle & bowl: polycarbonateEnclosure pressure gauge: alum. w/enamel finishRapid Exchange® gauge: poly case and brass tubeTube fittings & valves: 316 ss forged body Tubing: 316 ss 1/4" .035 weldedSystem nameplate: silk-screened Lexan® & 6061 aluminumFastener hardware: alum. & stainless steelMounting plate: 6061 AluminumEnclosure warning nameplate: silk-screened stainless steel |
| Mass | 4.5 kg (10 lb) |
| UL approval | UL approval |
| cULusClass I, Division 2, Groups A, B, C, D | cULusClass I, Division 2, Groups A, B, C, D |
| cULus | Class I, Division 2, Groups A, B, C, D |
