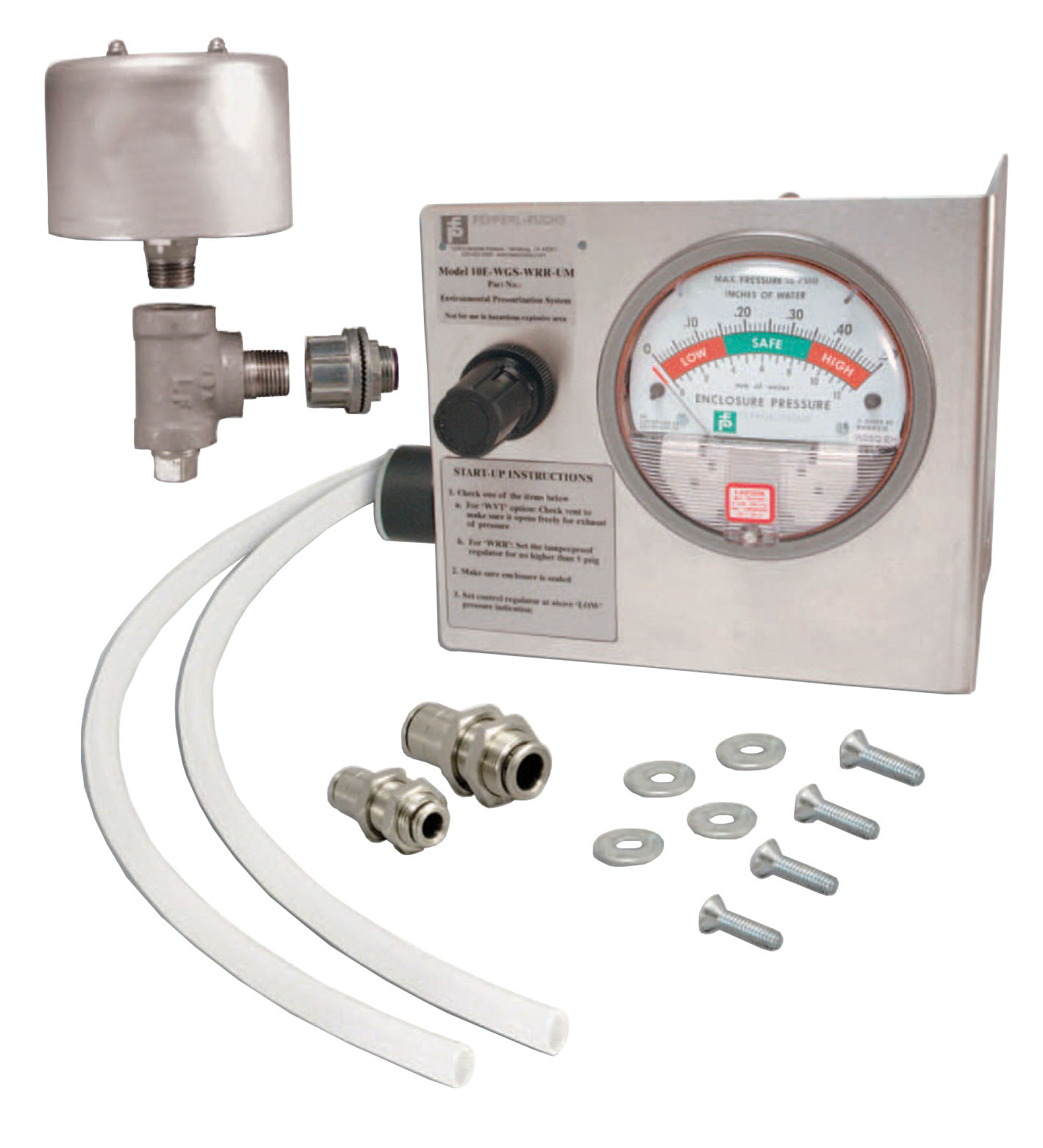

TECHNICAL DATA
规格参数
General specifications
| Series | Enviro-Line |
|---|---|
| System | Enviro-Line |
| Connection | Terminal blocks |
| Output I | -WGS- |
| Output typeSwitch contactsContact loading15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC | Output typeSwitch contactsContact loading15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC |
| Output type | Switch contacts |
| Contact loading | 15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 5 ... 120 psi (.34 ... 8.3 bar) (34 ... 827 kPa) |
| Enclosure pressure | 0.5" wc (12.5 mm wc) (1.25 mbar) (125 Pa) |
| Flow rate for leakage compensation | 0.1 ... 3.5 SCFH (2.83 ... 99.12 l/hr) |
| Ambient temperature | -28.9 ... 48.9 °C (-20 ... 120 °F) |
| Connection type | System supply fitting: GBC-6, 3/8 inch bulkhead fitting System supply tubing: 3/8 inch nylon or Polyethylene tubing Reference fitting: GBC-4, 1/4 inch bulkhead fitting Reference tubing: 1/4 inch nylon or Polyethylene tubing |
| Material | Regulator body: zinc w/enamel finishRegulator handle: polycarbonateEnclosure pressure gauge: aluminum w/enamel finishTube fittings, GBC-: nickel plated brassTubing: nylon or polyethyleneFastener hardware: aluminum & stainless steelMounting plate: 316L, 14 ga. stainless steel |
| Mass | 10E-WGS-WRR-_: 4.54 kg (10 lb) 10E-LGS-WRR-_: 3.18 kg (7 lb) 10E-WGS-WVT-_: 6.35 kg (14 lb) 10E-LGS-WVT-_: 4.99 kg (11 lb) |
