TECHNICAL DATA
规格参数

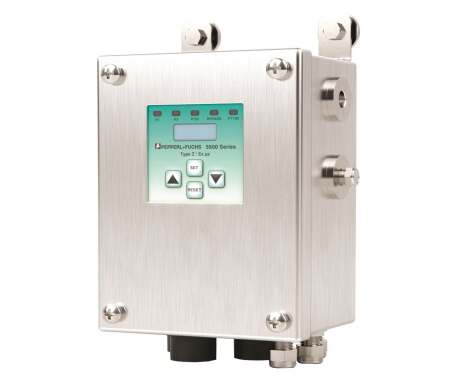

General specifications
| Operating mode | fully automatic (FA) |
|---|---|
| Series | 5500 |
| System | Type Z Purge ; Ex pzc Purge |
| Number of volume exchanges | 4 ... 19 |
| Hazardous environment | gas or dust |
| Rated voltage | 100 ... 240 V AC, 0.05 A, 50 ... 60 Hz 20 ... 30 V DC, 0.2 A |
| Power consumption | 100 ... 240 V AC - 2.3 VA (without digital valve) 20 ... 30 V DC - 2.5 W (without digital valve) |
| Input I | Temperature, up to 2 RTDs per unit |
| ConnectionPt100, 2-wire-connectionInput typetemperature inputInput accuracy: 2.5% of the measurement value + PT100 error | ConnectionPt100, 2-wire-connectionInput typetemperature inputInput accuracy: 2.5% of the measurement value + PT100 error |
| Input II | 1 Bypass |
| Connectionpassive contact (switch)Input typemechanical contact | Connectionpassive contact (switch)Input typemechanical contact |
| Connection | Pt100, 2-wire-connection |
| Input type | temperature inputInput accuracy: 2.5% of the measurement value + PT100 error |
| Connection | passive contact (switch) |
| Input type | mechanical contact |
| Output I | Output I |
| ConnectionK1, terminals: K1/N0, K1/N0Output typeenclosure power, (1) SPSTInrush current6 AContact loading6 A at 250 V AC , 30 V DC resistive load, 6 A at 30 V DC | ConnectionK1, terminals: K1/N0, K1/N0Output typeenclosure power, (1) SPSTInrush current6 AContact loading6 A at 250 V AC , 30 V DC resistive load, 6 A at 30 V DC |
| Output II | Output II |
| ConnectionK2, terminals: K2 (NO, C, NC)Output typealarm, (1) SPDTInrush current3 AContact loading3 A at 250 V AC , 30 V DC resistive load, 3 A at 30 V DC | ConnectionK2, terminals: K2 (NO, C, NC)Output typealarm, (1) SPDTInrush current3 AContact loading3 A at 250 V AC , 30 V DC resistive load, 3 A at 30 V DC |
| Output III | Output III |
| Connectiondigital valve, terminals SVOutput type(1) SPST, powered contacts from supply5.0 A at 250 VAC or 30 VDCInrush current5 A | Connectiondigital valve, terminals SVOutput type(1) SPST, powered contacts from supply5.0 A at 250 VAC or 30 VDCInrush current5 A |
| Connection | K1, terminals: K1/N0, K1/N0 |
| Output type | enclosure power, (1) SPST |
| Inrush current | 6 A |
| Contact loading | 6 A at 250 V AC , 30 V DC resistive load, 6 A at 30 V DC |
| Connection | K2, terminals: K2 (NO, C, NC) |
| Output type | alarm, (1) SPDT |
| Inrush current | 3 A |
| Contact loading | 3 A at 250 V AC , 30 V DC resistive load, 3 A at 30 V DC |
| Connection | digital valve, terminals SV |
| Output type | (1) SPST, powered contacts from supply5.0 A at 250 VAC or 30 VDC |
| Inrush current | 5 A |
| LED indication | Membrane Pad K1: Green - Contact K1 is energized K2: Amber - Contact K2 is energized SV/encl press.: Blue for safe pressure, Amber for valve on Bypass: Amber when bypass is active PT100 error: Red when fault in PT100 sensor |
| Protective gas supply | instrument grade air or inert gas |
| Safe pressure | - gas 0.7 mbar (0.3 in w.c.)- dust 1.6 mbar (0.65 in w.c.) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Degree of protection | EN 60529 |
| Shock resistance | EN 60068-2 |
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) at T6 -20 ... 60 °C (-4 ... 140 °F) at T4 |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | 5 ... 100 Hz , 1 g, 12 m/s2, all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Connection type | High pressure port: 1/8" NPTF Low pressure port: 1/8" NPTF |
| Cable gland | Cable sizeM12 diameter 3 - 6.5 mmM20 diameter 10 - 12 mm RTD/Bypass: (3) M12x1.5K1, K2, SV: 'P_C' (3) M20x1.5 |
| Degree of protection | Type 4X, IP66 |
| Material | Housing: 316 stainless steelCable Gland: 316 stainless steel or Nickel Plated BrassPressure Ports: 316 stainless steelMembrane Pad: Autotex F200XEO-ring: EPDM |
| Mass | approx. 2.7 kg (6 lb) |

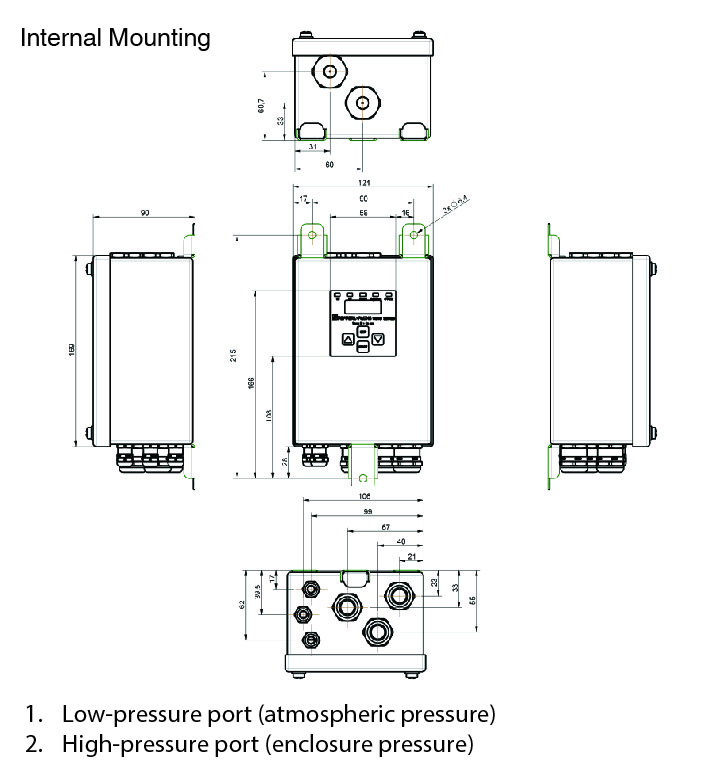

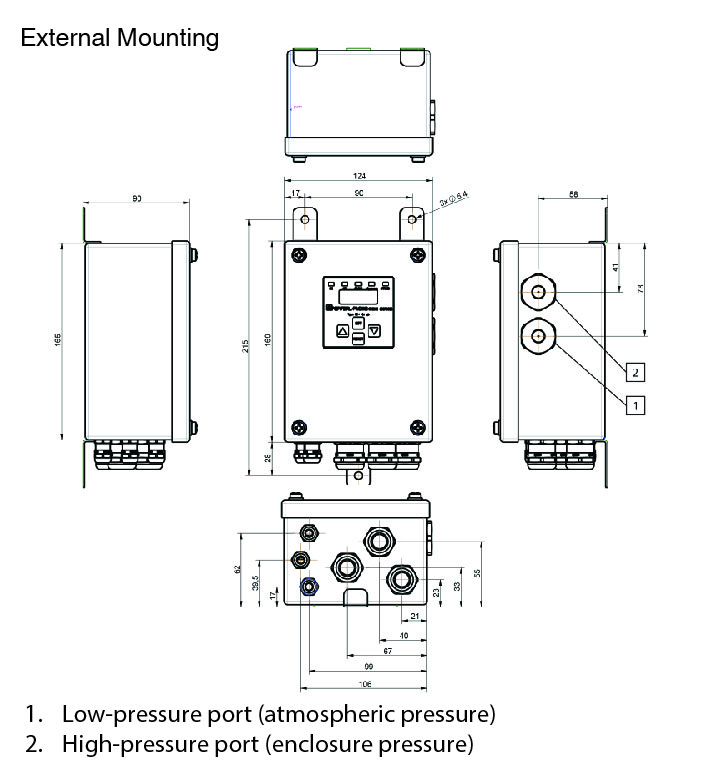

| Dimensions | 165 x 124 x 90 mm (6.5 x 4.9 x 3.5 in) |
| Height203 mmWidth165 mmDepth105 mm | Height203 mmWidth165 mmDepth105 mm |
| Height | 203 mm |
| Width | 165 mm |
| Depth | 105 mm |
| Certificate | DEMKO 14 ATEX 1282X |
| Marking II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T4 Gc (-20 °C ≤ Ta ≤ 60 °C) [exsign] II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T6 Gc (-20 °C ≤ Ta ≤ 40 °C) [exsign] II 3 (3) D Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (external version) [exsign] II 3 (3) D Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (external version) [exsign] II 3 (3) D Ex ic tc [ic Dc] [pzc Dc] IIIC T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (internal version) [exsign] II 3 (3) D Ex ic tc [ic Dc] [pzc Dc] IIIC T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (internal version) | Marking II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T4 Gc (-20 °C ≤ Ta ≤ 60 °C) [exsign] II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T6 Gc (-20 °C ≤ Ta ≤ 40 °C) [exsign] II 3 (3) D Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (external version) [exsign] II 3 (3) D Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (external version) [exsign] II 3 (3) D Ex ic tc [ic Dc] [pzc Dc] IIIC T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (internal version) [exsign] II 3 (3) D Ex ic tc [ic Dc] [pzc Dc] IIIC T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (internal version) |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN 60079-15:2019 , EN 60079-2:2014 , EN 60079-7:2015+A1:2018 , EN 60079-31:2014 | Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN 60079-15:2019 , EN 60079-2:2014 , EN 60079-7:2015+A1:2018 , EN 60079-31:2014 |
| Marking | II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T4 Gc (-20 °C ≤ Ta ≤ 60 °C) [exsign] II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T6 Gc (-20 °C ≤ Ta ≤ 40 °C) [exsign] II 3 (3) D Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (external version) [exsign] II 3 (3) D Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (external version) [exsign] II 3 (3) D Ex ic tc [ic Dc] [pzc Dc] IIIC T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (internal version) [exsign] II 3 (3) D Ex ic tc [ic Dc] [pzc Dc] IIIC T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (internal version) |
| Directive 2014/34/EU | EN IEC 60079-0:2018 , EN 60079-11:2012 , EN 60079-15:2019 , EN 60079-2:2014 , EN 60079-7:2015+A1:2018 , EN 60079-31:2014 |
| UL approval | UL approval |
| cULusUL File E184741Class I, Division 2, Groups A, B, C, D T4 (-20 °C ≤ Ta ≤ 60 °C)Class II, Division 2, Groups F, G, T4 (-20 °C ≤ Ta ≤ 60 °C)Class I, Division 2, Groups A, B, C, D T6 (-20 °C ≤ Ta ≤ 40 °C)Class II, Division 2, Groups F, G T6 (-20 °C ≤ Ta ≤ 40 °C) | cULusUL File E184741Class I, Division 2, Groups A, B, C, D T4 (-20 °C ≤ Ta ≤ 60 °C)Class II, Division 2, Groups F, G, T4 (-20 °C ≤ Ta ≤ 60 °C)Class I, Division 2, Groups A, B, C, D T6 (-20 °C ≤ Ta ≤ 40 °C)Class II, Division 2, Groups F, G T6 (-20 °C ≤ Ta ≤ 40 °C) |
| IECEx approval | IECEx UL 14.0019X Ex ic ec nC [ic Gc] [pzc Gc] IIC T4 Gc (-20 °C ≤ Ta ≤ 60 °C) Ex ic ec nC [ic Gc] [pzc Gc] IIC T6 Gc (-20 °C ≤ Ta ≤ 40 °C)Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (external version) Ex ic tc [ic IIIC Dc] [pzc Dc] IIIB T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (external version)Ex ic tc [ic Dc] [pzc Dc] IIIC T80 °C Dc (-20 °C ≤ Ta ≤ 60 °C) (internal version)Ex ic tc [ic Dc] [pzc Dc] IIIC T60 °C Dc (-20 °C ≤ Ta ≤ 40 °C) (internal version) |
| cULus | UL File E184741Class I, Division 2, Groups A, B, C, D T4 (-20 °C ≤ Ta ≤ 60 °C)Class II, Division 2, Groups F, G, T4 (-20 °C ≤ Ta ≤ 60 °C)Class I, Division 2, Groups A, B, C, D T6 (-20 °C ≤ Ta ≤ 40 °C)Class II, Division 2, Groups F, G T6 (-20 °C ≤ Ta ≤ 40 °C) |
| Supplementary information | Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
