TECHNICAL DATA
规格参数
General specifications
| Function | Min/Max/Average/Difference value |
|---|---|
| Measuring range | Measuring range |
| Temperature-40 ... 800 °C (-104 ... 1,472 °F) | Temperature-40 ... 800 °C (-104 ... 1,472 °F) |
| Temperature | -40 ... 800 °C (-104 ... 1,472 °F) |
| Internal data memory | Up to 99 points with time and date |
| Display | Display |
| Resolution0.1 °C / 0.1 °F | Resolution0.1 °C / 0.1 °F |
| Resolution | 0.1 °C / 0.1 °F |
| Battery type | 2x AAA, type approved |
| Operating duration | 4 h (continuous operation) |
| Measuring principle | Infrared |
| Distance to measuring spot size | 50:1 (D:S) |
| Measuring spot marking | Single-point laser |
| Infrared range | 8 ... 14 µm |
| Emissivity adjustment | 0.10 to 1.00 (step size 0.01) |
| Accuracy | > 0 °C ±1 °C or 1% whichever is greater |
| Response time | < 500 ms |
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Mass | approx. 365 g |
| Dimensions | 175 mm x 166 mm x 55 mm |
| ATEX approval | ATEX approval |
| ATEX certificateEPS 13 ATEX 1 525 XATEX marking II 2G Ex ia op is IIC T4 Gb | ATEX certificateEPS 13 ATEX 1 525 XATEX marking II 2G Ex ia op is IIC T4 Gb |
| ATEX certificate | EPS 13 ATEX 1 525 X |
| ATEX marking | II 2G Ex ia op is IIC T4 Gb |
| INMETRO approval | INMETRO approval |
| INMETRO certificateTÜV 24.1259 XINMETRO markingEx ia op is IIC T4 Gb 0 °C ... Tamb ... +50 °C | INMETRO certificateTÜV 24.1259 XINMETRO markingEx ia op is IIC T4 Gb 0 °C ... Tamb ... +50 °C |
| INMETRO certificate | TÜV 24.1259 X |
| INMETRO marking | Ex ia op is IIC T4 Gb 0 °C ... Tamb ... +50 °C |

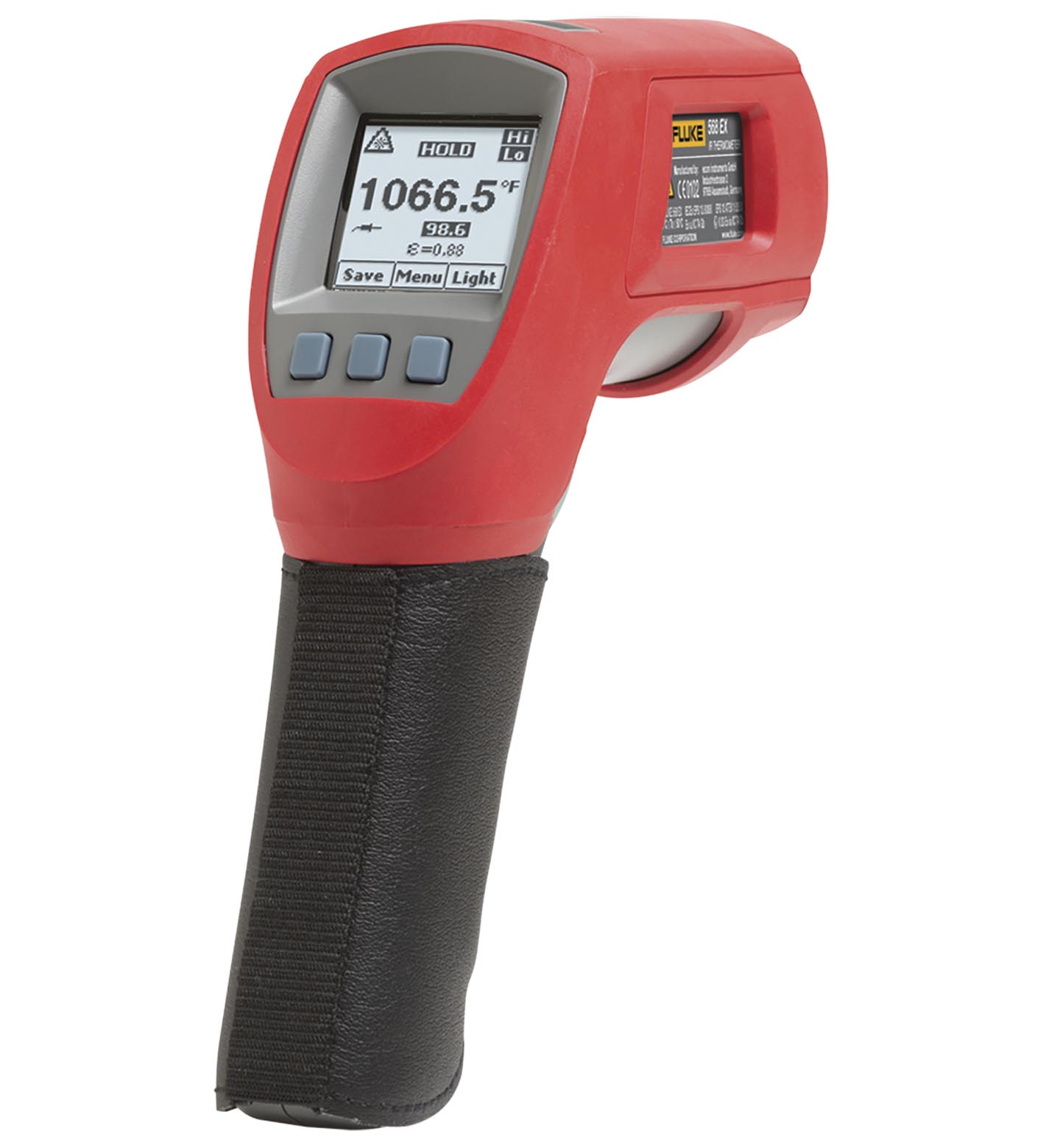

| Scope of delivery | Fluke 568 EX Batteries Leather grip Carrying case Thermocouple probe type K Documentation |
