TECHNICAL DATA
规格参数
General specifications
| Number of pins | 4 |
|---|---|
| Connection 1 | socket |
| Construction type 1 | right angle |
| Threading 1 | M12 |
| Connection 2 | cable end |
| Operating voltage | max. 300 V DC |
| Test voltage | > 1500 V eff AC |
| Operating current | max. 4 A |
| Volume resistance | < 5 mΩ |
| Ambient temperature | -25 ... 105 °C (-13 ... 221 °F) |
| Pollution degree | 3 |
| Pin diameter | 1 mm |
| Degree of protection | IP69K |
| Material | Material |
| ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutZinc die-casting, nickel-platedCore insolationPVC | ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutZinc die-casting, nickel-platedCore insolationPVC |
| Cable | fine-strand, flexible |
| Sheath diameter∅ 5.9 mmBending radius10 x cable diameterColoryellowCores4 x 0.34 mm2LengthL5 m | Sheath diameter∅ 5.9 mmBending radius10 x cable diameterColoryellowCores4 x 0.34 mm2LengthL5 m |
| Flammability | Flammability |
| Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL | Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL |
| Contacts | CuSn |
| Contact surface | Ni/Au |
| Body | TPU , yellow |
| Cable | PVC |
| Slotted nut | Zinc die-casting, nickel-plated |
| Core insolation | PVC |
| Sheath diameter | ∅ 5.9 mm |
| Bending radius | 10 x cable diameter |
| Color | yellow |
| Cores | 4 x 0.34 mm2 |
| Length | 5 m |
| Contact carrier | 94 V-2 |
| Housing | 94 V-2 |
| Cable | VW-1 flame rating from UL |

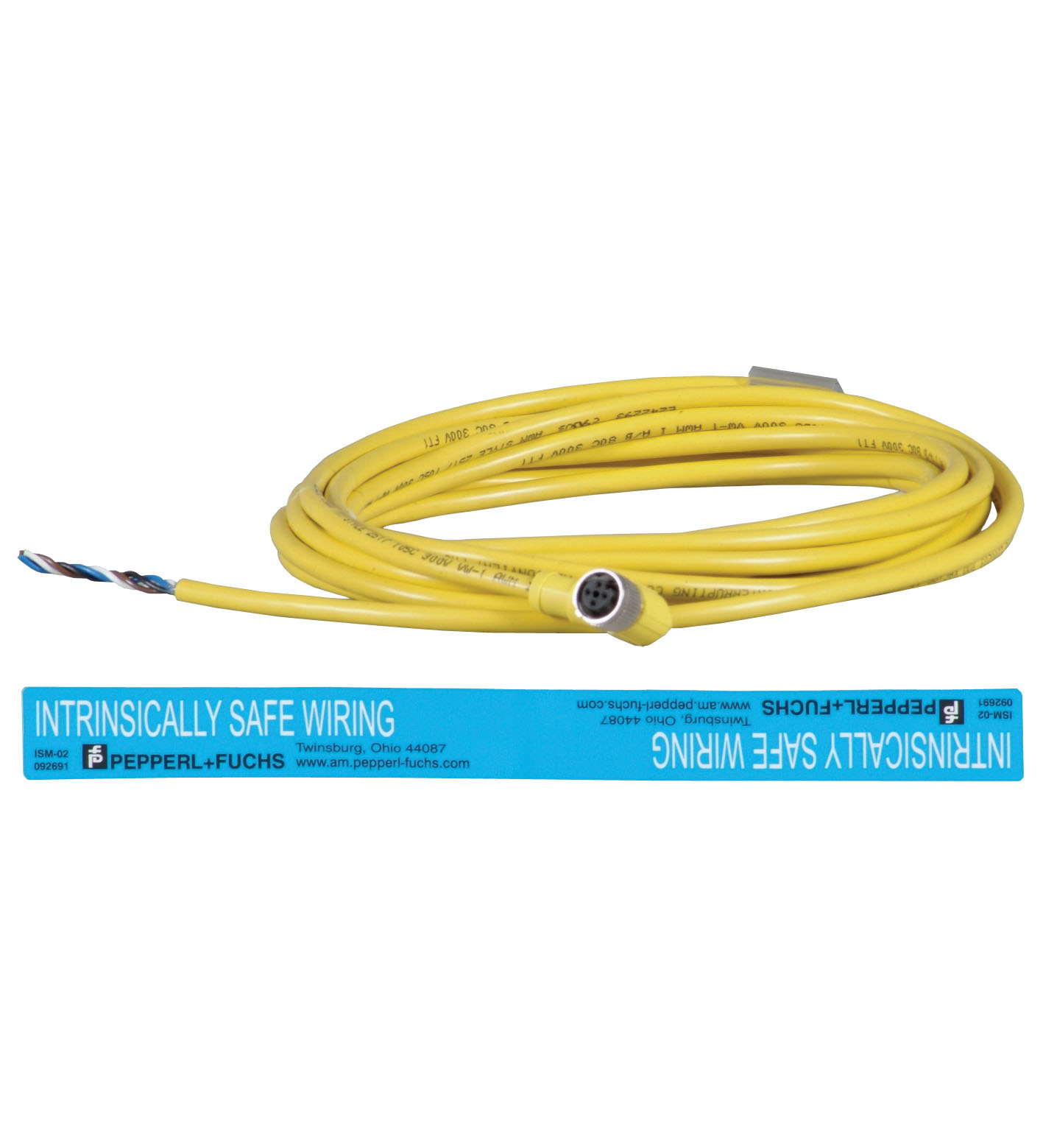

| Supplementary information | Kit contains: 5 m, shielded M12 cable I.S. wire identification tags |
