TECHNICAL DATA
规格参数
General specifications
| Series | 6000 Series |
|---|---|
| System | Type X Purge ; Ex pxb Purge |

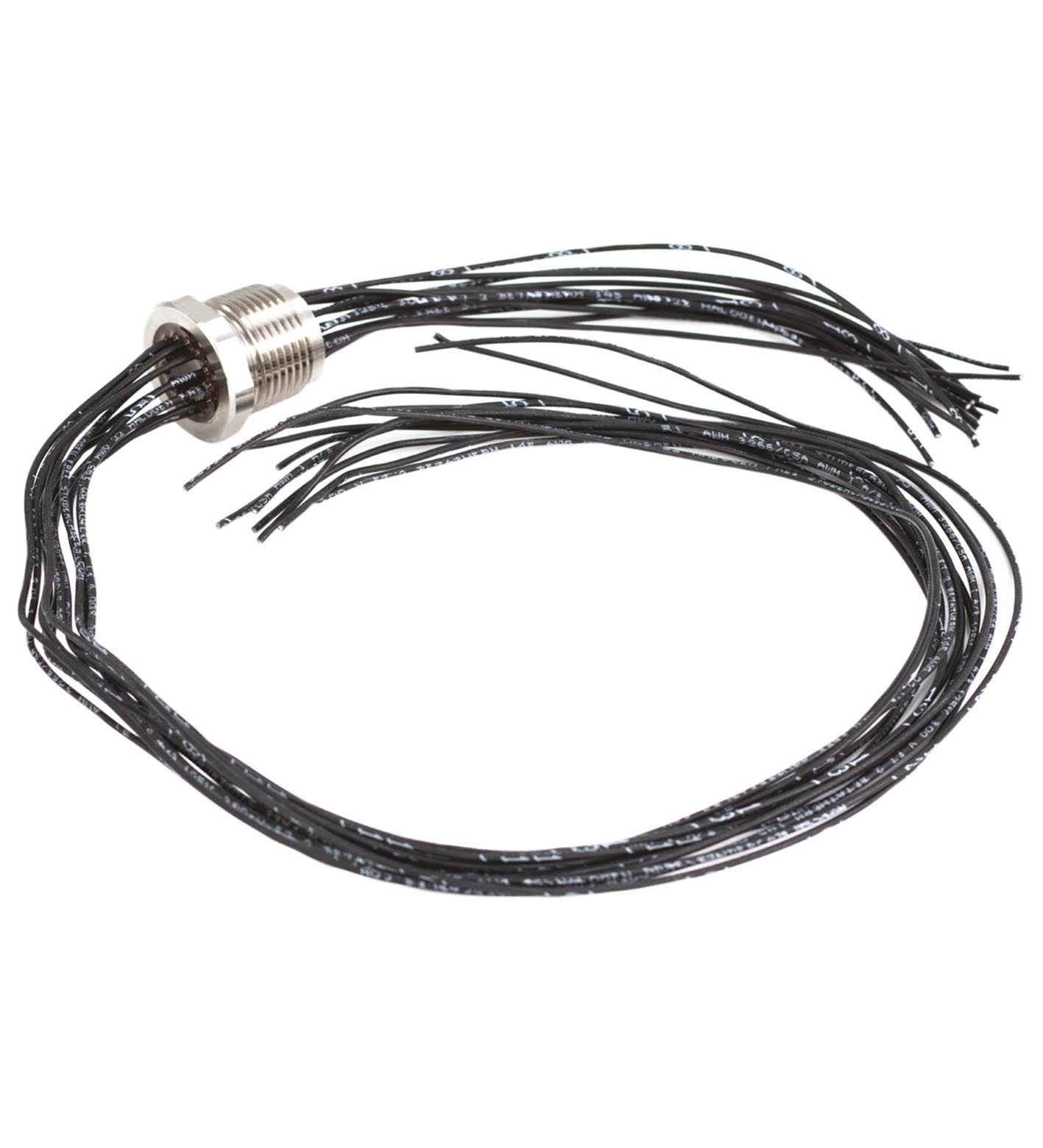

| Connection type | 3/4" NPT, Explosionproof seal |
| Cable | Gauge: 22 AWG (0.33 mm²)Minimum Insulation Thickness: 0.25 mm (0.010")Outer diameter: 8.00 mm (0.315") |
| Mass | 800 g for 500 mm cable383 g for 4200 mm cable |
| Dimensions | 500 mm 4200 mm |
| System information | Must be used with 6000 series purge system to meet certification requirements. |
