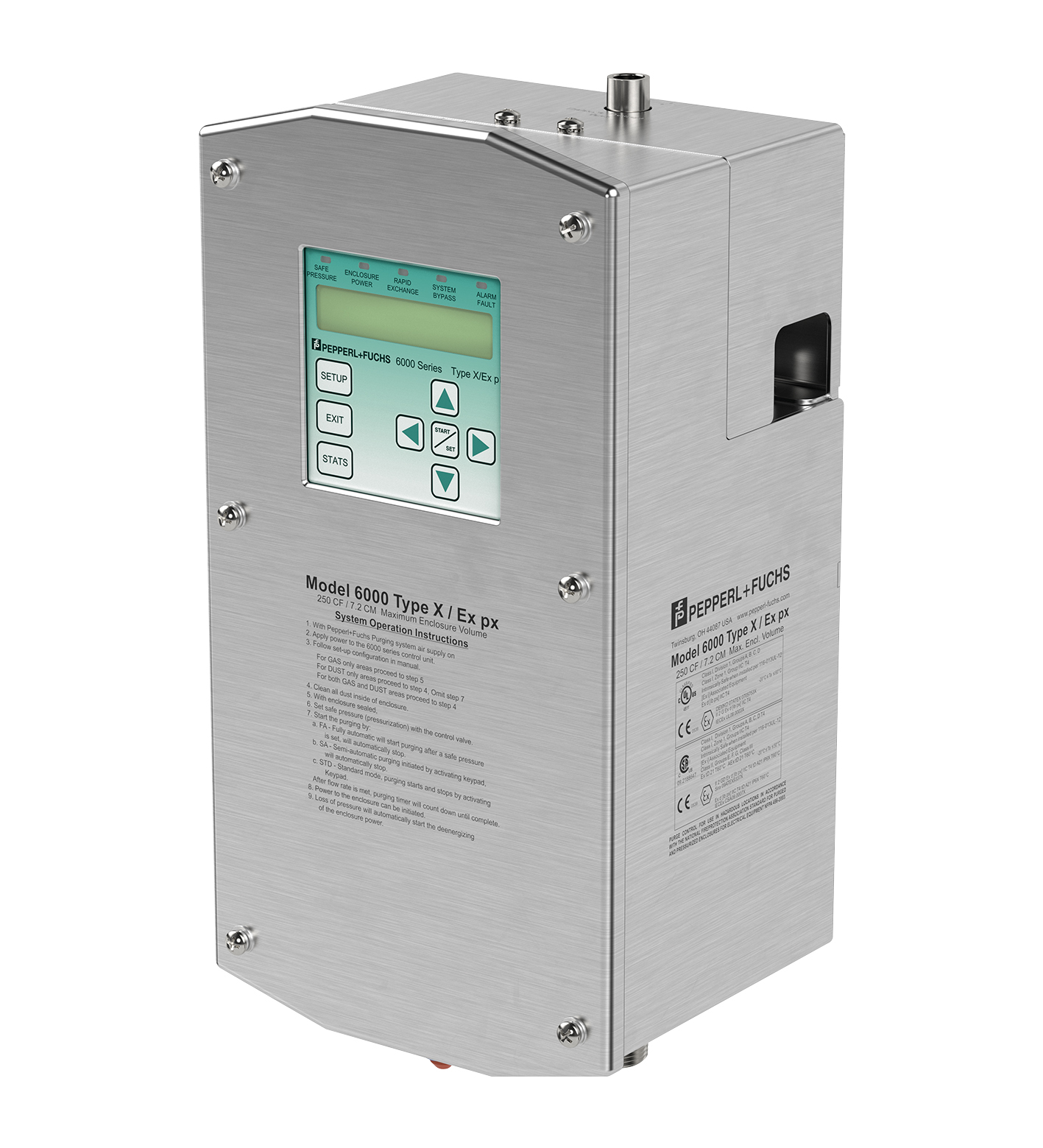

TECHNICAL DATA
规格参数
General specifications
| Operating mode | manual, semi-automatic, or fully automatic - programmable |
|---|---|
| Series | 6000 Series |
| System | Type X Purge ; Ex pxb Purge |
| Number of volume exchanges | 4 to 19 |
| Hazardous environment | gas, dust, gas and dust |
| Rated voltage | 100 ... 250 V AC, 50 ... 60 Hz / 0.2 A 20 ... 30 V DC |
| Connection | Terminal blocks |
| Input I | Inputs 1, 2, 3, 4: contact input, 5 VDC @ 2 mA |
| Input typeintrinsically safe | Input typeintrinsically safe |
| Input II | Temperature inputs |
| Input typeintrinsically safeSensor type6000-TEMP | Input typeintrinsically safeSensor type6000-TEMP |
| Input III | EPV-6000 Vent |
| Input typeintrinsically safe | Input typeintrinsically safe |
| Input IV | User interface module |
| ConnectionM8 connector, 4-pinInput typeintrinsically safe | ConnectionM8 connector, 4-pinInput typeintrinsically safe |
| Input type | intrinsically safe |
| Input type | intrinsically safe |
| Sensor type | 6000-TEMP |
| Input type | intrinsically safe |
| Connection | M8 connector, 4-pin |
| Input type | intrinsically safe |
| Output I | AUX 1 |
| Output typeDry contacts, SPDTInrush current5 AContact loading2 A @ 240 VAC resistive load 2 A @ 24 VDC | Output typeDry contacts, SPDTInrush current5 AContact loading2 A @ 240 VAC resistive load 2 A @ 24 VDC |
| Output II | AUX 2 |
| Output typeDry contacts, SPDTInrush current5 AContact loading2 A @ 240 VAC resistive load 2 A @ 24 VDC | Output typeDry contacts, SPDTInrush current5 AContact loading2 A @ 240 VAC resistive load 2 A @ 24 VDC |
| Output III | ENC_1, ENC_2 (protected enclosure contacts) |
| Output typeDry contacts (2) SPST, NOContact loadingAC/DC versions:8 A @ 240 VAC 8 A @ 24 VDCAH/DH versions:12 A @ 240 VAC, resistive load up to an ambient of 55 °C, then 8 A up to 60 °C 12 A @ 24 VDC up to an ambient of 55 °C, then 8 A up to 60 °C.See derating curve for details. | Output typeDry contacts (2) SPST, NOContact loadingAC/DC versions:8 A @ 240 VAC 8 A @ 24 VDCAH/DH versions:12 A @ 240 VAC, resistive load up to an ambient of 55 °C, then 8 A up to 60 °C 12 A @ 24 VDC up to an ambient of 55 °C, then 8 A up to 60 °C.See derating curve for details. |
| Output type | Dry contacts, SPDT |
| Inrush current | 5 A |
| Contact loading | 2 A @ 240 VAC resistive load 2 A @ 24 VDC |
| Output type | Dry contacts, SPDT |
| Inrush current | 5 A |
| Contact loading | 2 A @ 240 VAC resistive load 2 A @ 24 VDC |
| Output type | Dry contacts (2) SPST, NO |
| Contact loading | AC/DC versions:8 A @ 240 VAC 8 A @ 24 VDCAH/DH versions:12 A @ 240 VAC, resistive load up to an ambient of 55 °C, then 8 A up to 60 °C 12 A @ 24 VDC up to an ambient of 55 °C, then 8 A up to 60 °C.See derating curve for details. |
| LED indication | Safe pressure: Blue - safe pressure is achieved Enclosure power: Green - power on; Red - power off Rapid exchange: Blue - purging is running System bypass: Yellow - bypass is activated Alarm fault: Red (blinking) - any alarm input detected; Red (solid) - 6000 series system fault |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 20 ... 120 psig (1.4 ... 8.3 bar) (138 ... 827 kPa) regulated |
| Safe pressure | Gas: 0.625 mbar (0.25 in. w.c.) Dust: 1.6 mbar (0.65 in. w.c.) Gas and Dust: 1.6 mbar (0.65 in. w.c.) |
| Purge flow rate | Maximum flow rate measurement for enclosure size (enclosure volume:flow rate):< 20 ft3 (0.57 m3): 5, 12 SCFM (141, 340 l/min), or dynamic20 ... 30 ft3 (0.57 ... 0.85 m3): 5, 12, 20 SCFM (141, 340, 565 l/min), or dynamic> 30 ft3 (0.85 m3): 5, 12, 20, 30 SCFM (141, 340, 565, 850 l/min), or dynamic |
| Purge flow and enclosure pressure rate | With EPV-6000-xx-01, EPV-6000-xx-02141 l/min @ 3.7 mbar, (5 scfm @ 1.5 in w.c.)340 l/min @ 5.0 mbar, (12 scfm @ 2.0 in. w.c.)565 l/min @ 6.7 mbar, (20 scfm @ 2.7 in. w.c.)850 l/min @ 10.2 mbar, (30 scfm @ 4.1 in. w.c.) With EPV-6000-xx-03, EPV-6000-xx-04141 l/min @ 5.2 mbar, (5 scfm @ 2.1 in. w.c.)340 l/min @ 6.5 mbar, (12 scfm @ 2.6 in. w.c.)565 l/min @ 10.2 mbar, (20 scfm @ 4.1 in. w.c.)850 l/min @ 13.2 mbar, (30 scfm @ 5.3 in. w.c.) With EPV-6000-xx-05, 06141.6 l/min @ 4.1 mbar, (5 scfm @ 1.64 in. w.c.)339.8 l/min @ 5.5 mbar, (12 scfm @ 2.20 in. w.c.)566.3 l/min @ 14.9 mbar, (20 scfm @ 6.00 in. w.c.) |
| Flow rate for leakage compensation | Depends on enclosure seal.EPV-6000-xx-01, EPV-6000-xx-0210.0 l/min (0.35 scfm) @ 0.63 mbar (0.25 in. w.c.)28.0 l/min (1.0 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-6000-xx-03, EPV-6000-xx-046.2 l/min (0.22 scfm) @ 0.63 mbar (0.25 in. w.c.)16.4 l/min (0.58 scfm) @ 1.9 mbar (0.75 in. w.c.)EPV-6000-xx-05, EPV-6000-xx-06Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in. w.c.)Less than 1 l/min (0.035 scfm) @1.9 mbar (0.75 in. w.c.) |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) for WH dust applications-20 ... 60 °C (-4 ... 140 °F) for WH gas applications and CK gas or dust applications |
| Storage temperature | -30 ... 80 °C (-22 ... 176 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | 5 ... 100 Hz , 1 g, 12 m/s2, all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Connection type | Pneumatic : Inlet fitting to manifold: 3/8" ferrule fitting Outlet fitting from manifold: 3/8" ferrule fitting Inlet fitting to enclosure: 3/8" bulkhead fitting |
| Cable gland | 4 - M16 x 1.5 cable gland |
| Degree of protection | Type 4X , IP66 |
| Material | Enclosure: 316L (UNS S31603) stainless steel Manifold valve: anodized 6082 aluminum Fittings: 316L (UNS S31603) stainless steel |
| Mass | -WH- 11.4 kg (25 lb) -CK- 7.2 kg (16 lb) |

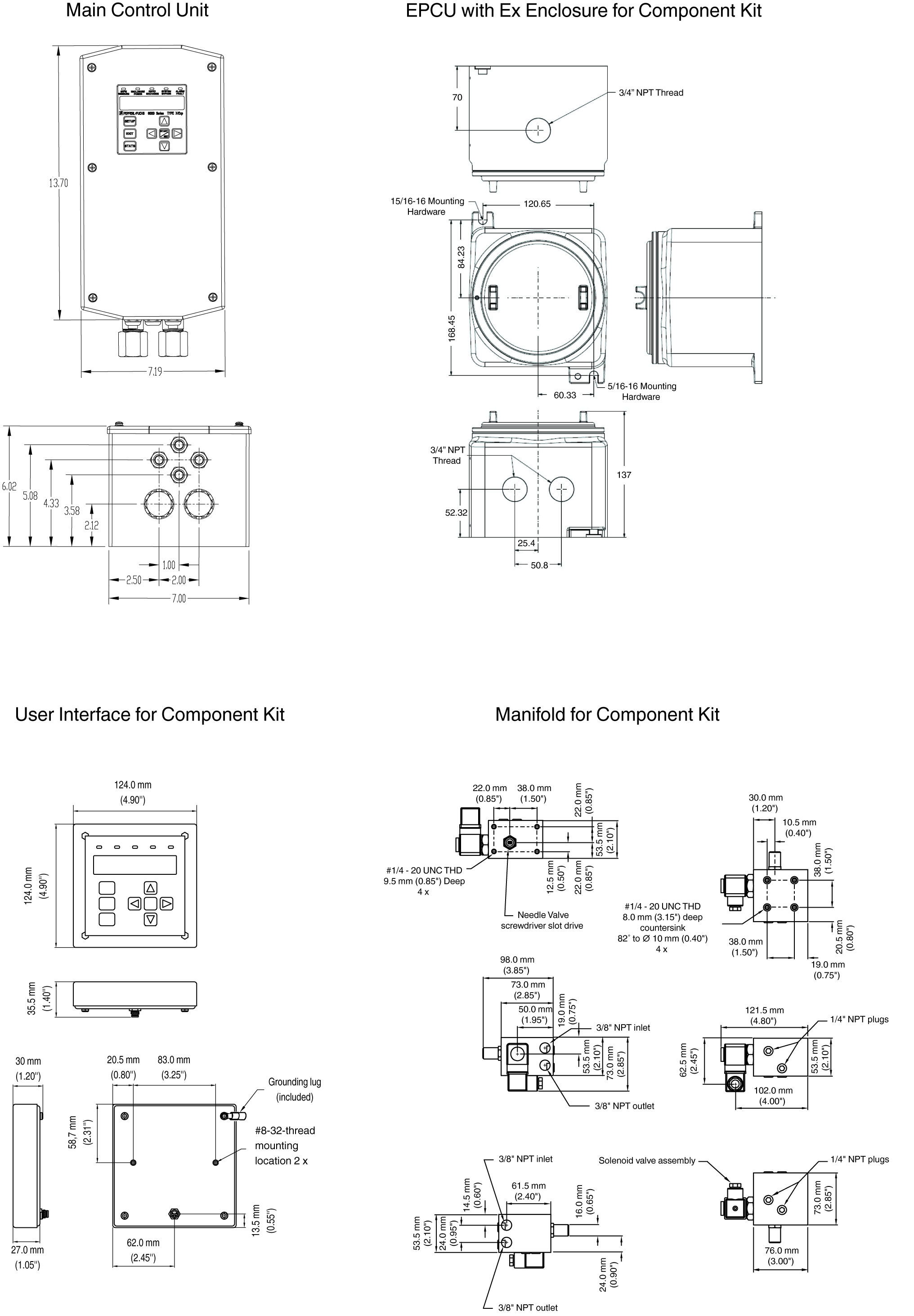

| Dimensions | 183 x 367.5 x 152.5 mm (7.20 x 14.45 x 6.00 inch) |
| Height367.5 mmWidth183 mmDepth152.5 mm | Height367.5 mmWidth183 mmDepth152.5 mm |
| Height | 367.5 mm |
| Width | 183 mm |
| Depth | 152.5 mm |
| EU-type examination certificate | EU-type examination certificate |
| Marking6000 main control unit with housing6000-xx-S2-UN-WH-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex db ib [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)II 2 D Ex ib tb [ib Db] [pxb Db] IIIC T60°C Db (-20 °C ≤ Ta ≤ 50 °C) 6000 main control unit kit version6000-xx-S2-UN-CK-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex db [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)II 2 D Ex tb [ib Db] [pxb Db] IIIC T80°C Db (-20 °C ≤ Ta ≤ 60 °C) User interface6000-UIC-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex ib [pxb Gb] IIC T4 Gb | Marking6000 main control unit with housing6000-xx-S2-UN-WH-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex db ib [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)II 2 D Ex ib tb [ib Db] [pxb Db] IIIC T60°C Db (-20 °C ≤ Ta ≤ 50 °C) 6000 main control unit kit version6000-xx-S2-UN-CK-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex db [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)II 2 D Ex tb [ib Db] [pxb Db] IIIC T80°C Db (-20 °C ≤ Ta ≤ 60 °C) User interface6000-UIC-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex ib [pxb Gb] IIC T4 Gb |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUIEC/EN 60079-0IEC/EN 60079-1IEC/EN 60079-2IEC/EN 60079-11IEC/EN 60079-31Directive 94/9/EC | Directive 2014/34/EUIEC/EN 60079-0IEC/EN 60079-1IEC/EN 60079-2IEC/EN 60079-11IEC/EN 60079-31Directive 94/9/EC |
| Marking | 6000 main control unit with housing6000-xx-S2-UN-WH-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex db ib [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)II 2 D Ex ib tb [ib Db] [pxb Db] IIIC T60°C Db (-20 °C ≤ Ta ≤ 50 °C) 6000 main control unit kit version6000-xx-S2-UN-CK-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex db [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)II 2 D Ex tb [ib Db] [pxb Db] IIIC T80°C Db (-20 °C ≤ Ta ≤ 60 °C) User interface6000-UIC-xx:ATEX UL/Demko 07 ATEX 0705753XII 2 G Ex ib [pxb Gb] IIC T4 Gb |
| Directive 2014/34/EU | IEC/EN 60079-0IEC/EN 60079-1IEC/EN 60079-2IEC/EN 60079-11IEC/EN 60079-31 |
| Directive 94/9/EC | Directive 94/9/EC |
| UL approval | 6000 Main control unit with housing6000-xx-S2-UN-WH-xx:cULusClass I, Division 1, Groups A,B,C,D T4 (-20 °C ≤ Ta ≤ 60 °C)Class II, Division 1, Groups E,F,G T4 (-20 °C ≤ Ta ≤ 50 °C)Class I, Zone 1, Group IIC T4 (-20 °C ≤ Ta ≤ 60 °C)Class II, Zone 21, Group IIIC T60 °C (-20 °C ≤ Ta ≤ 50 °C)[Ex i] Associated EquipmentEx db ib [ib Gb] [pxb Gb] IIC T4 (-20 °C ≤ Ta ≤ 60 °C)Ex ib tb [ib Db] [pxb Db] IIIC T4 (-20 °C ≤ Ta ≤ 50 °C) 6000 Main control unit kit version6000-xx-S2-UN-CK-xx:cULusClass I, Division 1, Groups A,B,C,D T4 (-20 °C ≤ Ta ≤ 60 °C)Class II, Division 1, Groups E,F,G T4 (-20 °C ≤ Ta ≤ 60 °C)Class I, Zone 1, Group IIC T4Class II, Zone 21, Group IIIC T60 °C[Ex i] Associated EquipmentEx db [ib Gb] [pxb Gb] IIC T4 X (-20 °C ≤ Ta ≤ 60 °C)Ex tb [ib Db] [pxb Db] IIIC T4 X (-20 °C ≤ Ta ≤ 60 °C) User interface6000-UIC-xx:cULus(-20 °C ≤ Ta ≤ 60 °C)Class I, Division 1, Groups A,B,C,D T4Class I, Zone 1, Group IIC T4Ex i Intrinsically safe |
| IECEx approval | 6000 Main Control unit with housing6000-xx-S2-UN-WH-xx:IECEx UL 08.0003XEx db ib [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)Ex ib tb [ib Db] [pxb Db] IIIC T60 °C Db (-20 °C ≤ Ta ≤ 50 °C) 6000 Main control unit kit version6000-xx-S2-UN-CK-xx:IECEx UL 08.0003XEx db [ib Gb] [pxb Gb] IIC T4 Gb (-20 °C ≤ Ta ≤ 60 °C)Ex tb [ib Db] [pxb Db] IIIC T80 °C Db (-20 °C ≤ Ta ≤ 60 °C) User interface6000-UIC-xx:IECEx UL 08.0003XEx ib [pxb Gb] IIC T4 Gb |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
