TECHNICAL DATA
规格参数
General specifications
| Series | 6000 Series |
|---|---|
| System | Type X Purge ; Ex pxb Purge |
| Ambient temperature | -60 ... 200 °C (-76 ... 392 °F) |
| Degree of protection | IP64 |
| Material | brass, nickel-plated |

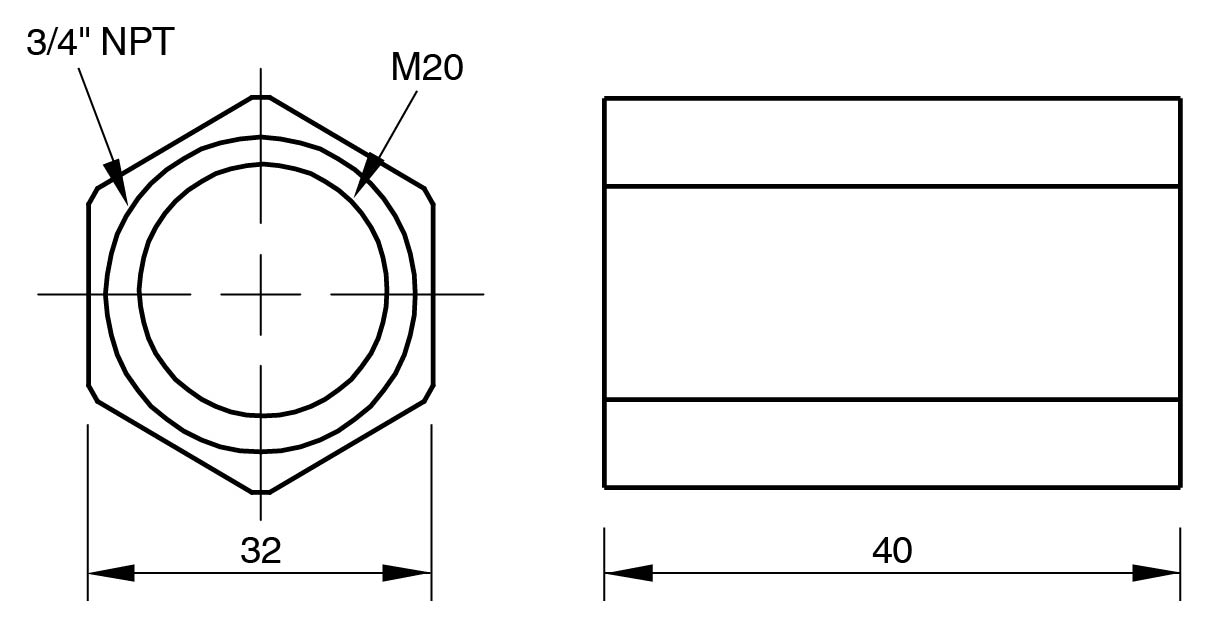

| Dimensions | 40 mm long x 32 mm across the flats |
| EU-type examination certificate | Sira 10ATEX1225XSira 00ATEX1073UIECEx SIR 09.084UGOST TC C-GB.06.B00105INMETRO NCC 12.0764U |
| MarkingExd I&IIc / Exe I&II / Ex tD A21 | MarkingExd I&IIc / Exe I&II / Ex tD A21 |
| Marking | Exd I&IIc / Exe I&II / Ex tD A21 |
