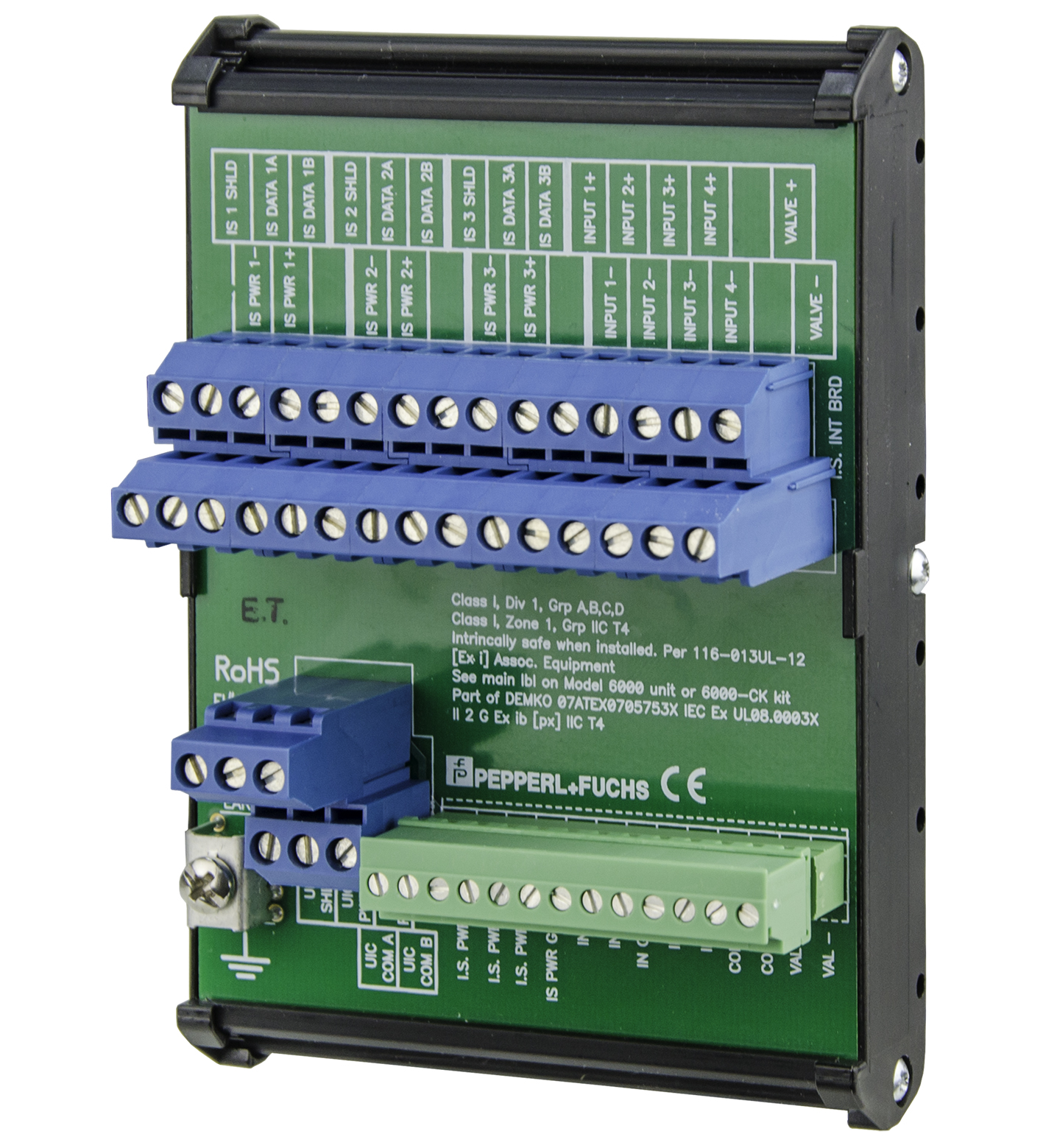

TECHNICAL DATA
规格参数
General specifications

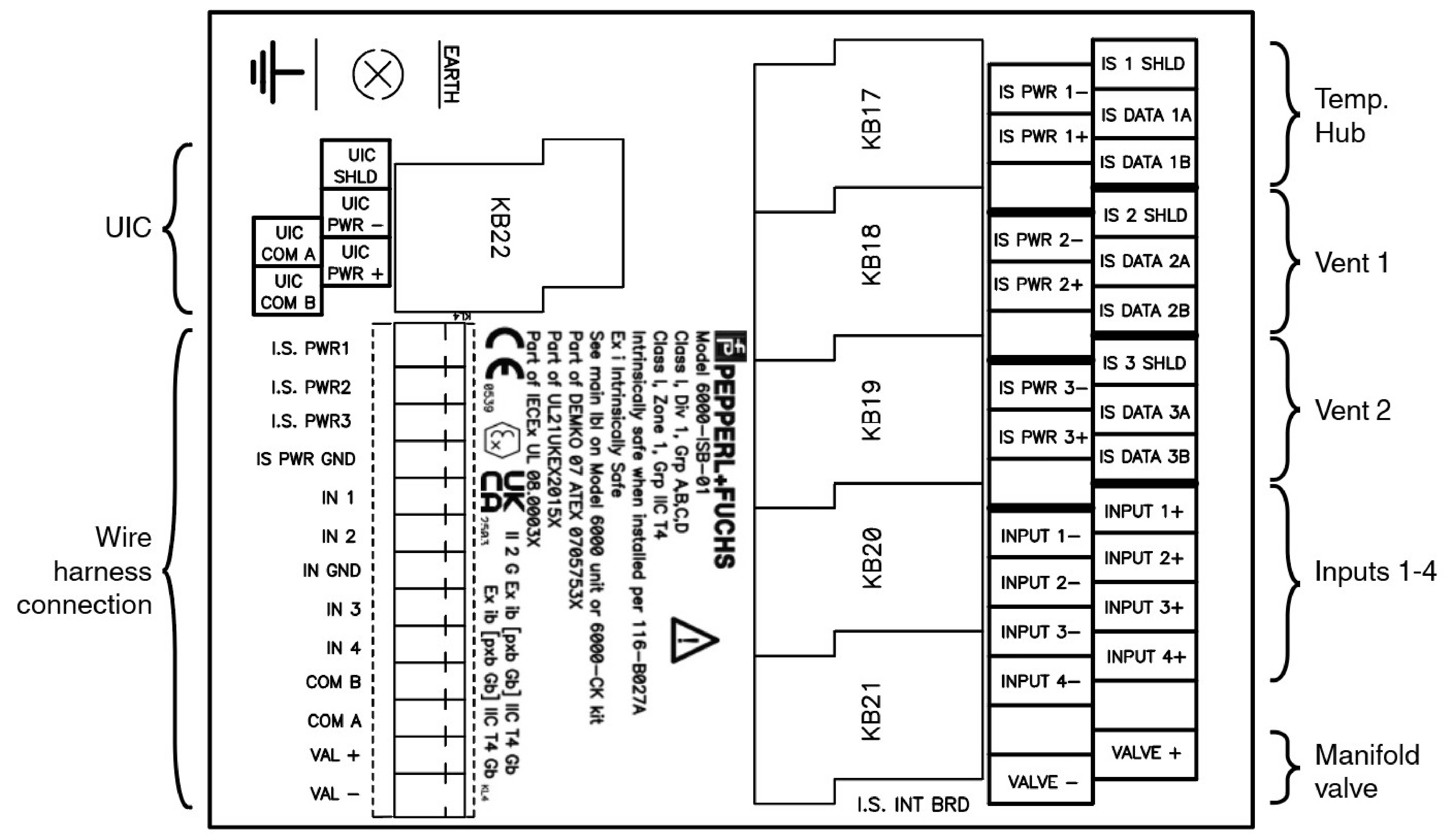

| Series | 6000 Series |
|---|---|
| System | Type X Purge ; Ex pxb Purge |
| Connection | Shield / ground: capacitively coupled to ground |
| Connection type | Screw Terminals Field devices: 0.13 - 2.08 mm² max (26 - 14 AWG) Torque 5-7 in-lb (0.6 to 0.8 Nm) Screw Terminals EPCU: 0.08 - 1.31 mm² (28 - 16 AWG) Torque 4 in-lb (0.5 Nm) |
| Degree of protection | IP20 |
| Terminal assembly | Terminal assembly |
| Terminal typeField connectionTerminal capacityMin: 24 AWG (0.2 mm2)Max: 12 AWG (3.3 mm2) | Terminal typeField connectionTerminal capacityMin: 24 AWG (0.2 mm2)Max: 12 AWG (3.3 mm2) |
| Mass | 800 g |
| Dimensions | 83 x 126 x 67 mm (3.3 inch x 5.0 inch x 2.6 inch) |
| Mounting | DIN rail mounting , 2 mounting clips |
| Terminal type | Field connection |
| Terminal capacity | Min: 24 AWG (0.2 mm2)Max: 12 AWG (3.3 mm2) |
| System information | Must be used with 6000 series purge system to meet certification requirements. |
