TECHNICAL DATA
规格参数
General specifications
| Series | 6000 Series |
|---|---|
| System | Type X Purge ; Ex pxb Purge |
| Connection | Connection |
| PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionIntrinsically Safe cabeling | PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionIntrinsically Safe cabeling |
| Rated voltage | 13 V DC |
| Rated current | max. 10 mA |
| Distance | 20 m to 6000 Control Unit |
| Power | Intrinsically Safe back to 6000 control unit |
| Signal | BUS back to 6000 control unit |
| Connection | Intrinsically Safe cabeling |
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Vibration resistance | 1 g , 10 ... 100 Hz , all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Connection type | screw terminals |
| Core cross section | 12 ... 30 AWG |
| Housing material | Akulon S225-KS |
| Degree of protection | IP20 |
| Mass | approx. 110 g |

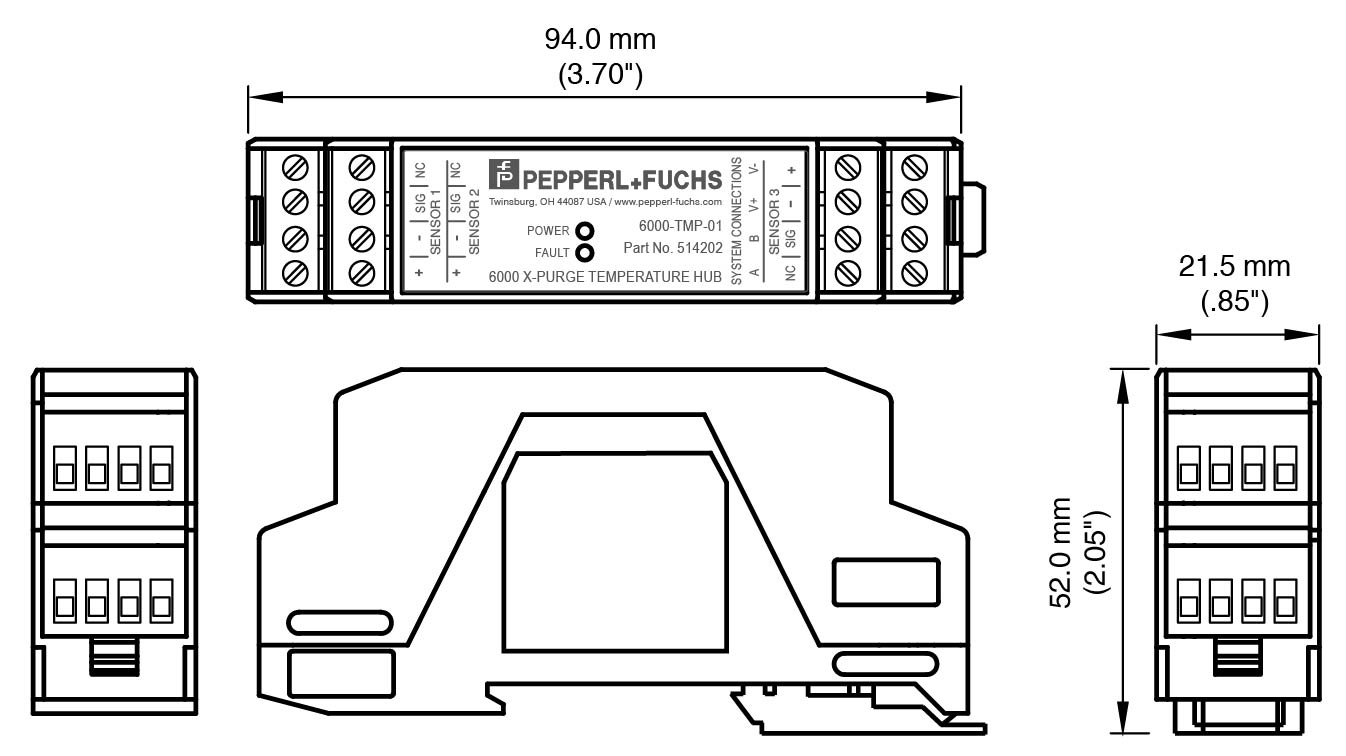

| Dimensions | 99 mm x 52 mm x 23 mm |
| Mounting | panel or DIN rail mounting |
| EU-type examination certificate | UL/Demko 07 ATEX 0705753X |
| UL approval | File no: E184741 |
| cULusFile no: E184741 | cULusFile no: E184741 |
| IECEx approval | IECEx UL 08.0003X |
| cULus | File no: E184741 |
