TECHNICAL DATA
规格参数
General specifications
| Series | 6000 Series |
|---|---|
| System | Type X Purge ; Ex pxb Purge |
| Connection | Connection |
| Power+ , - , sensors | Power+ , - , sensors |
| Rated voltage | 5.5 V DC |
| Rated current | max. 10 mA |
| Open loop voltage | 9.6 V |
| Distance | 3 m from 6000 control unit 3 m from 6000-TEMP-01 |
| Power | + , - , sensors |
| Ambient temperature | -20 ... 100 °C (-4 ... 212 °F) |
| Storage temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Relative humidity | < 95 % non-condensing |
| Vibration resistance | 1 g , 10 ... 100 Hz , all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Housing material | Ryton BR III BL |
| Degree of protection | IP65 |
| Cable | Gray PVC |
| Diameter5.03 mm2Wire gauge22 AWG | Diameter5.03 mm2Wire gauge22 AWG |
| Mass | approx. 110 g |

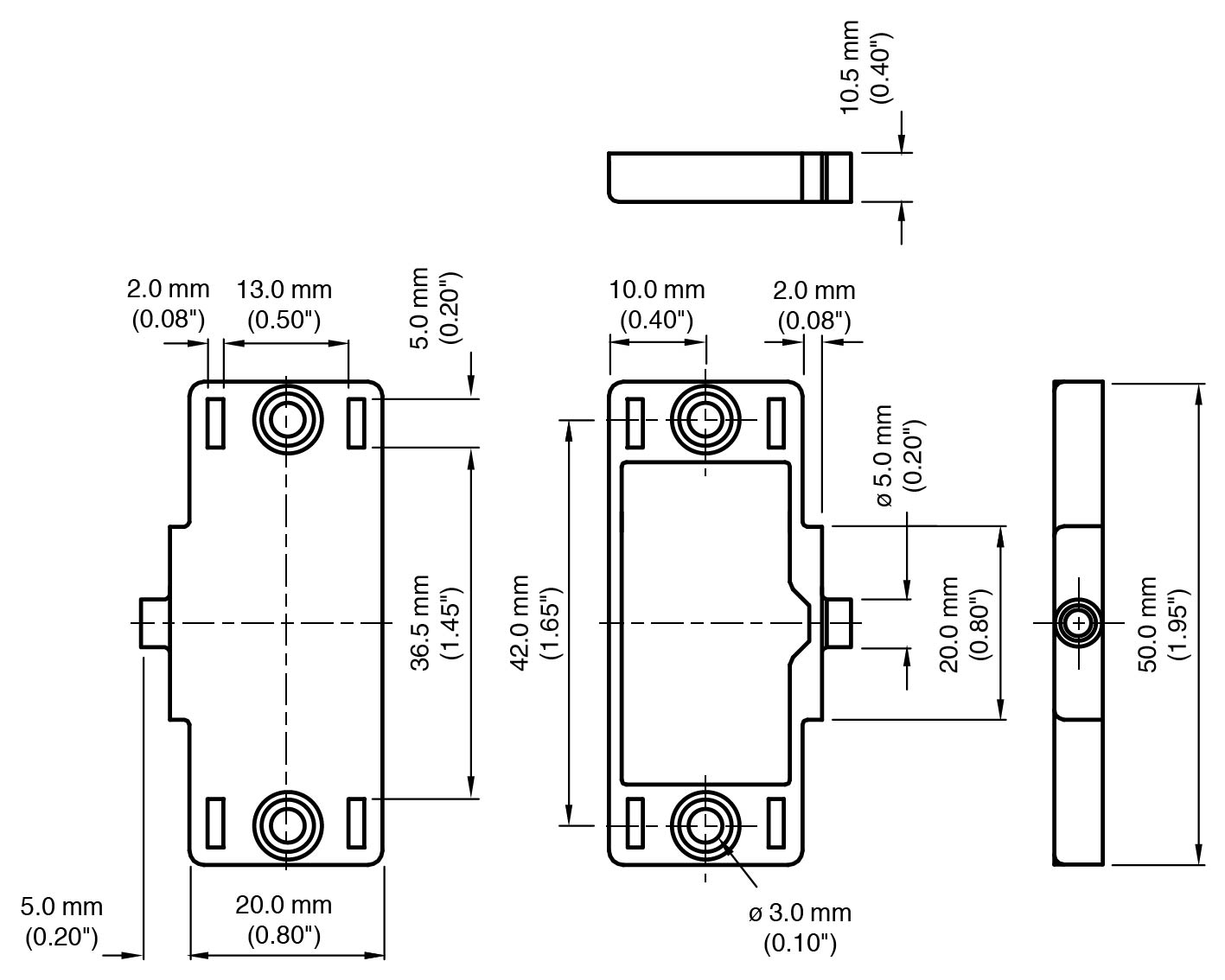

| Dimensions | 50 mm x 25 mm x 5 mm |
| Mounting | panel or DIN rail mounting |
| Diameter | 5.03 mm2 |
| Wire gauge | 22 AWG |
| EU-type examination certificate | UL/Demko 07 ATEX 0705753X |
| UL approval | File no: E184741 |
| cULusFile no: E184741 | cULusFile no: E184741 |
| IECEx approval | IECEx UL 08.0003X |
| cULus | File no: E184741 |
