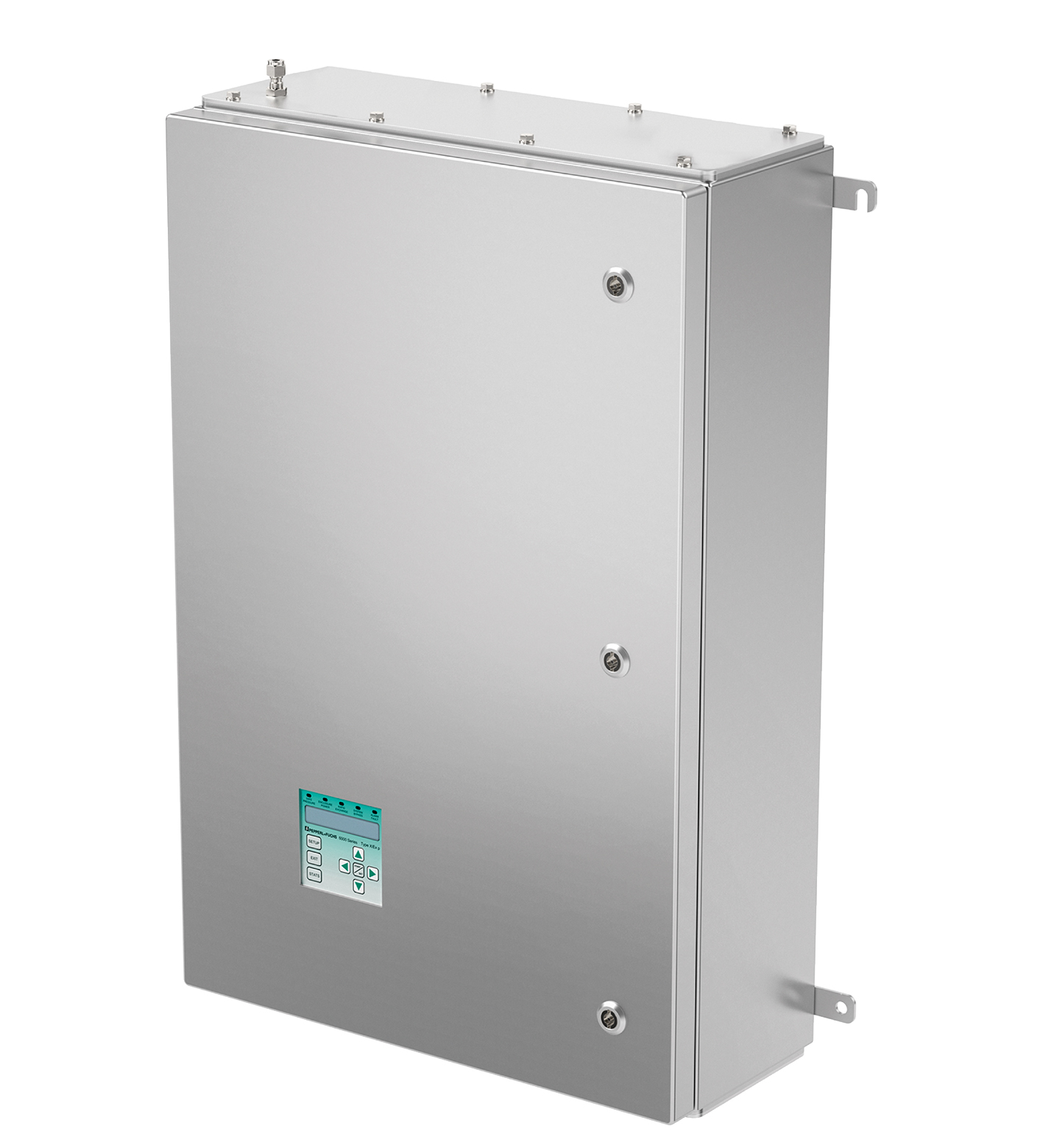

产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
General specifications
| Operating mode | manual, semi-automatic, or fully automatic - programmable |
|---|---|
| Series | 6100 Series |
| System | Ex pxb Purge |
| Number of volume exchanges | 4 to 19 |
| Hazardous environment | gas |
| Rated voltage | 100 ... 250 V AC, 50 ... 60 Hz / 0.2 A 20 ... 30 V DC / 0.6 A |
| Connection | Connection |
| PowerEx e terminal blocksConnection6000-ISB DIN mounted terminal | PowerEx e terminal blocksConnection6000-ISB DIN mounted terminal |
| Power | Ex e terminal blocks |
| Connection | 6000-ISB DIN mounted terminal |
| Input type | IS 1: Dedicated for 6000-TEMP-01 (optional)IS 2: Dedicated for 6100-MP-LPPInput 1: SRM, discrete input, Intrinsically SafeInput 2: SRM, discrete input, Intrinsically SafeInput 3: Dedicated for EPV-6100-MP, Flow SignalInput 4: Dedicated high pressure switch, Max Pressure Signal (optional) |
| Output I | AUX 1 |
| Output typeDry contacts, SPDTInrush current5 AContact loading2 A at 240 V AC resistive load 2 A at 24 V DC | Output typeDry contacts, SPDTInrush current5 AContact loading2 A at 240 V AC resistive load 2 A at 24 V DC |
| Output II | AUX 2 |
| Output typeDry contacts, SPDTInrush current5 AContact loading2 A at 240 V AC resistive load 2 A at 24 V DC | Output typeDry contacts, SPDTInrush current5 AContact loading2 A at 240 V AC resistive load 2 A at 24 V DC |
| Output III | enclosure 1 and 2 |
| Output typeDry contacts (2) SPST, NOInrush current72 AContact loading8 A at 240 V AC / 120 V AC resistive load 8 A at 24 V DC | Output typeDry contacts (2) SPST, NOInrush current72 AContact loading8 A at 240 V AC / 120 V AC resistive load 8 A at 24 V DC |
| Output type | Dry contacts, SPDT |
| Inrush current | 5 A |
| Contact loading | 2 A at 240 V AC resistive load 2 A at 24 V DC |
| Output type | Dry contacts, SPDT |
| Inrush current | 5 A |
| Contact loading | 2 A at 240 V AC resistive load 2 A at 24 V DC |
| Output type | Dry contacts (2) SPST, NO |
| Inrush current | 72 A |
| Contact loading | 8 A at 240 V AC / 120 V AC resistive load 8 A at 24 V DC |
| LED indication | Safe pressure: Blue - safe pressure is achieved Enclosure power: Green - power on; Red - power off Rapid exchange: Blue - purging is running System bypass: Yellow - bypass is activated Alarm fault: Red (blinking) - any alarm input detected; Red (solid) - fault |
| Protective gas supply | regulated and filtered air or inert gas |
| Pressure requirement | regulated side: 1.4 ... 8.3 bar [20 ... 120 psig) unregulated side: 4.1 ... 8.3 bar [65 ... 120 psig) |
| Safe pressure | 0.62 mbar [0.25 in wc / 6.4 mm wc] minimum for 6100-MP-LPP-* |
| Purge flow and enclosure pressure rate | 2000 l/m ... 14000 l/m see EPV-6100 datasheet for flow rate steps |
| Valve flows | pressurization valve: manual gate valvepurging valve: pilot drive angle seat valvepilot valve: intrinsically safe solenoid valve |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012 | Directive 2011/65/EU (RoHS)EN 50581:2012 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012 |
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) Standard version-20 ... 60 °C (-4 ... 140 °F) Low temp version, no regulator version |
| Storage temperature | 0 ... 80 °C (32 ... 176 °F) Standard version -20 ... 80 °C (-4 ... 176 °F) Low temp version, no regulator version |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | 1 g , 10 ... 150 Hz , all axes |
| Impact resistance | 15 g, 11 ms, all axes |
| Connection type | Terminals |
| Core cross section | see manual |
| Degree of protection | IP66 |
| Cable entry | 3 x M16 holes, plugs that are included are not hazardous-location rated 4 x M20 holes, plugs that are included are not hazardous-location rated |
| Material | inlet and outlet: 1¼ inch NPTF, 316 stainless steelinternal piping: copper bulkhead fittings: 316 stainless steel (no regulator model) gate valve: bronze, Grafoil seals purging valve: 316 stainless steel, PTFE sealssolenoid valve: brasshousing: 316L stainless steelregulator: zinc (standard temp); aluminum (low temp); N/A (no regulator)filter (pneumatic): aluminumtubing (pneumatic): nylonfittings (pneumatic): nickel-plated brass |
| Mass | 47.2 kg (104 lb) |

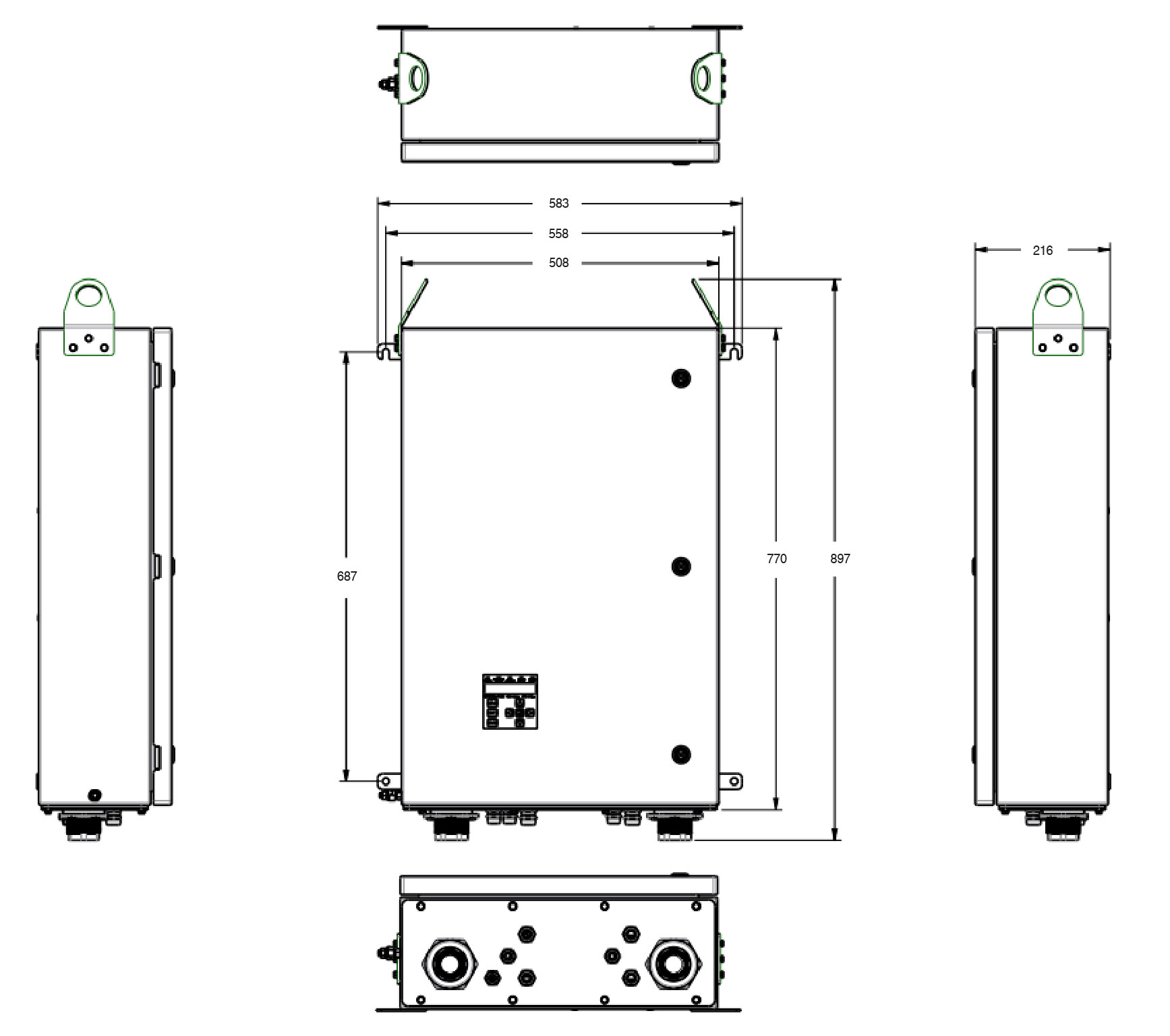

| Dimensions | 897 mm x 583 mm x 216 mm (35.3 in x 23.0 in x 8.5 in) |
| Height897 mm (including lifting tabs at the top and the connection ports at the bottom)Width583 mm (including the mounting brackets)Depth216 mm | Height897 mm (including lifting tabs at the top and the connection ports at the bottom)Width583 mm (including the mounting brackets)Depth216 mm |
| Height | 897 mm (including lifting tabs at the top and the connection ports at the bottom) |
| Width | 583 mm (including the mounting brackets) |
| Depth | 216 mm |
| Certificate | CML 19 ATEX 1425X |
| Marking II 2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb | Marking II 2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012 |
| Marking | II 2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
| Directive 2014/34/EU | EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012 |
| IECEx approval | IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010 |
