6100-MP-LPP-*

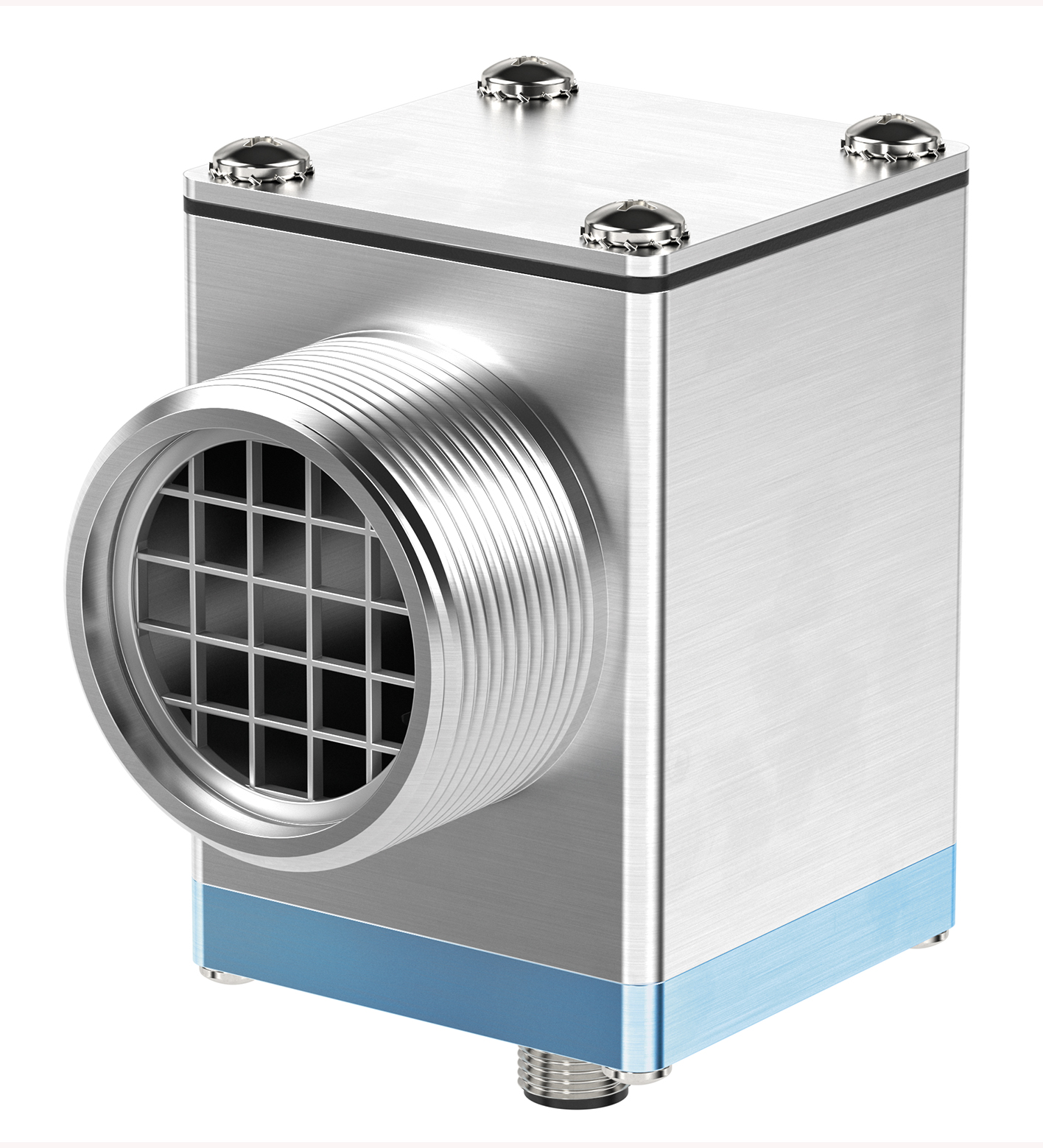

6100-MP-LPP-* 6100 series pressure sensor

订货号: T192018
产品分类: Ex [pxb] 认证正压系统

6100 series purge and pressurization system pressure sensor

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Series	6100 Series
System	Ex pxb Purge
Hazardous environment	gas
Connection	Connection
PowerIntrinsically safe connection to the 6100 control unitSignalBus connection to 6100 control unitConnectionM12 connector, 4-pin, max length 30 m	PowerIntrinsically safe connection to the 6100 control unitSignalBus connection to 6100 control unitConnectionM12 connector, 4-pin, max length 30 m
Power	Intrinsically safe connection to the 6100 control unit
Signal	Bus connection to 6100 control unit
Connection	M12 connector, 4-pin, max length 30 m
LED indication	power: green
Maximum pressure	0 ... 25 mbar (0 ... 10 in wc) pressure range
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN IEC 63000:2018	Directive 2011/65/EU (RoHS)EN IEC 63000:2018
Directive 2014/30/EU	EN 61326-1:2013
Directive 2011/65/EU (RoHS)	EN IEC 63000:2018
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-30 ... 80 °C (-22 ... 176 °F)
Relative humidity	5 ... 95 %, non-condensing
Vibration resistance	10 ... 100 Hz , 1 g, all axes
Impact resistance	30 g, 11 ms, all axes
Material	5052 anodized aluminum, 6061T6 anodized aluminum
Installation	- any orientation to enclosure- not gravity dependent
Mass	approx. 0.5 kg (1.1 lb)

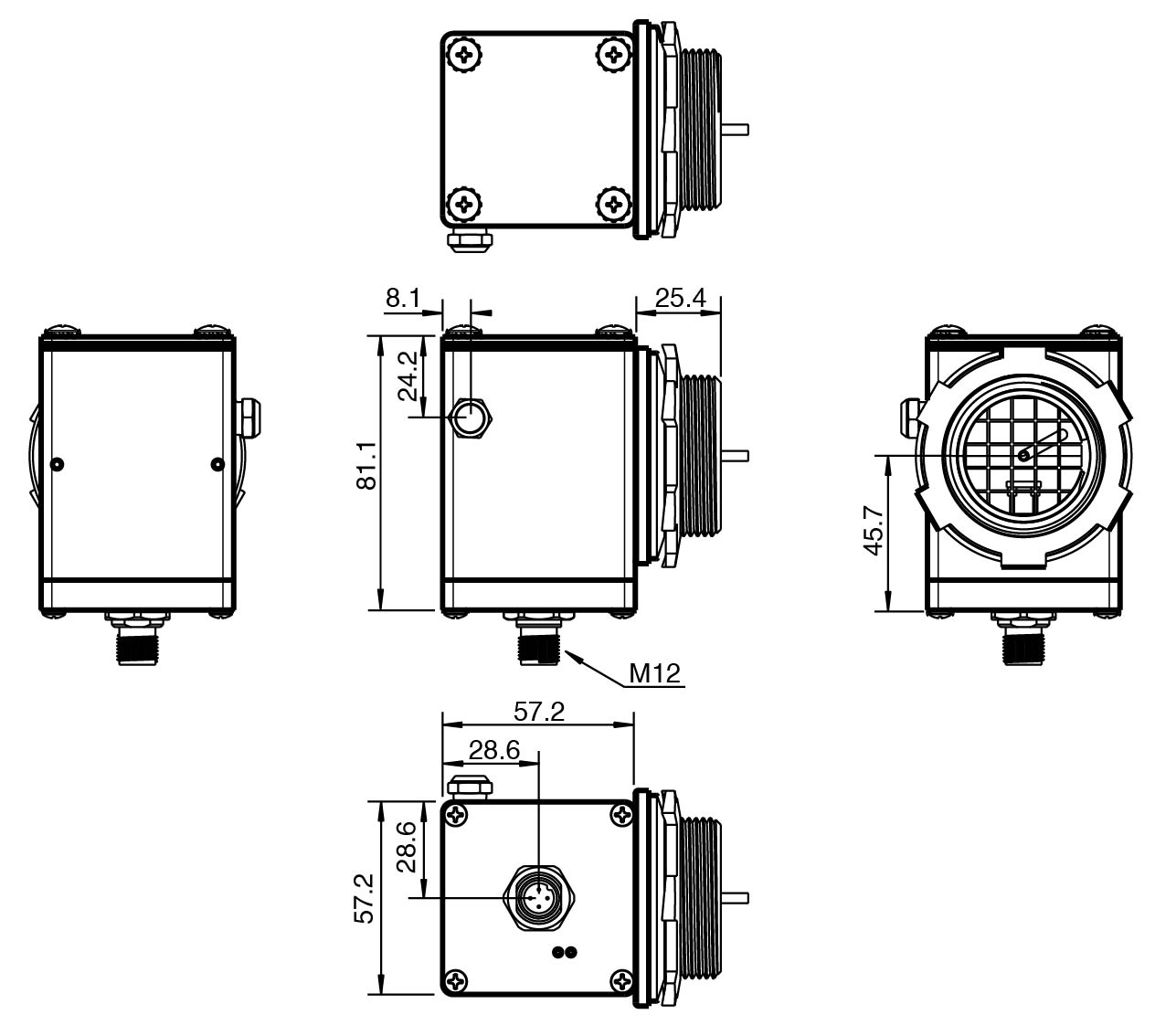

Dimensions	57.2 mm x 81.1 mm x 82.6 mm (2.3" x 3.2" x 3.3")
Height146 mmWidth127.5 mmDepth82.5 mm	Height146 mmWidth127.5 mmDepth82.5 mm
Mounting	1 1/2" NPT knockout (50.8 mm (2") hole) with sealing washer and nut
Height	146 mm
Width	127.5 mm
Depth	82.5 mm
Certificate	CML 19 ATEX 1425X
Marking II 2 G Ex ib [pxb Gb] IIC T4 Gb	Marking II 2 G Ex ib [pxb Gb] IIC T4 Gb
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012
Marking	II 2 G Ex ib [pxb Gb] IIC T4 Gb
Directive 2014/34/EU	EN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012
IECEx approval	IECEx CML 19.0156X Ex ib [pxb Gb] IIC T4 Gb
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
