TECHNICAL DATA
规格参数
General specifications

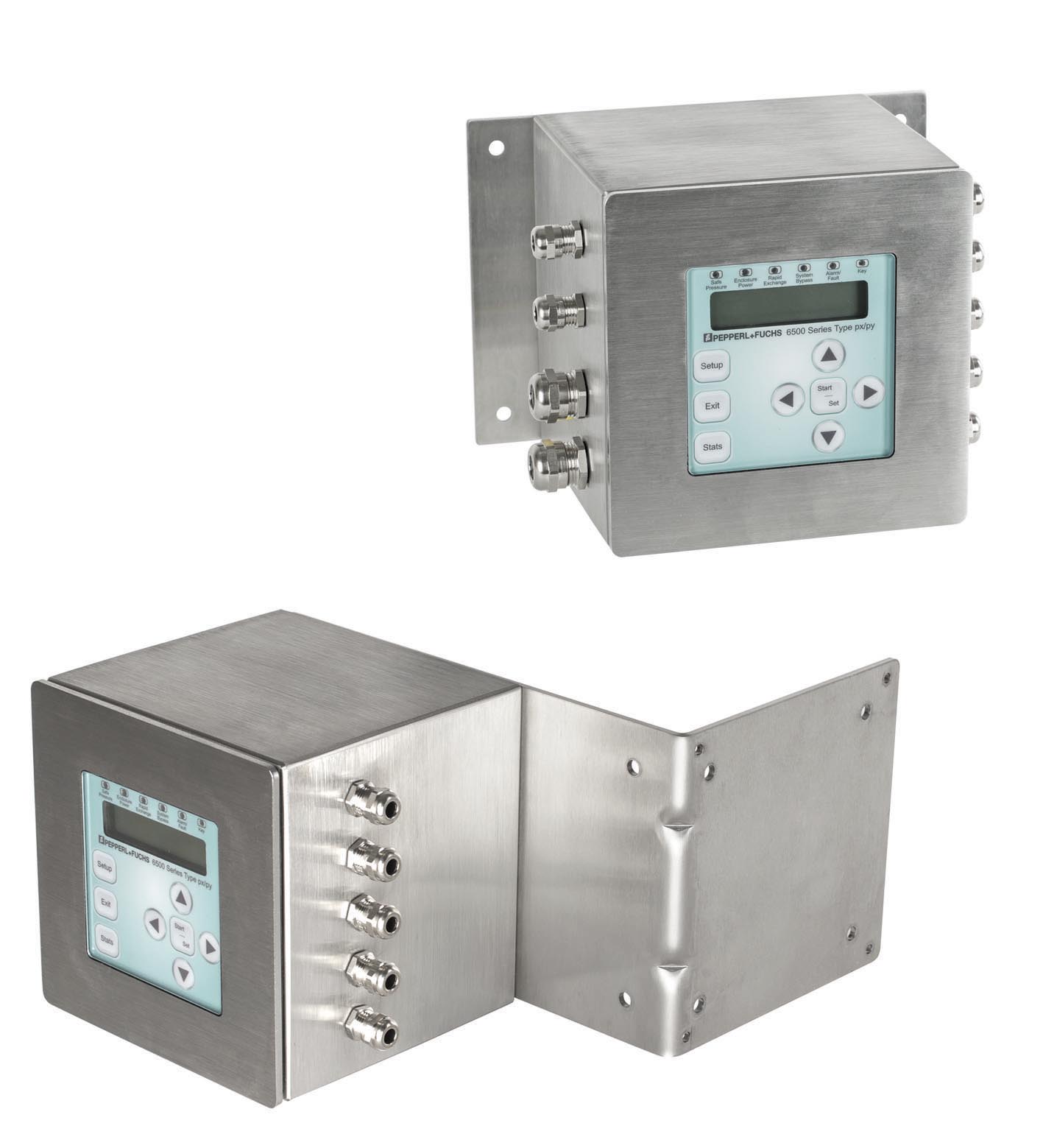

| Operating mode | For mounting 6500 control unit to enclosure or back panel |
|---|---|
| Series | 6500 |
| System | Ex pxb Purge , Ex pyb Purge |
| Material | Bracket: 316/316L stainless steelMounting bolts (bracket to enclosure): (4) M6, 316 stainless steel (included)Sealing washers: (4) silicon rubber (included)Mounting bolts (EPCU to bracket): (1) M4x0.7, 316 stainless steel (included) |
| Mass | 6500-01-EXT1-BKT01: 1.8 kg 6500-01-INT1-BKT01: 2 kg |

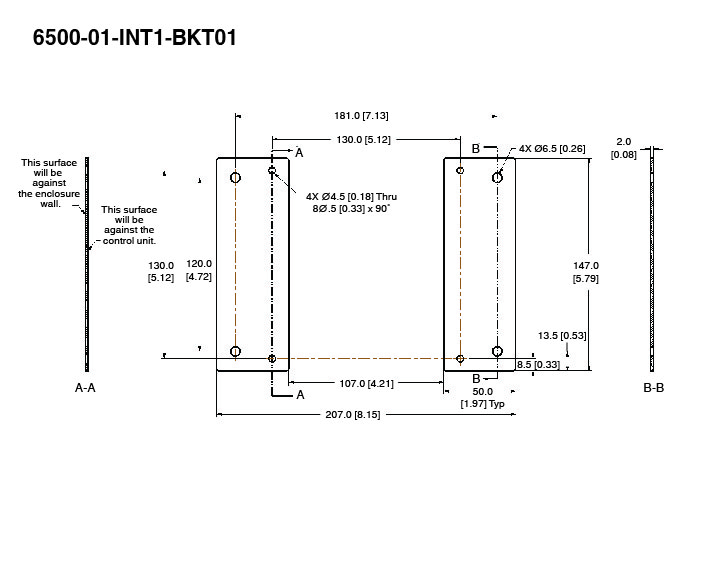

| Dimensions | see dimension drawing |
| Scope of delivery | Two (2) brackets included for each 6500-01-INT1-BKT01. Mounting hardware also included. |
