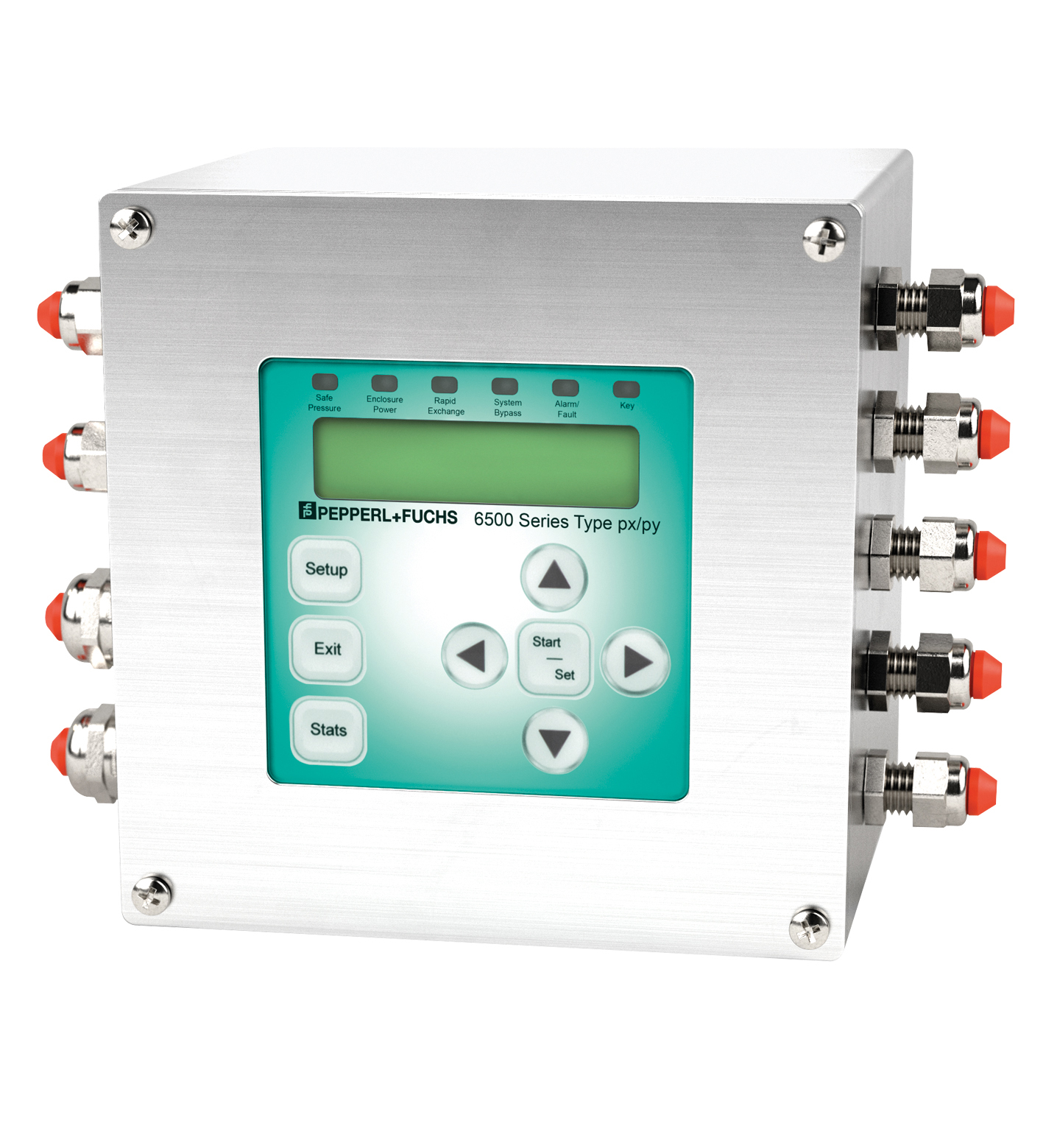

General specifications
| Operating mode | user programmable |
|---|---|
| Series | 6500 |
| System | Ex pxb Purge , Ex pyb Purge |
| Number of volume exchanges | 5 to 19 |
| Hazardous environment | gas, dust, gas and dust |
| Safety Integrity Level (SIL) | SIL 2 |
| Rated voltage | 100 ... 240 V AC, 48 ... 62 Hz / 0.2 A 20 ... 30 V DC |
| Connection | EPCU: Terminal blocks and grounding screwUIC: 4-pin conncector and cable (provided), for the 6500-01-PM02, cable length is 5 metersInput type: intrinsically safe |
| Physical | Bluetooth® 4.1 |
| Transmitter frequency | 2.4 ... 2.4835 GHz |
| Transmitter radiated power | -19 ... 7.5 dBm |
| Sensitivity | -92.5 dBm at 0.1 % BER |
| Detection range | 100 m in air |
| Antenna | PCB |
| Bluetooth | declaration ID: D037849 |
| Input I | Voltage free contact or namur proximity sensor |
| Input typeIntrinsically Safe, Ex ib | Input typeIntrinsically Safe, Ex ib |
| Input II | (1) 2-wire, PT100 RTD |
| Input typeIntrinsically Safe, Ex ib | Input typeIntrinsically Safe, Ex ib |
| Input type | Intrinsically Safe, Ex ib |
| Input type | Intrinsically Safe, Ex ib |
| Output I | AUX |
| Output typeVoltage free contact outputs, SPDT configurationInrush current2 AContact loading2 A @ 240VAC, resistive, 2 A @ 24VDC | Output typeVoltage free contact outputs, SPDT configurationInrush current2 AContact loading2 A @ 240VAC, resistive, 2 A @ 24VDC |
| Output II | Enclosure |
| Output typeVoltage free contact outputs, 2 N.O. configurationInrush current8 AContact loading8A @ 240 V AC, resistive up to 60 °C 8A @ 24 V DC up to 60 °C 5A @ 240 V AC, resistive, 60 to 70 °C 5A @ 24 V DC up to 60 to 70 °CFuseExternal fusing is required at no more than 11 amps/1500 A breaking current | Output typeVoltage free contact outputs, 2 N.O. configurationInrush current8 AContact loading8A @ 240 V AC, resistive up to 60 °C 8A @ 24 V DC up to 60 °C 5A @ 240 V AC, resistive, 60 to 70 °C 5A @ 24 V DC up to 60 to 70 °CFuseExternal fusing is required at no more than 11 amps/1500 A breaking current |
| Output III | Digital valve When used with the 6500-MAN-DV-01, intrinsically safe Internal resistance 280 Ω |
| Output IV | Proportional valveWhen used with the 6500-MAN-PV-01, intrinsically safeCurrent: 4 to 20 mAMax. load: 300 Ω |
| Communication | HART via RS485 (PACTware available) |
| Output type | Voltage free contact outputs, SPDT configuration |
| Inrush current | 2 A |
| Contact loading | 2 A @ 240VAC, resistive, 2 A @ 24VDC |
| Output type | Voltage free contact outputs, 2 N.O. configuration |
| Inrush current | 8 A |
| Contact loading | 8A @ 240 V AC, resistive up to 60 °C 8A @ 24 V DC up to 60 °C 5A @ 240 V AC, resistive, 60 to 70 °C 5A @ 24 V DC up to 60 to 70 °C |
| Fuse | External fusing is required at no more than 11 amps/1500 A breaking current |
| Display elements | 2x20 LCD for configuration, monitoring, and status of the 65000 system with back light and contrast selection. Capacitive touch buttons |
| LED indication | Safe pressure: Blue - safe pressure is achieved Enclosure power: Green - power on; Red - power off Rapid exchange: Blue - purging is running System bypass: Yellow - bypass is activated Alarm fault: Red (blinking) - any alarm input detected; Red (solid) - 6000 series system fault Key: green - a button on the capacitive touch display has been activated. Momentary indication |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | For 6500-MAN-DV: 1.4 to 8.3 bar (20 to 120 psig) regulatedFor 6500-MAN-PV: 3.5 to 6.9 bar (50 to 100 psig) regulatedNote: max. pressure will depend on the vent model used. |
| Safe pressure | Gas: 0.82 mbar (0.33 in wc) Dust: 0.82 mbar (0.33 in wc) Gas+Dust: 0.82 mbar (0.33 in wc) |
| Valve flows | Standard vent series: EPV-6500-*-01, 03, 05Readout on display is from 56 to 850 l/min (2 to 30 scfm) in increments of 28l/min (1 scfm).Minimum and maximum reading depending on type of vent and supply pressure.See datasheet for EPV-6500 series vent. Continuous (Dilution) vent series: EPV-6500-*-07, 08Readout on display is from 17 to 226 l/min (0.6 to 8 scfm) continuous reading.Maximum reading depending on type of vent and supply pressure.See datasheet for EPV-6500 series vent. |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 5 ... 85 %, non-condensing |
| Vibration resistance | 5 ... 100 Hz , 1 g, 12 m/s2, all axes |
| Impact resistance | 30 g, 11 ms, all axes |
| Connection type | See mounting in 6500 manual and cable gland requirements |
| Cable gland | Cable gland requirement: cable glands are not included. Customer can supply their own approved glands or use one of the 6500-CBLG-... cable gland kits.I.S.cable glands: requires (5) M12 approved cable glandsPower cable glands: requires (2) M16 and (2) M12 approved cable glands |
| Degree of protection | IP66 |
| Material | UIC display: Makrolon FI cover and A380 Aluminum anodized casingHousing: 316L stainless steelHardware: 316L stainless steel |
| Mass | approx. 5 kg (11.0 lbs) |

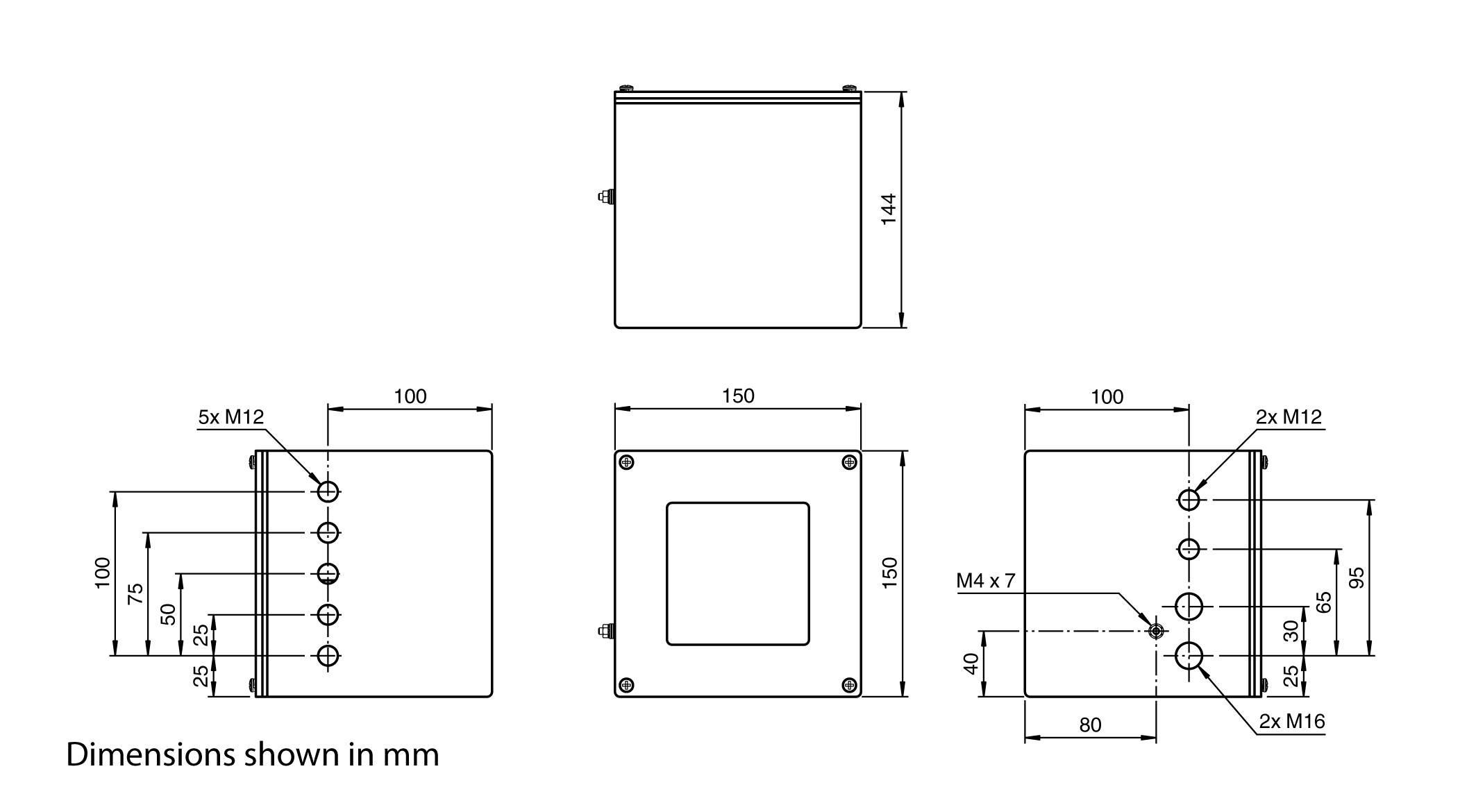

| Dimensions | 6500-01-EXT1: 150 x 150 x 145 mm (5.9" x 5.9" x 5.7") 6500-01-PM01: 150 x 150 x 185 mm (5.9" x 5.9" x 7.3") 6500-01-PM02: EPCU: 150 x 150 x 145 mm (5.9" x 5.9" x 5.7"), UIC: 150 x 150 x 45 mm (5.9" x 5.9" x 1.8") |
| Height367.5 mmWidth183 mmDepth152.5 mm | Height367.5 mmWidth183 mmDepth152.5 mm |
| Height | 367.5 mm |
| Width | 183 mm |
| Depth | 152.5 mm |
| Certificate | DEMKO 16 ATEX 1640X |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-5:2015 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-31:2014 | Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-5:2015 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-31:2014 |
| Directive 2014/34/EU | EN IEC 60079-0:2018 , EN 60079-2:2014 , EN 60079-5:2015 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-31:2014 |
| IECEx approval | IECEx UL 16.0003X |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
