TECHNICAL DATA
规格参数
General specifications
| Operating mode | automatic purging + pressurization |
|---|---|
| Series | 6500 |
| System | Ex pxb Purge , Ex pyb Purge |
| Hazardous environment | gas or dust |
| Rated power | Intrinsically safe supply from the 6500 control unit |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 1.4 (20 psig) to 8.3 bar (120 psig) |
| Safe pressure | Gas: 0.87 mbar (0.35'' wc) Dust: 0.87 mbar (0.35'' wc) Gas+Dust: 0.87 mbar (0.35'' wc) |
| Purge flow rate | Digital valve : Cv (flow coefficient) = 1.4 |
| Connections | Inlet and outlet of valves3/8"NPT, double ferrule 10mm compression fittings (included) |
| Ambient temperature | -28 ... 50 °C (-18.4 ... 122 °F) |
| Storage temperature | -28 ... 50 °C (-18.4 ... 122 °F) |
| Connection type | 10 mm stainless steel ferrule tube fittings |
| Cable gland | I.S. connection type: PG9, DIN 43650-A connector |
| Degree of protection | IP65 (DIN connector) |
| Material | Housing: marine-grade aluminum (6082-T6 or 6061-T6)3/8" compression fittings: 316L stainless steelPressure ports: 3/8" NPT to 10mmBulkhead fitting: 10 mm fitting, 316L stainless steelMounting bolts: 1/4 - 20 (-20 =Threads per Inch), 316 stainless steelSealing washers: silicone rubberInput/Output ports: 10 mm tube compression fittings |
| Mass | 907 g (2.0 lbs) |

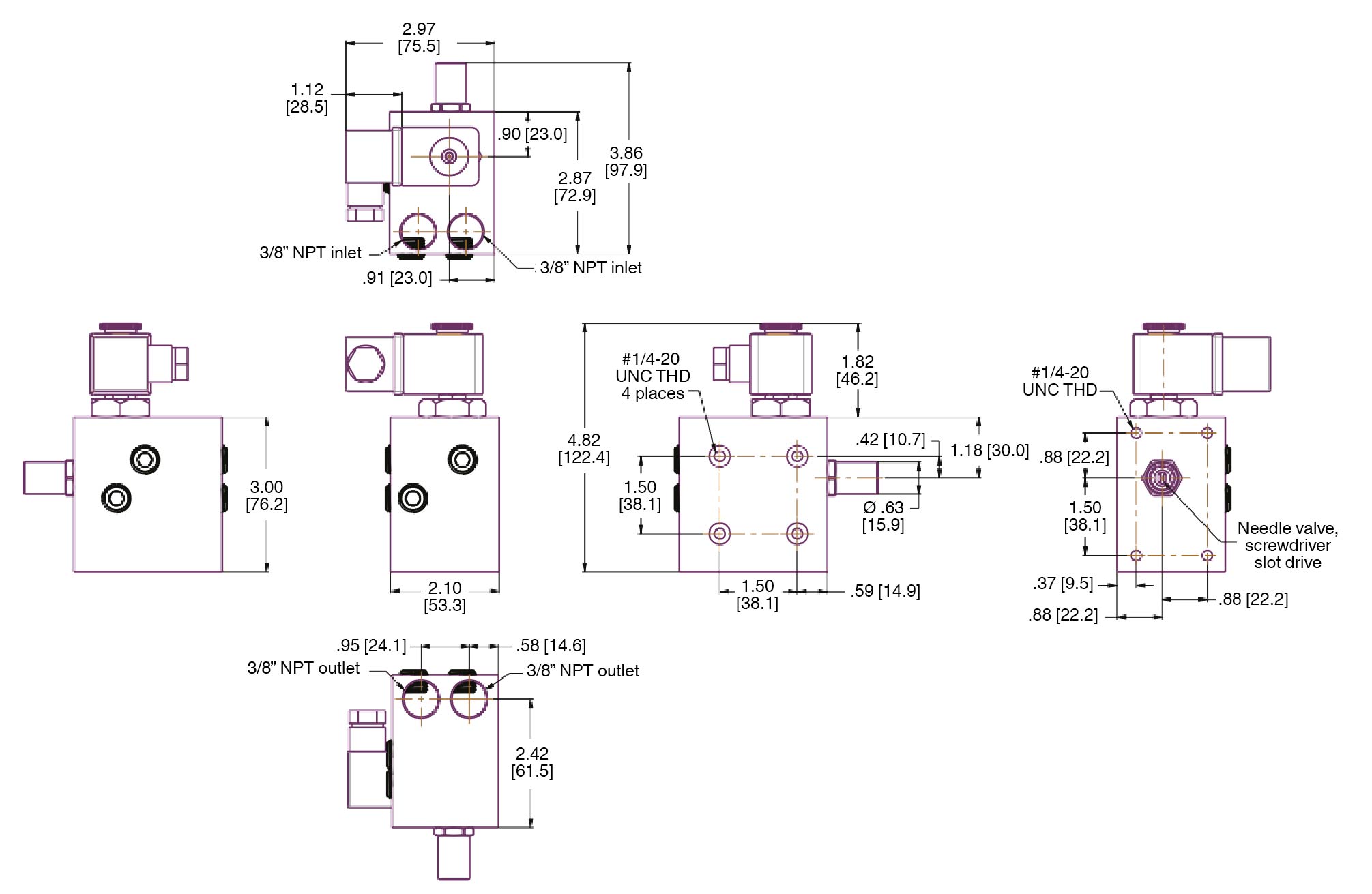

| Dimensions | 75.5 x 97.9 x 122.4 mm (2.97'' x 3.86'' x 4.82'') |
