TECHNICAL DATA
规格参数
General specifications
| Operating mode | automatic purging + pressurization |
|---|---|
| Series | 6500 |
| System | Ex pxb Purge , Ex pyb Purge |
| Supply | I.S. 4 to 20 mA loop poweredEntity Parameters:Ui = 30 VIi = 200 mAC = μSL = 0 μHP1 = 1 w total |
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 1.0 bar (15 psi) to 8.3 bar (120 psi) |
| Safe pressure | Gas: 0.35'' wc (8,88 mm wc) (0.88 mbar/ 88 pa) Dust: 0.35'' wc (8,88 mm wc) (0.88 mbar/ 88 pa) Gas+Dust: 0.35'' wc (8,88 mm wc) (0.88 mbar/ 88 pa) |
| Valve flows | 6500-MAN-PV: Proportional valvePurging/pressurization/dilution: 17 l/min to 226 l/min (0.6 to 8 scfm) |
| Connections | Inlet and outlet of valves6500-MAN-PV-01: 3/8"NPT, double ferrule 10mm compression fittings (included) |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Connection type | 10 mm stainless steel ferrule tube fittings |
| Cable gland | I.S. connection: Hirschmann DIN 43650-A connector |
| Degree of protection | IP65 (DIN connector) |
| Material | painted aluminum body |
| Mass | 700 g (1.5 lbs) |

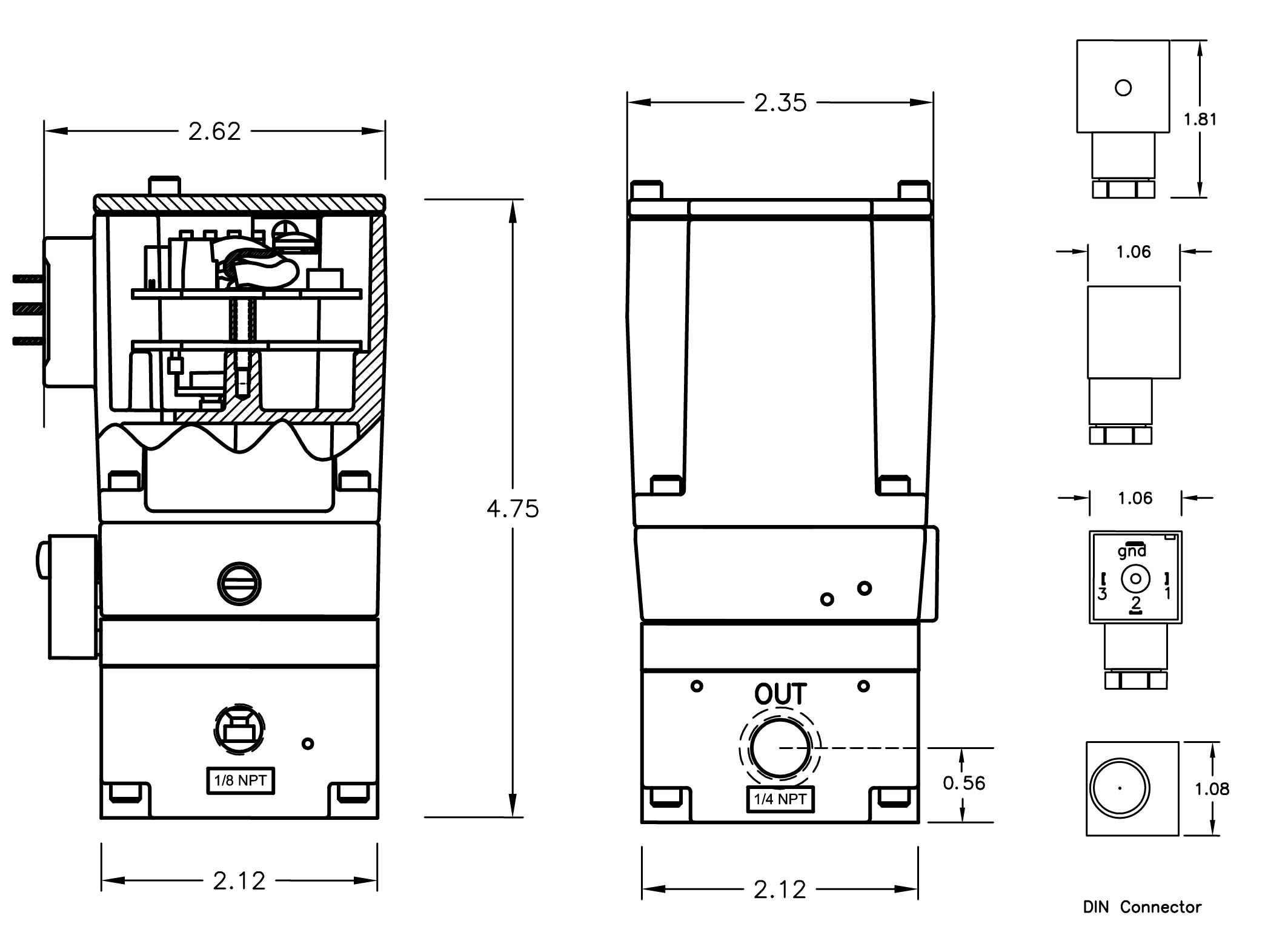

| Dimensions | 134 x 57 x 80 mm (5.3" x 2.3" x 3.2") |
| EU-type examination certificate | ATEX II 1 G EEx ia IIC T4Tamb= -20 to 60 °C |
| Directive conformity | CE |
