7500-ACC-BKT-*

7500-ACC-BKT-* 7500 Series Control Unit mounting brackets

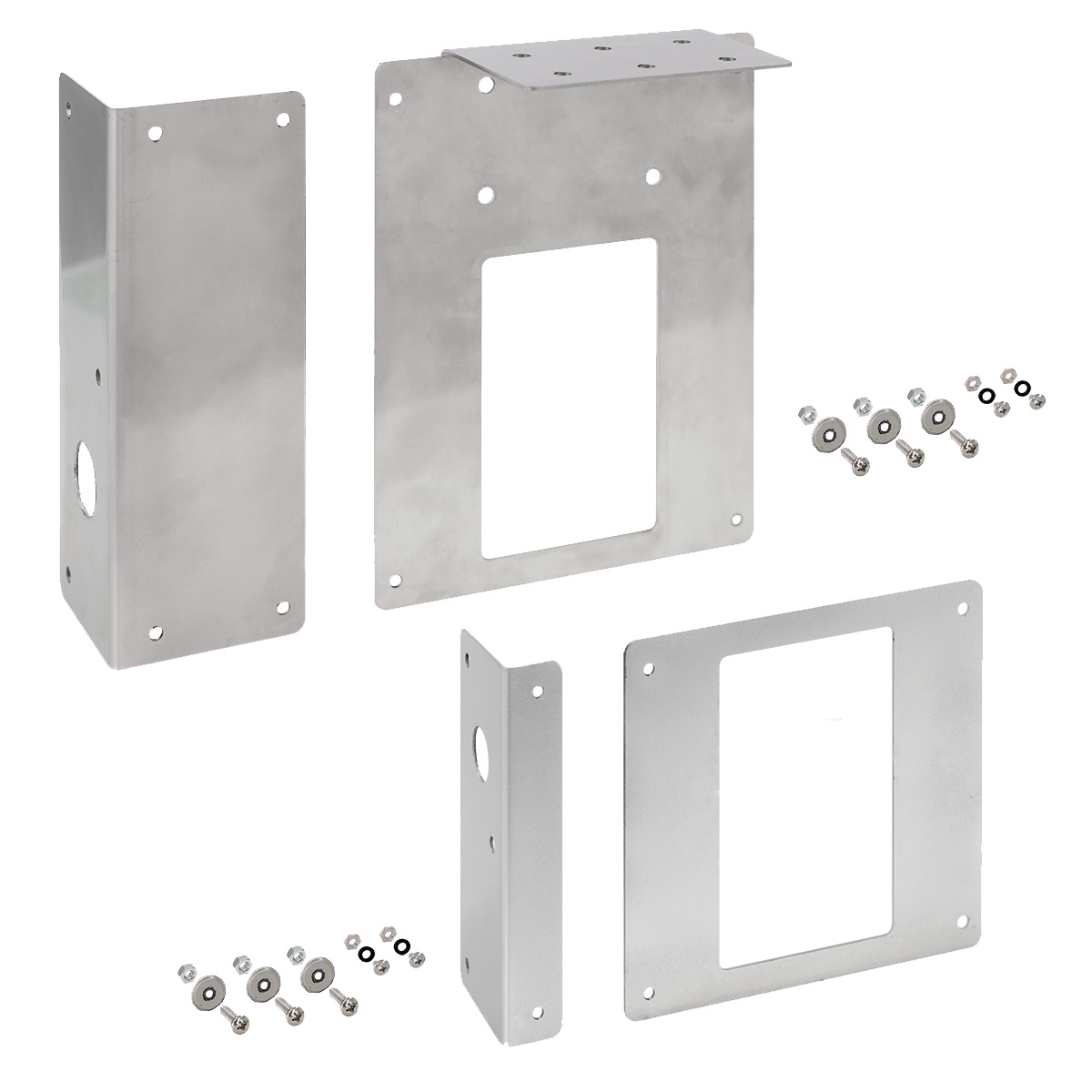

The 7500-ACC-BKT bracket provides easy installation of the 7500-01 control unit to an enclosure, with or without 5500-MAN manifold (not included).

TECHNICAL DATA

规格参数

General specifications

Operating mode	For mounting 7500 control unit to enclosure or back panel
Series	7500
System	Type Z Purge ; Ex pzc Purge
Hazardous environment	gas or dust
Degree of protection	Mounting type 4X / IP66 (Seeloc washers)
Material	Bracket: 316 stainless steelPanel: 316 stainless steel Hardware, panel-to-enclosure (Bag 1)Bolts (3): 304 stainless steelWashers (3): Seeloc by APM Hexseal (P/N 75082 Buna-N)Nut: 304 stainless steelHardware, bracket-to-panel (Bag 2)Bolts (2): 304 stainless steelWashers (2): Hard fiberNuts (2): 304 stainless steel
Mass	7500-ACC-BKT-NM 0.6 kg 7500-ACC-BKT-YM 1.3 kg

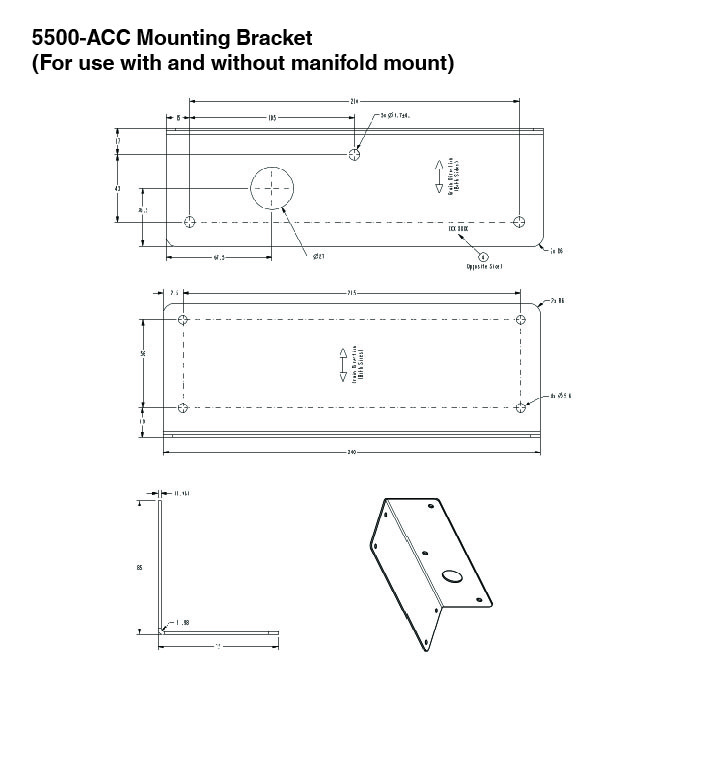

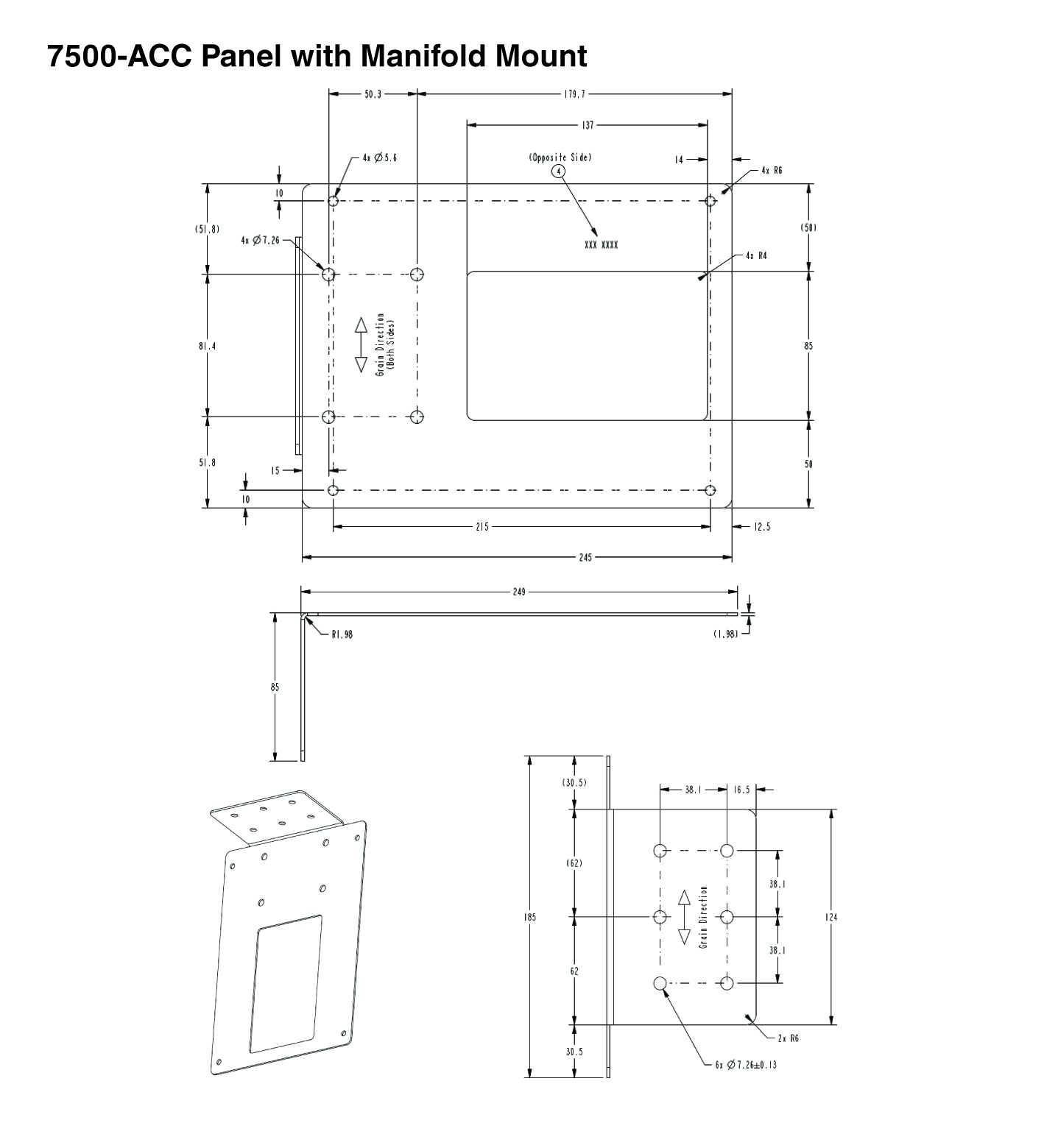

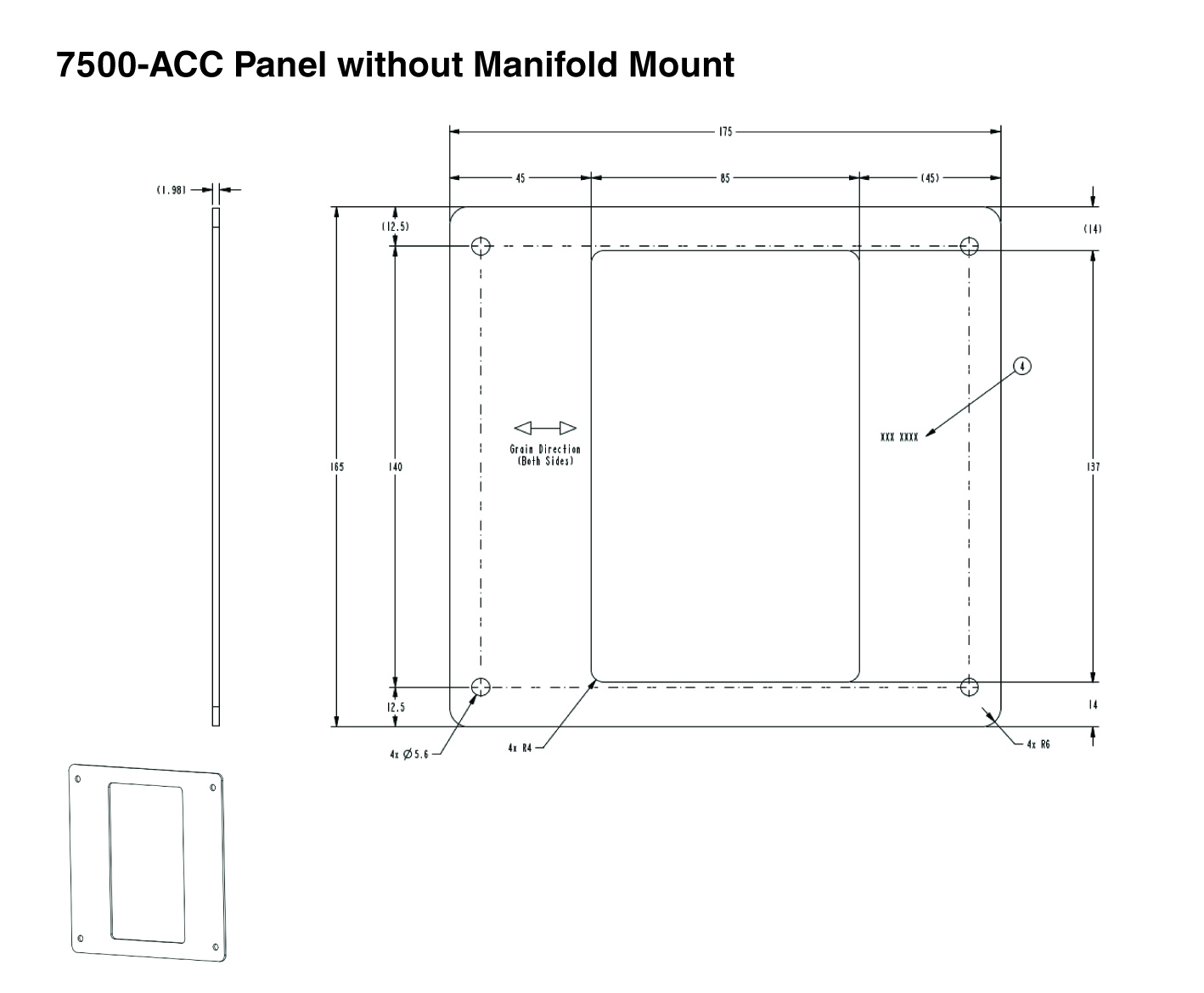

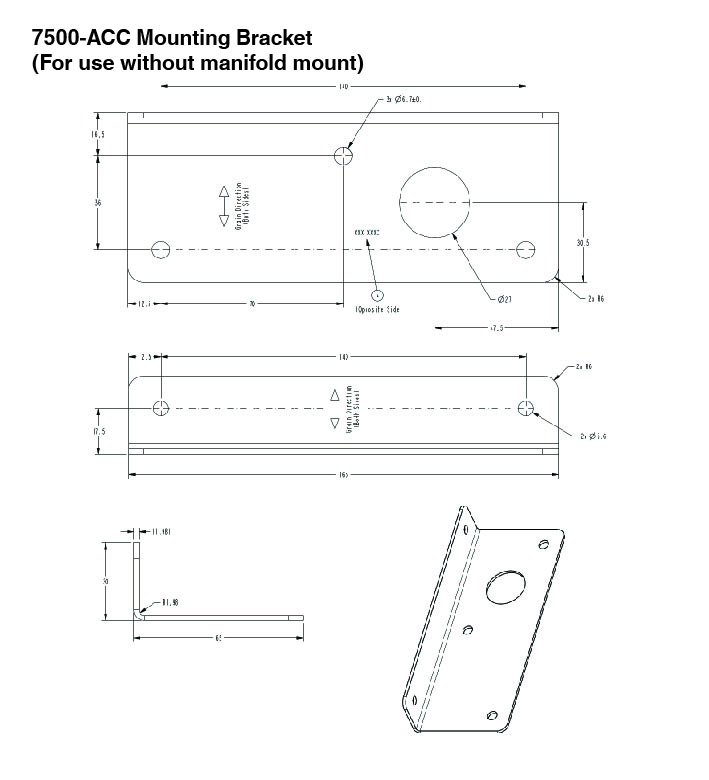

Dimensions	For bracket dimensions, see dimension drawing.Hardware, panel-to-enclosure (Bag 1)Bolts (3): ¼ x 20 x ¾"Washers (3): 1" (OD); 9.53mm (hole diameter)Nut: ¼" Hardware, bracket-to-panel (Bag 2)Bolts (2):5mm x 12mm button socketWashers (2): No 8Nut (2):5mm nyloc nut
Scope of delivery	One (1) each bracket and panel with mounting hardware included (Control unit and optional manifold are sold separately.)
