TECHNICAL DATA
规格参数
General specifications

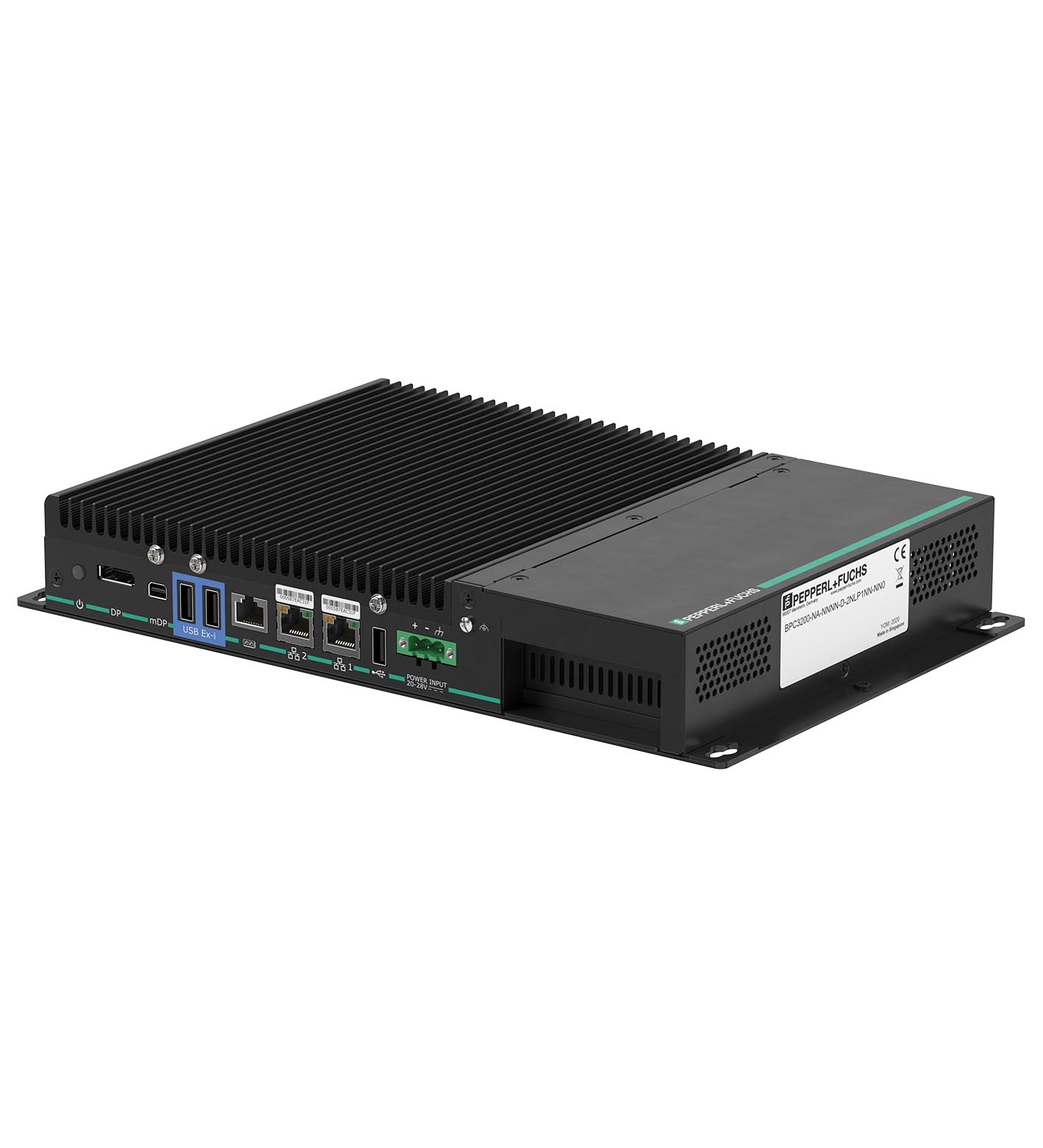

| Type | Industrial Box PC |
|---|---|
| Processor | Intel® Core™ i5-7300U Intel® Celeron™ 3965U |
| RAM | 2x SO-DIMM slots,supports up to 32 GB DDR4-2133 (one SO-DIMM slot) Configurable RAM options:Industrial temperature grade (temperature option A):A: 1x 4GB DDR4-2133 [Celeron]B: 1x 8GB DDR4-2133C: 1x 16GB DDR4-2133D: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5] Wide temperature grade (temperature option B):K: 1x 4GB DDR4-2133 [Celeron]L: 1x 8GB DDR4-2133M: 1x 16GB DDR4-2133P: 2x 16GB DDR4-2133 [Industrial, general purpose (Non-Ex), i5] |
| Mass storage | Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 31x M.2 2242/2280 M Key, 2242/2280, SATA 3, supports Raid 0/1 [i5] Configurable storage options:Industrial temperature grade (temperature option A):A: 32 GB M.2 SATA 3 [Celeron]D: 256 GB M.2 NVMe 1.3 (PCIe 4x)E: 512 GB M.2 NVMe 1.3 (PCIe 4x) Wide temperature grade (temperature option B):K: 32 GB M.2 SATA 3 [Celeron]P: 256 GB M.2 NVMe 1.3 (PCIe 4x)Q: 512 GB M.2 NVMe 1.3 (PCIe 4x) |
| Input current | max. 3 A, max. 60 W |
| Power consumption | Power consumption |
| DC24 V d. c. (20 … 28 V d. c.) (SELV/PELV or NEC class 2) | DC24 V d. c. (20 … 28 V d. c.) (SELV/PELV or NEC class 2) |
| DC | 24 V d. c. (20 … 28 V d. c.) (SELV/PELV or NEC class 2) |
| Interface type | Backside:1x Power button w/ LED indicator1x DisplayPort 1.2 port (supports DP++)1x mini DisplayPort 1.2 port (supports DP++)2x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard1x RS232/422/485 port (1x RJ45)2x RJ45 ports for Gigabyte Ethernet (Intel I219 / I210)1x USB 2.0 port1x Power input w/ 3 pin terminal block Left side:2x Antenna holes2x USB 3.1 Gen1 (5 Gbps) ports1x 3,5mm audio jack (Line-out)1x RS232/422/485 port (D-SUB 9)1x Connector for external power button Internal expansion options:1x PCIe 4x slot for low profile cards1x full-size mini PCI Express socket / M.2 2230 E Key socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017 | Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017 |
| Explosion protection | Explosion protection |
| Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 EN 55035:2017/A11:2020 EN 55011:2016+A1:2017 |
| Directive 2014/34/EU | EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Operating system | Windows® 10 IoT Enterprise LTSC 2021 x64 VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) [Celeron, 4 GB RAM, 64 GB SSD] Optional:INN-: IGEL OS 11 based on Linux, without licence [Celeron, 8 GB RAM, 64 GB SSD]JNN-: IGEL OS 12 based on Linux, without licence, [Celeron, 8 GB RAM, 64 GB SSD]TNN-: ThinManager Ready [Celeron, 4 GB RAM, no storage] |
| Operating temperature | Temperature classes:A: 0 … 45 °C (32 … 113 °F)B: -20 … 55 °C (-4 … 131 °F) [with wide temperature grade RAM/storage] |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78 |
| Shock resistance | Acceleration: 15 gDuration: 11 msShocks: 18 (3 per axis per direction) |
| Vibration resistance | Amplitude / acceleration: +/- 0.075 mm // 1 gFrequency range: 10 Hz - 150 HzSweeps: 20 |
| Degree of protection | IP 20 |
| Material | Painted sheet metal and extruded aluminum |
| Mass | approx. 2.5 kg |

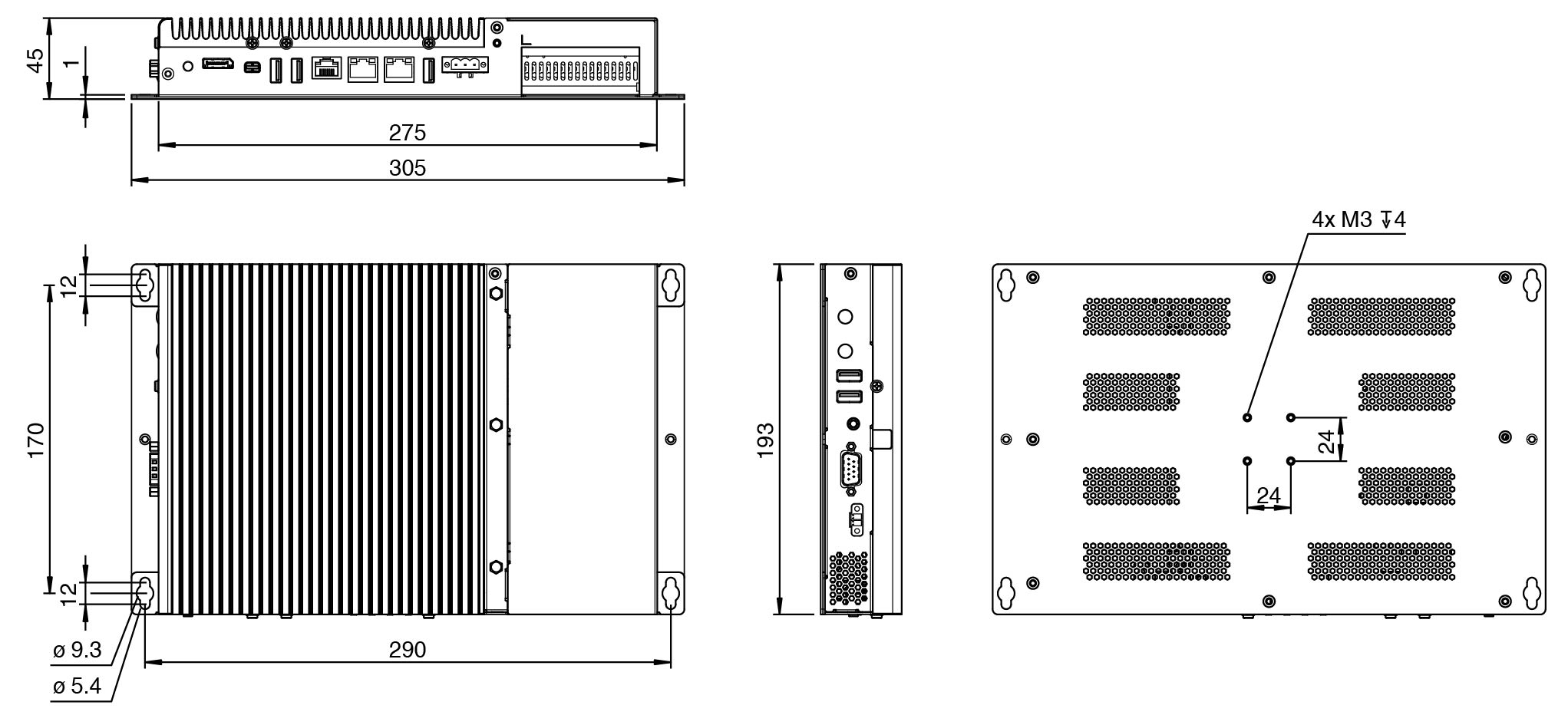

| Dimensions | 305 mm x 193 mm x 45 mm |
| Mounting | Wall mounting, DIN rail (via optional adapter) |
| UL approval | UL approval |
| Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA | Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA |
| ATEX approval | ATEX approval |
| ATEX certificateUL 22 ATEX 2478XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc | ATEX certificateUL 22 ATEX 2478XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx ULD 22.0016XIECEx markingEx ec [ic Gc] IIC T4 Gc IECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 | IECEx certificateIECEx ULD 22.0016XIECEx markingEx ec [ic Gc] IIC T4 Gc IECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 |
| CCC approval | CCC approval |
| CCC certificate2023322309005714CCC markingEx ec [ic Gc] IIC T4 GcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021 | CCC certificate2023322309005714CCC markingEx ec [ic Gc] IIC T4 GcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021 |
| Approved for | UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 IS circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP E, F, GCL IIIIS circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP E, F, GCL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIBCL III, ZN 22, IIIA |
| ATEX certificate | UL 22 ATEX 2478X |
| ATEX marking | II 3 G Ex ec [ic Gc] IIC T4 Gc |
| IECEx certificate | IECEx ULD 22.0016X |
| IECEx marking | Ex ec [ic Gc] IIC T4 Gc |
| IECEx standard | IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 |
| CCC certificate | 2023322309005714 |
| CCC marking | Ex ec [ic Gc] IIC T4 Gc |
| CCC standard | GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021 |
