TECHNICAL DATA
规格参数
Hardware
| Processor | AMD Ryzen R2314 |
|---|---|
| RAM | 8 GB DDR4 (2x 4 GByte dual-channel RAM) |
| Mass storage | 64 GByte M.2 SSD |
| Power supply | Input voltage: 12 ... 28 V DC Input current: 4.6 A … 1.9 A Input via 2.5 mm power socket |
| Interface type | Front side:1x USB 3.2 Gen 1 Type C2x USB 2.0 Type A,Power button,Audio line out Back side:3x 1000Base-T Ethernet,4x DisplayPort 1.4,1x DC (DC jack 5.5 x 2.5 mm with lock mechanism),3x USB 3.2 Gen 1 Type A,1x RS-232/RS-485 with RJ45 connector |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2021EN 55032:2015+A11:2020+A1: 2020EN 55011:2016+A1:2017+A11:2020+A2:2021 (Group 1, Class B) | Directive 2014/30/EUEN 61326-1:2021EN 55032:2015+A11:2020+A1: 2020EN 55011:2016+A1:2017+A11:2020+A2:2021 (Group 1, Class B) |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018-12 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018-12 |
| Directive 2014/30/EU | EN 61326-1:2021EN 55032:2015+A11:2020+A1: 2020EN 55011:2016+A1:2017+A11:2020+A2:2021 (Group 1, Class B) |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018-12 |
| Operating system | 2-: VisuNet RM Shell 6 (based on Windows® 11 IoT Enterprise LTSC 2024) Optional:J-: IGEL OS 12 (based on Linux, pre-installed without licence) T-: ThinManager Ready |
| Operating temperature | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | ≤ 90 % at 60 °C (non-condensing acc. to EN 60068-2-78) |
| Shock resistance | 40 g (11 ms) when operating 80 g (11 ms) when not operating |
| Vibration resistance | 3 grms 5 ... 500 Hz |
| Degree of protection | IP4x |
| Mass | 2.47 kg |

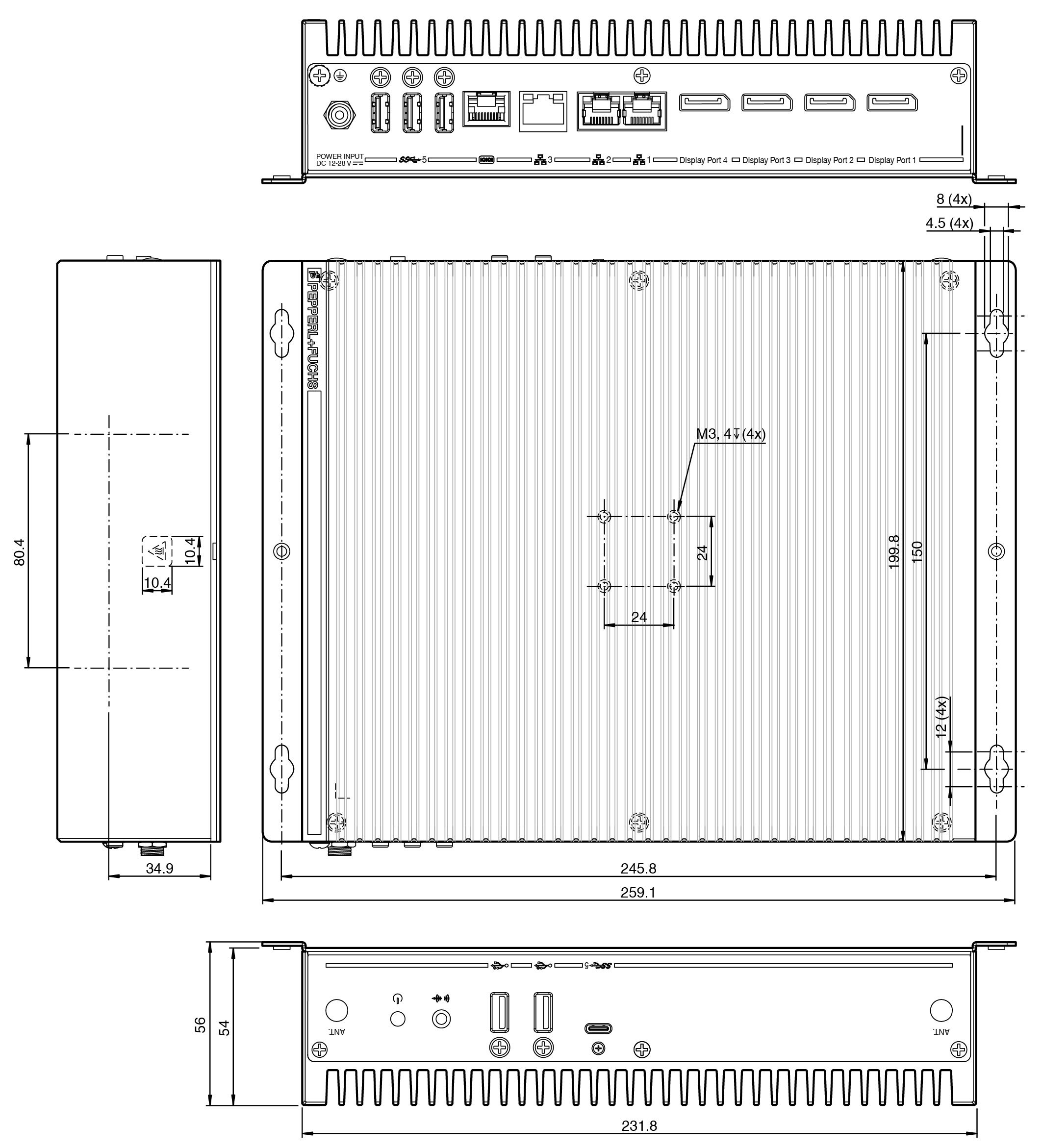

| Dimensions | 259.1 mm x 56.05 mm x 199.8 mm |
| Mounting | Desktop or wall mounting, VESA mount (100 x 100 mm and 75 x 75 mm) and DIN-rail mounting via optional adapter |
| Note | passive cooling , no moving parts Power supply not included. |
| UL approval | "UL Listed" for Canada and USA, E223772 (Ordinary Location) |
| Approved for | CE (EN61326-1/ EN55032/ EN55035 Class A)FCC Class A and ICES-003 Issue 7 |
