产品数据表
Datasheet
可按需获取获取并下载
TECHNICAL DATA
规格参数
Electrical specifications

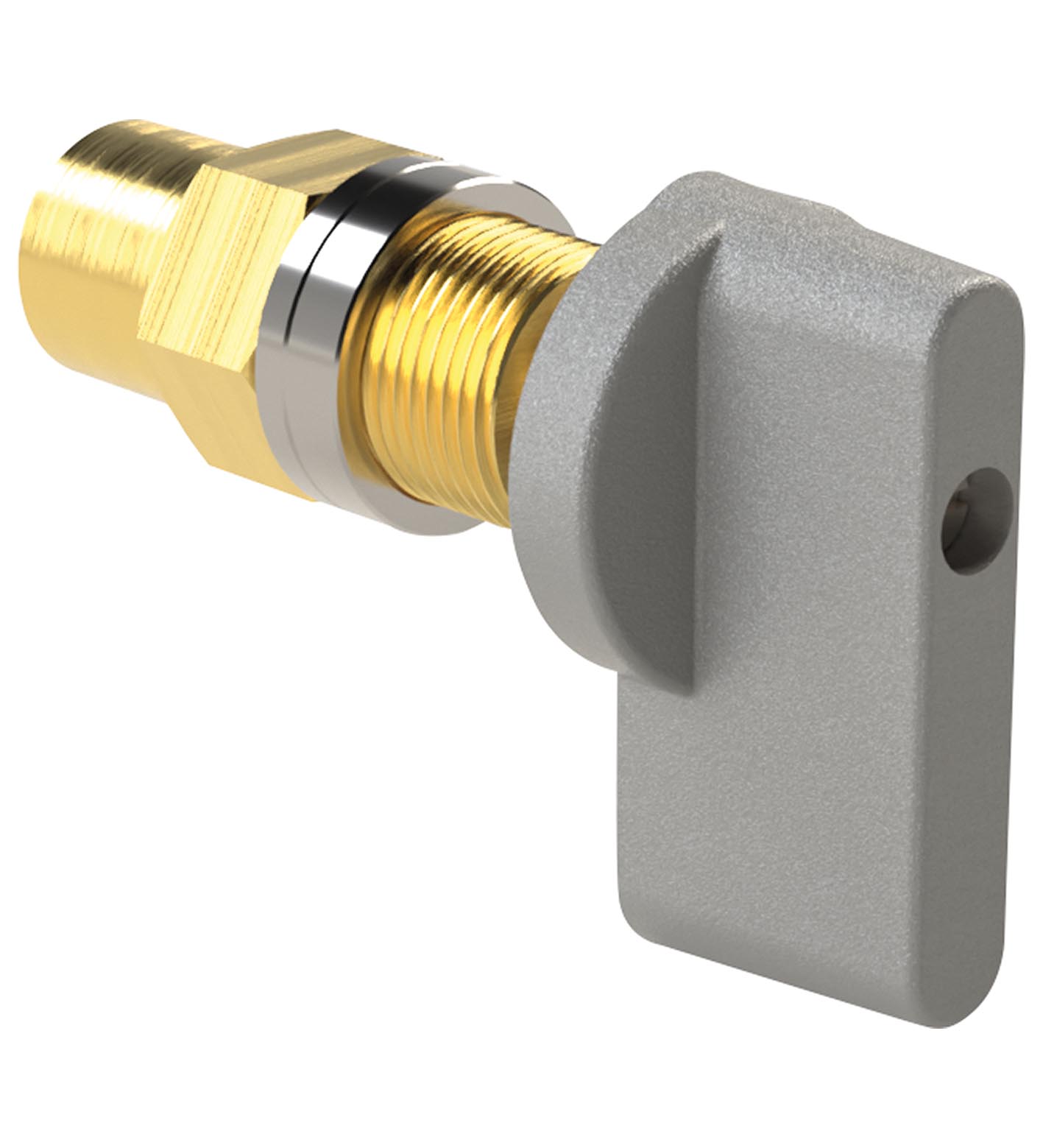

| Function | Rotary actuator for 6 mm square shaft |
|---|---|
| Switching configurationAccording to internal componentOperator actionAccording to internal componentLabelingnone | Switching configurationAccording to internal componentOperator actionAccording to internal componentLabelingnone |
| Switching configuration | According to internal component |
| Operator action | According to internal component |
| Labeling | none |
| Thread size (TD) | M20 |
| Degree of protection | IP66 |
| Material | Material |
| HousingHandle : Aluminum LM6 shaft: brassFinishHandle : powder coated | HousingHandle : Aluminum LM6 shaft: brassFinishHandle : powder coated |
| Mass | 58 g |
| Mechanical life | 10000000 switching operations |
| Dimensions | Dimensions |

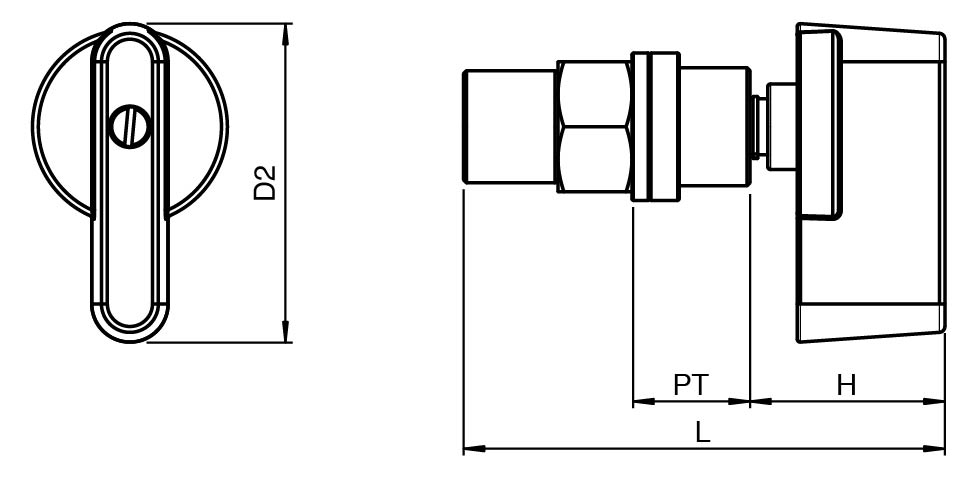

| Actuator head diameter (D2)54 mmPanel wall thickness (PT)12 ... 20 mmLength outside enclosure (H)33 mmTotal length (L)81.5 mm | Actuator head diameter (D2)54 mmPanel wall thickness (PT)12 ... 20 mmLength outside enclosure (H)33 mmTotal length (L)81.5 mm |
| Tightening torque | 5 Nm |
| Mounting | use with lid-mounted contact modules |
| Housing | Handle : Aluminum LM6 shaft: brass |
| Finish | Handle : powder coated |
| Actuator head diameter (D2) | 54 mm |
| Panel wall thickness (PT) | 12 ... 20 mm |
| Length outside enclosure (H) | 33 mm |
| Total length (L) | 81.5 mm |
| Service temperature | -60 ... 120 °C (-76 ... 248 °F) |
| EU-type examination certificate | CML 17 ATEX 1341U |
| Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex db IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 17.0181U |
| UKCA approval | CML 21 UKEX 1422U |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | EJB , EJBX , GUB , GUBX |
