TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |

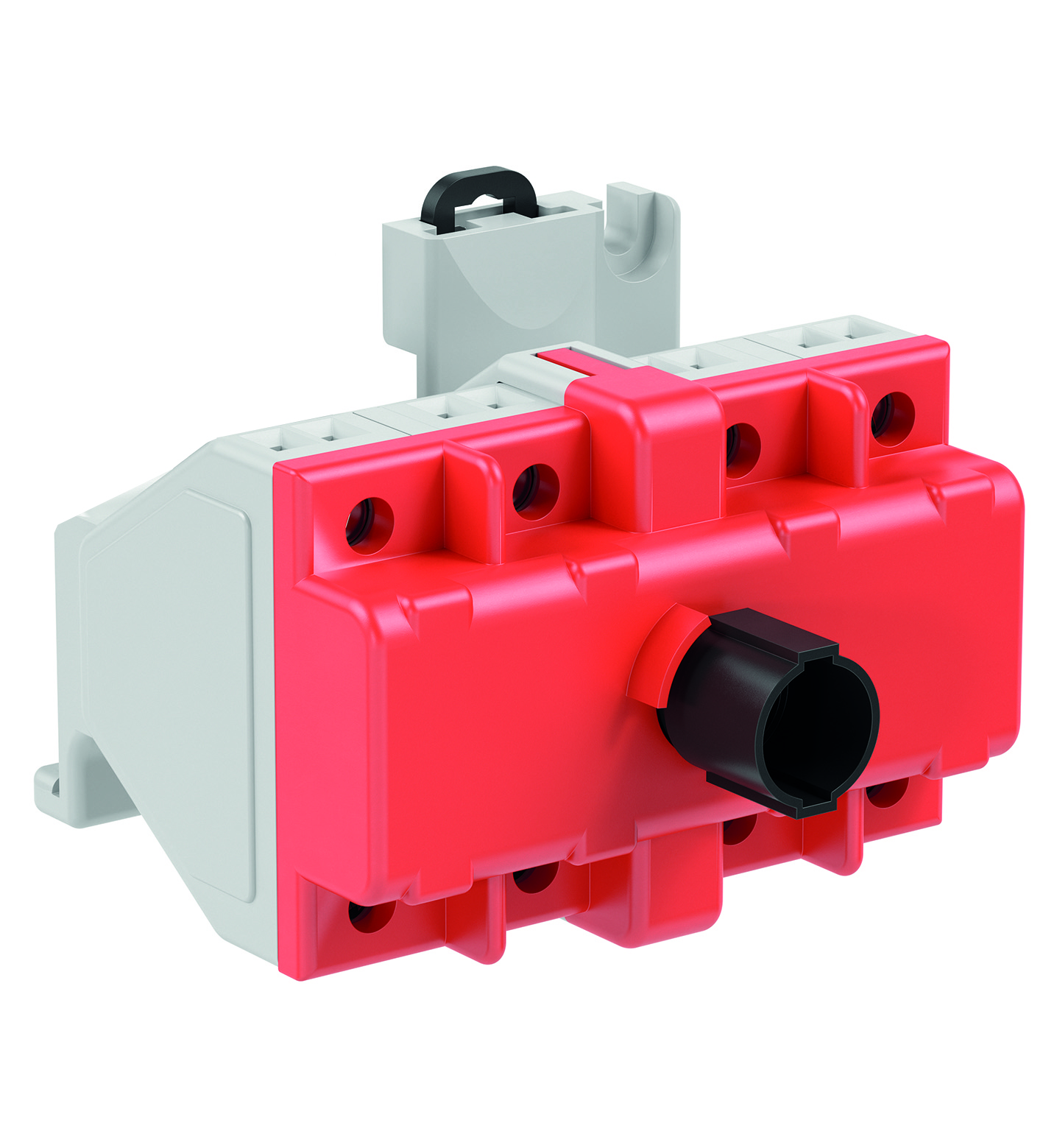

| Function | Rotary Switching Module Ex e, 4 Pole, Base-mounted |
| Contact configuration2x NO / 2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 ANumber of poles4 | Contact configuration2x NO / 2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 ANumber of poles4 |
| Terminal torque | 0.8 Nm |

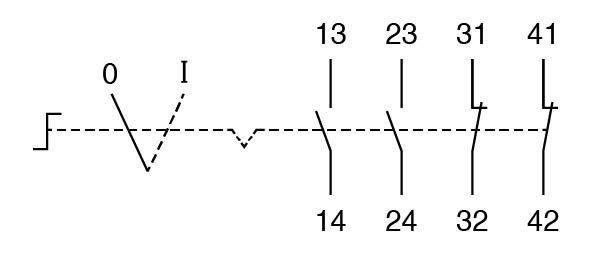

| Contact configuration | 2x NO / 2x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 A |
| Number of poles | 4 |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 211 g |
| Mechanical life | 1000000 switching operations |
| Dimensions | Dimensions |
| External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm | External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm |
| Mounting | base-mounted DIN rail mounting |
| Housing | Polyamide (PA) |
| External dimension (A) | 63 mm |
| External dimension (B) | 74 mm |
| External dimension (C) | 58 mm |
| Mounting holes distance (G) | 52 mm |
| DIN mounting rail receptacle (G3) | 35.6 mm |
| Mounting holes distance (H) | 58 mm |
| Mounting holes diameter (J) | 4.2 mm |
| Thickness of mounting brackets (N) | 8 mm |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 G Ex de IIC Gb | Marking II 2 G Ex de IIC Gb |
| Marking | II 2 G Ex de IIC Gb |
| IECEx approval | IECEx CML 16.0114U |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 2829 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* |
