TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |

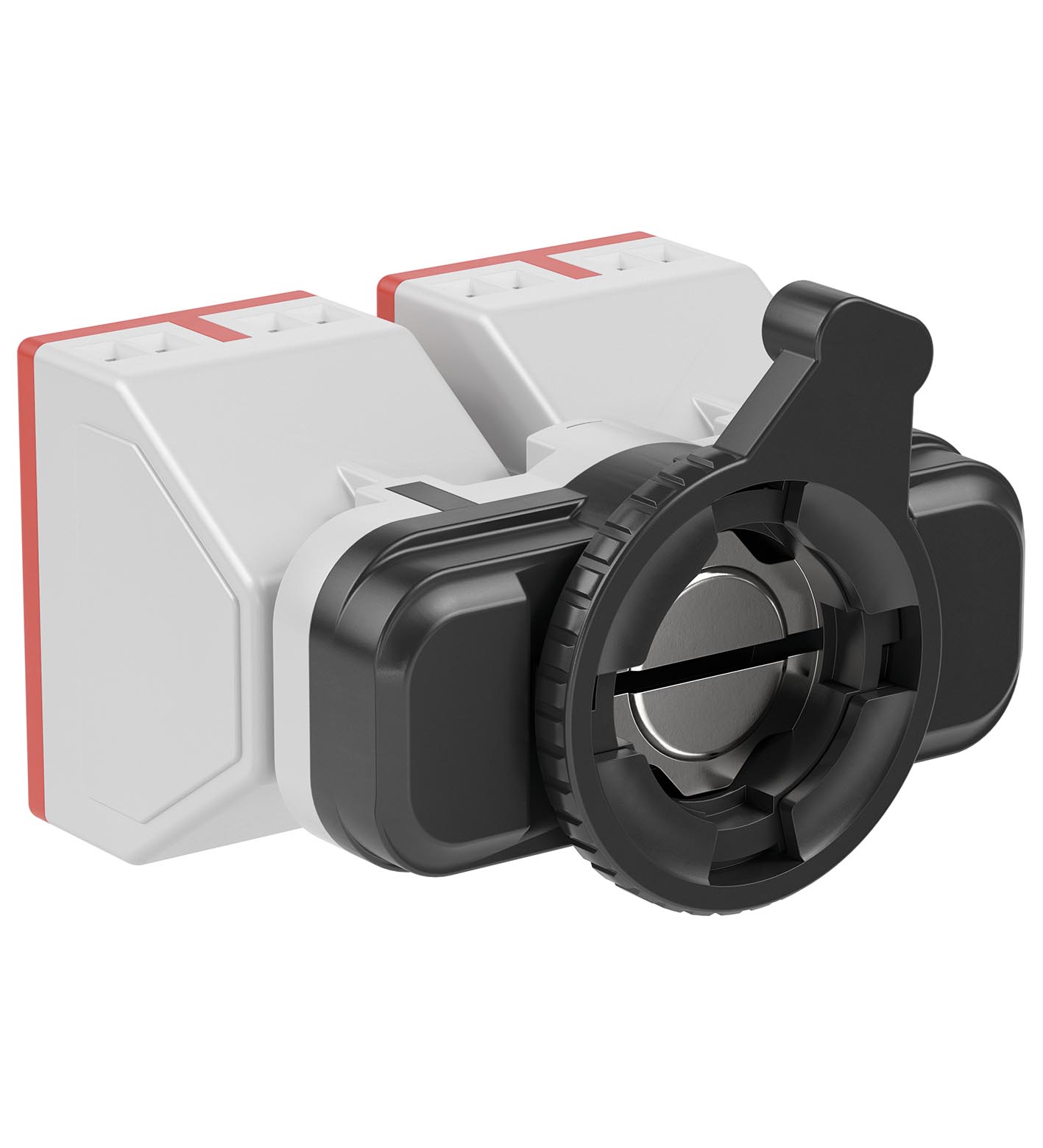

| Function | contact block |
| Contact configuration1x NO / 3x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 ANumber of poles4 | Contact configuration1x NO / 3x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 ANumber of poles4 |
| Terminal torque | 0.8 Nm |
| Contact configuration | 1x NO / 3x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 A |
| Number of poles | 4 |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 166 g |
| Mechanical life | 1000000 switching operations |
| Dimensions | Dimensions |
| External dimension (A)57 mmExternal dimension (B)73.4 mmExternal dimension (C)65.7 mm | External dimension (A)57 mmExternal dimension (B)73.4 mmExternal dimension (C)65.7 mm |
| Mounting | cover-mounted via actuator head |
| Housing | Polyamide (PA) |
| External dimension (A) | 57 mm |
| External dimension (B) | 73.4 mm |
| External dimension (C) | 65.7 mm |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 G Ex de IIC Gb | Marking II 2 G Ex de IIC Gb |
| Marking | II 2 G Ex de IIC Gb |
| IECEx approval | IECEx CML 16.0114U |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 2829 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | SR.CS* |
