TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Power consumption | 1 W max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | buzzer |
| ColorblackRated operating voltage20 ... 250 V AC/DCOperator actionSound level 60 dB at 30 cm | ColorblackRated operating voltage20 ... 250 V AC/DCOperator actionSound level 60 dB at 30 cm |
| Terminal torque | 0.8 Nm |
| Color | black |
| Rated operating voltage | 20 ... 250 V AC/DC |
| Operator action | Sound level 60 dB at 30 cm |
| Thread size (TD) | M30 x 1.5 |
| Degree of protection | IP66 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 125 g |

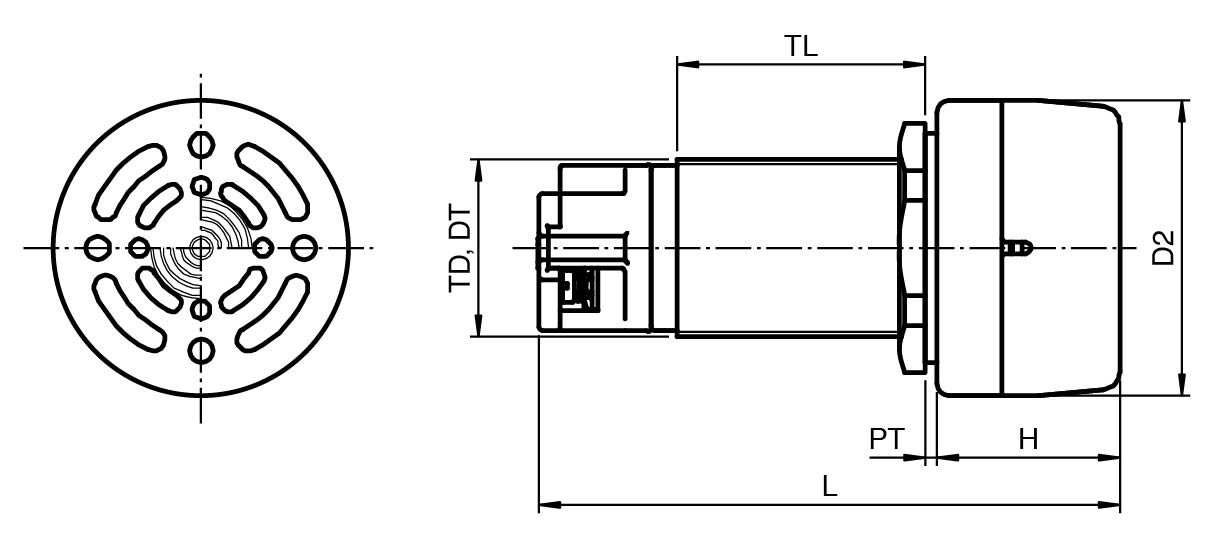

| Dimensions | Dimensions |
| Actuator head diameter (D2)50 mmPanel wall thickness (PT)1 ... 35 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)31 mmThread length (TL)42 mmTotal length (L)98.5 mm | Actuator head diameter (D2)50 mmPanel wall thickness (PT)1 ... 35 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)31 mmThread length (TL)42 mmTotal length (L)98.5 mm |
| Mounting | cover-mounted |
| Housing | Polyamide (PA) |
| Actuator head diameter (D2) | 50 mm |
| Panel wall thickness (PT) | 1 ... 35 mm |
| Diameter thru-hole (DT) | 30.6 mm |
| Length outside enclosure (H) | 31 mm |
| Thread length (TL) | 42 mm |
| Total length (L) | 98.5 mm |
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
| EU-type examination certificate | EPT 16 ATEX 2404U |
| Marking II 2 GD Ex eb ib mb IIC Gb Ex ib tb IIIC Db | Marking II 2 GD Ex eb ib mb IIC Gb Ex ib tb IIIC Db |
| Marking | II 2 GD Ex eb ib mb IIC Gb Ex ib tb IIIC Db |
| IECEx approval | IECEx EUT 16.0011U |
| Degree of protection | EN 60529 |
| CE marking | 2460 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* SR.CS* |
