产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
Electrical specifications

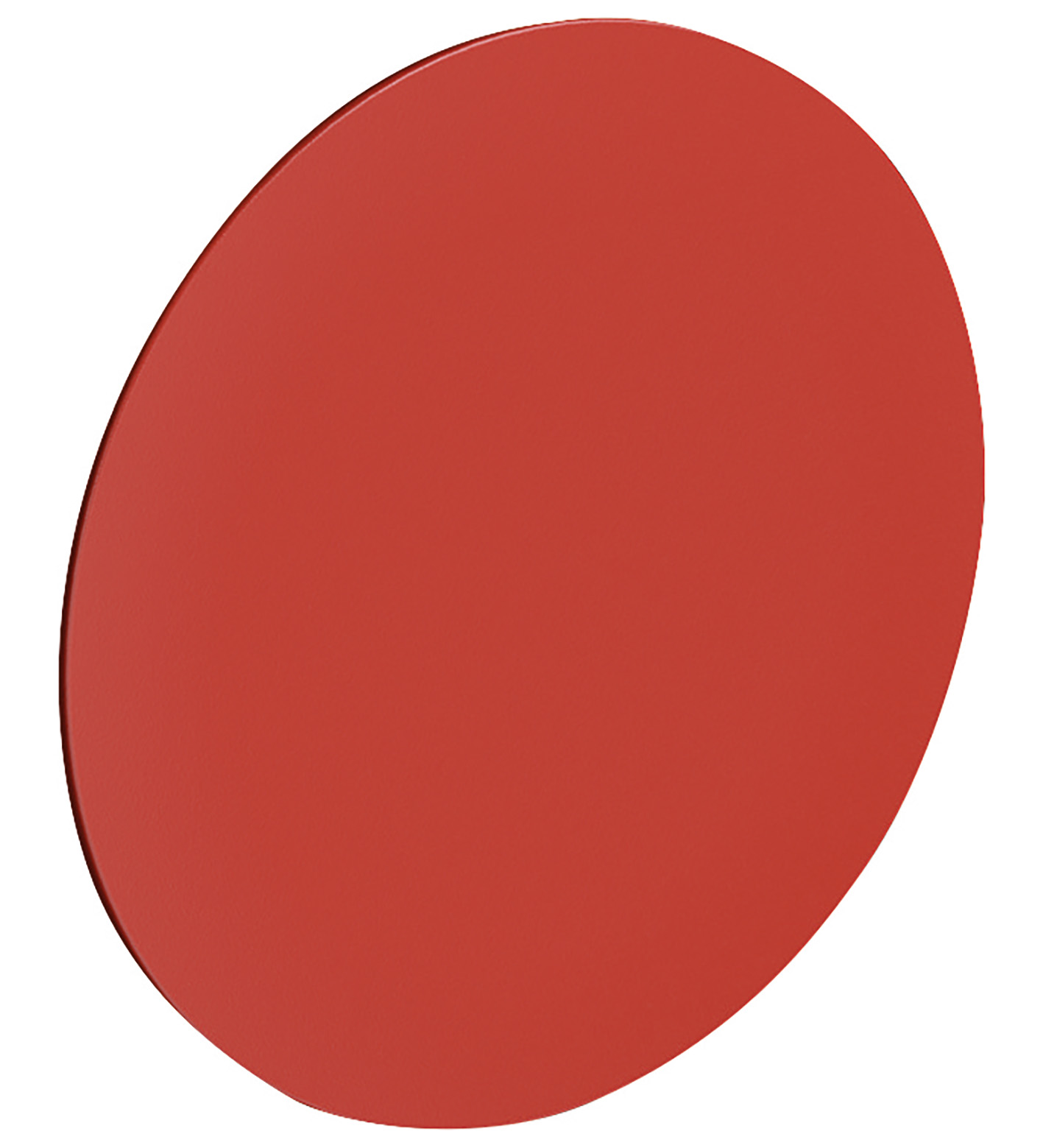

| Function | Insert for Pushbutton |
|---|---|
| ColorblackLabelingLabeling colorwhiteNotespare pushbutton inserts included: red '0', green 'I', black '0', black 'I', black 'II', black 'arrow up', black 'arrow down' | ColorblackLabelingLabeling colorwhiteNotespare pushbutton inserts included: red '0', green 'I', black '0', black 'I', black 'II', black 'arrow up', black 'arrow down' |
| Color | black |
| Labeling | Labeling |
| Labeling color | white |
| Note | spare pushbutton inserts included: red '0', green 'I', black '0', black 'I', black 'II', black 'arrow up', black 'arrow down' |
| Material | Polyamide (PA) |
| Mass | 0.6 g |

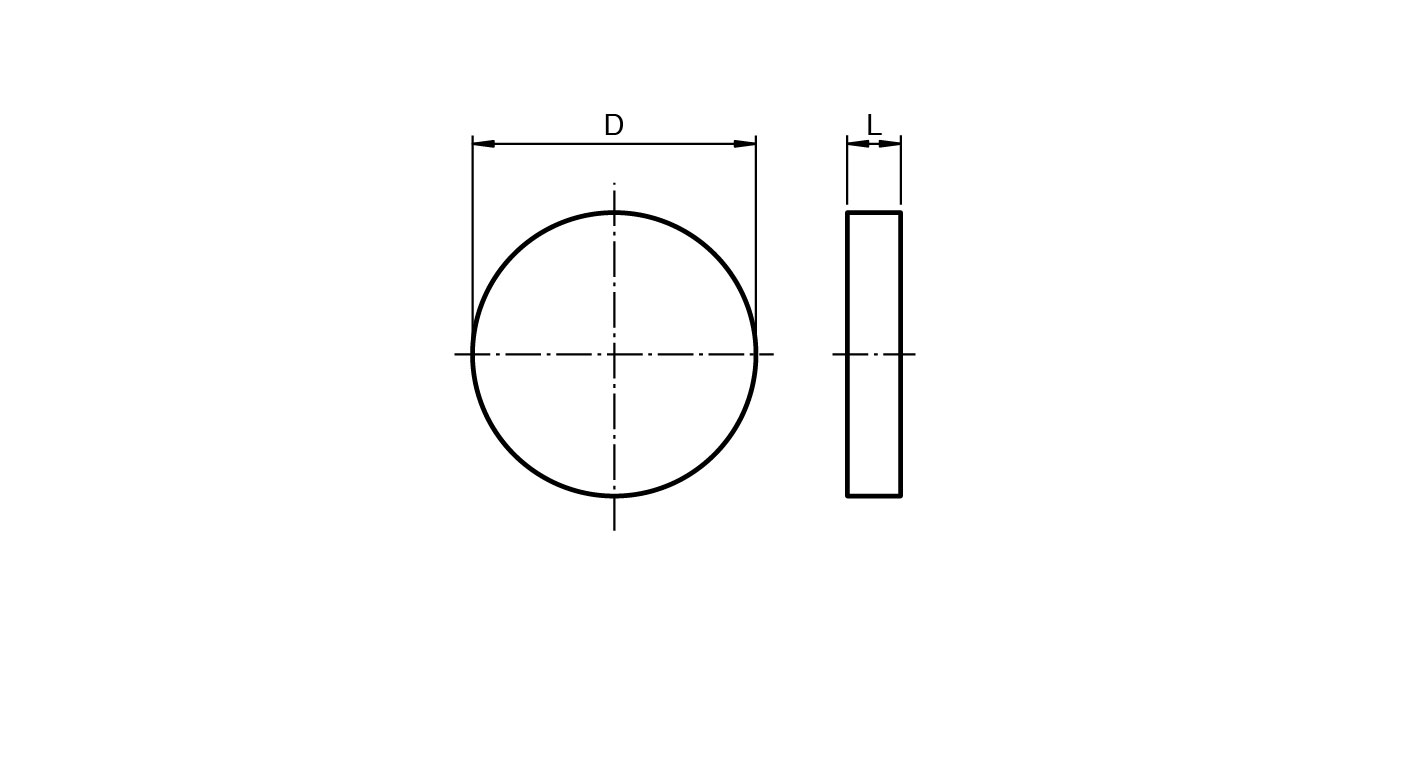

| Dimensions | Dimensions |
| Diameter (D)20 mm | Diameter (D)20 mm |
| Tightening torque | 2.8 ... 3.4 Nm |
| Diameter (D) | 20 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
| Optional accessories | CFP.TP |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
