TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 28 V max. AC/DC |
|---|---|
| Power consumption | 1 W max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | LED module |
| Rated operating voltage10 ... 28 V AC/DC | Rated operating voltage10 ... 28 V AC/DC |
| Terminal torque | 0.8 Nm |
| Rated operating voltage | 10 ... 28 V AC/DC |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 71 g |

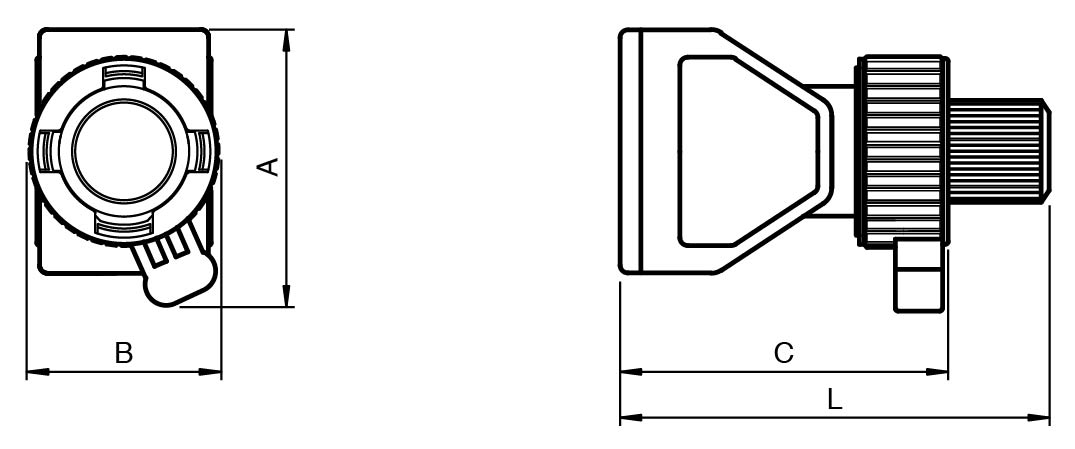

| Dimensions | Dimensions |
| External dimension (A)54 mmExternal dimension (B)37 mmExternal dimension (C)63 mmTotal length (L)88 mm | External dimension (A)54 mmExternal dimension (B)37 mmExternal dimension (C)63 mmTotal length (L)88 mm |
| Mounting | cover-mounted via actuator head |
| Housing | Polyamide (PA) |
| External dimension (A) | 54 mm |
| External dimension (B) | 37 mm |
| External dimension (C) | 63 mm |
| Total length (L) | 88 mm |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 G Ex de IIC Gb | Marking II 2 G Ex de IIC Gb |
| Marking | II 2 G Ex de IIC Gb |
| IECEx approval | IECEx CML 16.0114U |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | SR.CS* |
