TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 30 V max. AC/DC |
|---|---|
| Operating current | 10 A max. |
| Power consumption | 1 W |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |

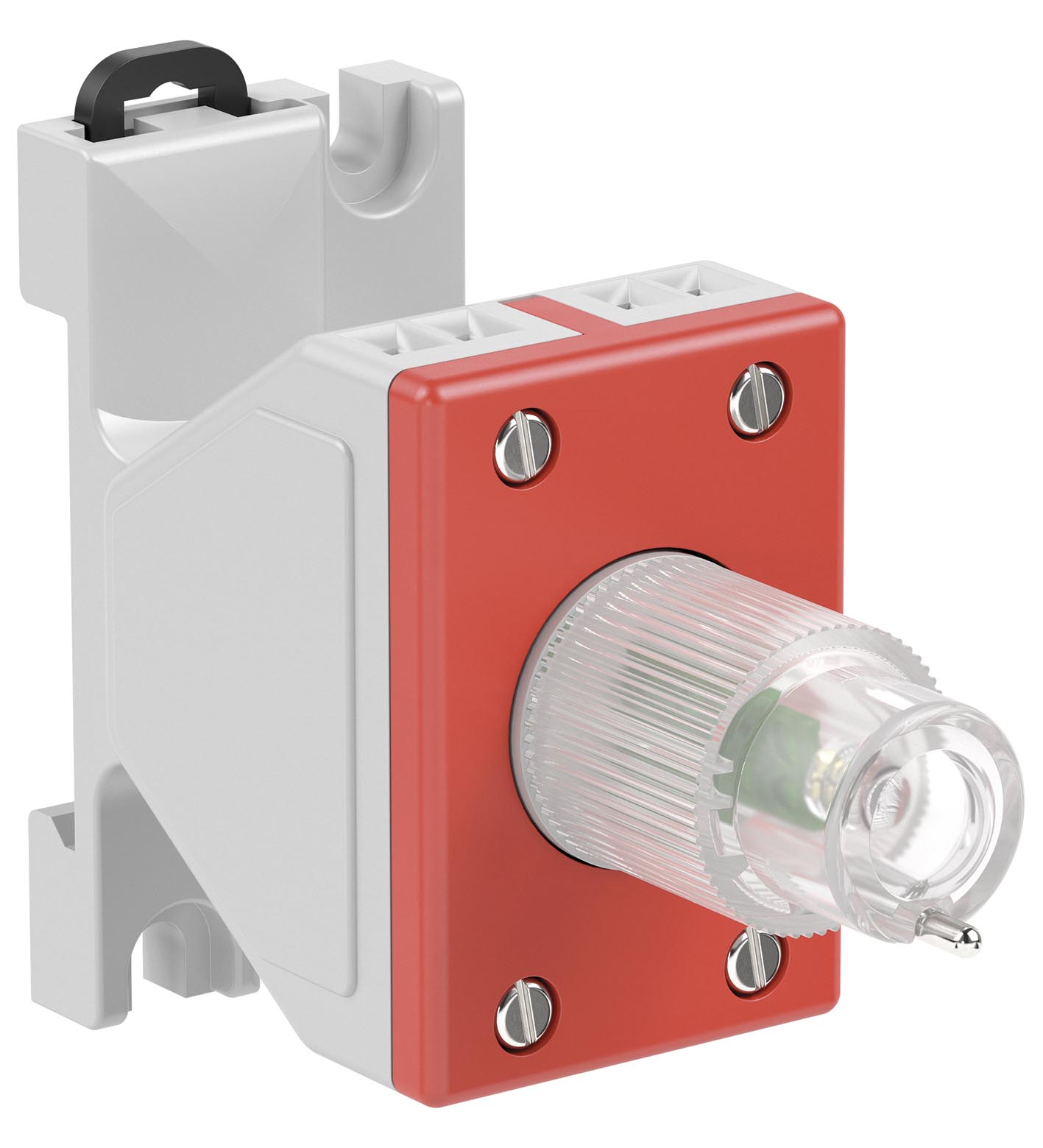

| Function | Illuminated pushbutton module |
| Contact configuration1x NOUsage categoryAC15: 10 ... 30 V AC - 93 mA DC13: 10 ... 30 V DC - 93 mANumber of poles1 | Contact configuration1x NOUsage categoryAC15: 10 ... 30 V AC - 93 mA DC13: 10 ... 30 V DC - 93 mANumber of poles1 |
| Terminal torque | 0.8 Nm |
| Contact configuration | 1x NO |
| Usage category | AC15: 10 ... 30 V AC - 93 mA DC13: 10 ... 30 V DC - 93 mA |
| Number of poles | 1 |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 72 g |
| Mechanical life | 300000 switching operations |

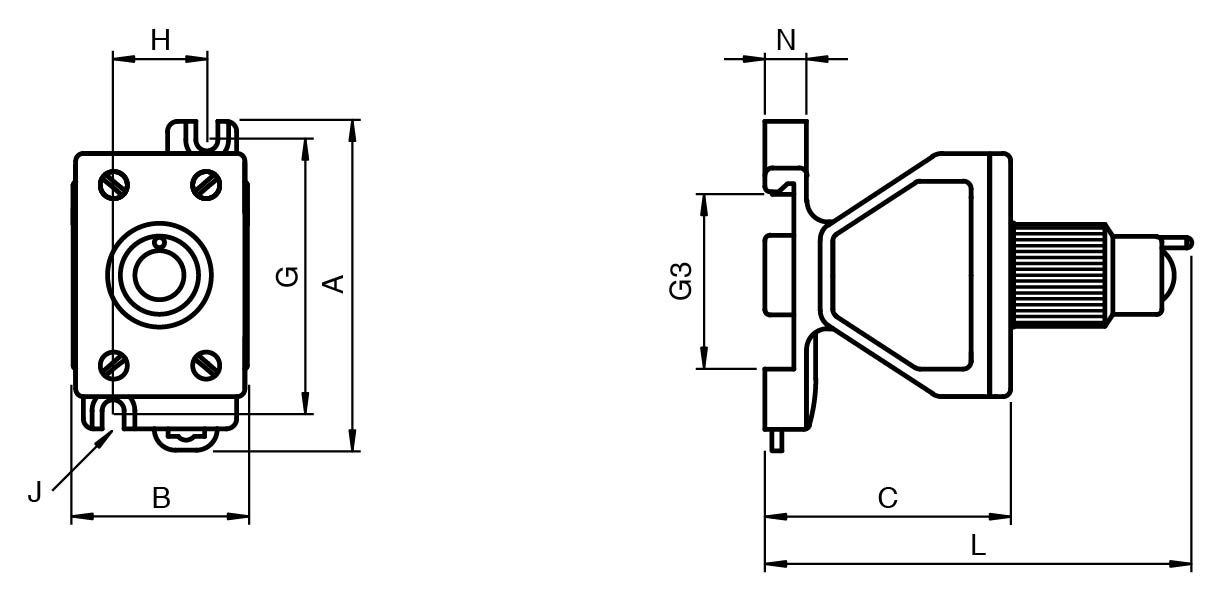

| Dimensions | Dimensions |
| External dimension (A)63 mmExternal dimension (B)33.4 mmExternal dimension (C)47 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)18 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mmTotal length (L)82 mm | External dimension (A)63 mmExternal dimension (B)33.4 mmExternal dimension (C)47 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)18 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mmTotal length (L)82 mm |
| Mounting | base-mounted DIN rail mounting |
| Housing | Polyamide (PA) |
| External dimension (A) | 63 mm |
| External dimension (B) | 33.4 mm |
| External dimension (C) | 47 mm |
| Mounting holes distance (G) | 52 mm |
| DIN mounting rail receptacle (G3) | 35.6 mm |
| Mounting holes distance (H) | 18 mm |
| Mounting holes diameter (J) | 4.2 mm |
| Thickness of mounting brackets (N) | 8 mm |
| Total length (L) | 82 mm |
| Ambient temperature | -55 ... 55 °C (-67 ... 131 °F) |
| Service temperature | -55 ... 85 °C (-67 ... 185 °F) |
| EU-type examination certificate | CML 19 ATEX 1178U |
| Marking II 1 G Ex ia IIC Ga | Marking II 1 G Ex ia IIC Ga |
| Equipment | Equipment |
| VoltageUiLED 28 V switch 30 VCurrentIiLED 93 mA switch 100 mAPowerPiLED 0.651 W switch 1 WInternal capacitanceCiLED 0.01 µF switch 0 µFInternal inductanceLiLED 2.2 mH switch 0 mH | VoltageUiLED 28 V switch 30 VCurrentIiLED 93 mA switch 100 mAPowerPiLED 0.651 W switch 1 WInternal capacitanceCiLED 0.01 µF switch 0 µFInternal inductanceLiLED 2.2 mH switch 0 mH |
| Marking | II 1 G Ex ia IIC Ga |
| Voltage | LED 28 V switch 30 V |
| Current | LED 93 mA switch 100 mA |
| Power | LED 0.651 W switch 1 W |
| Internal capacitance | LED 0.01 µF switch 0 µF |
| Internal inductance | LED 2.2 mH switch 0 mH |
| IECEx approval | IECEx CML 19.0054U |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* |
