TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 30 V max. AC/DC |
|---|---|
| Operating current | 10 A max. |
| Power consumption | 1 W |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |

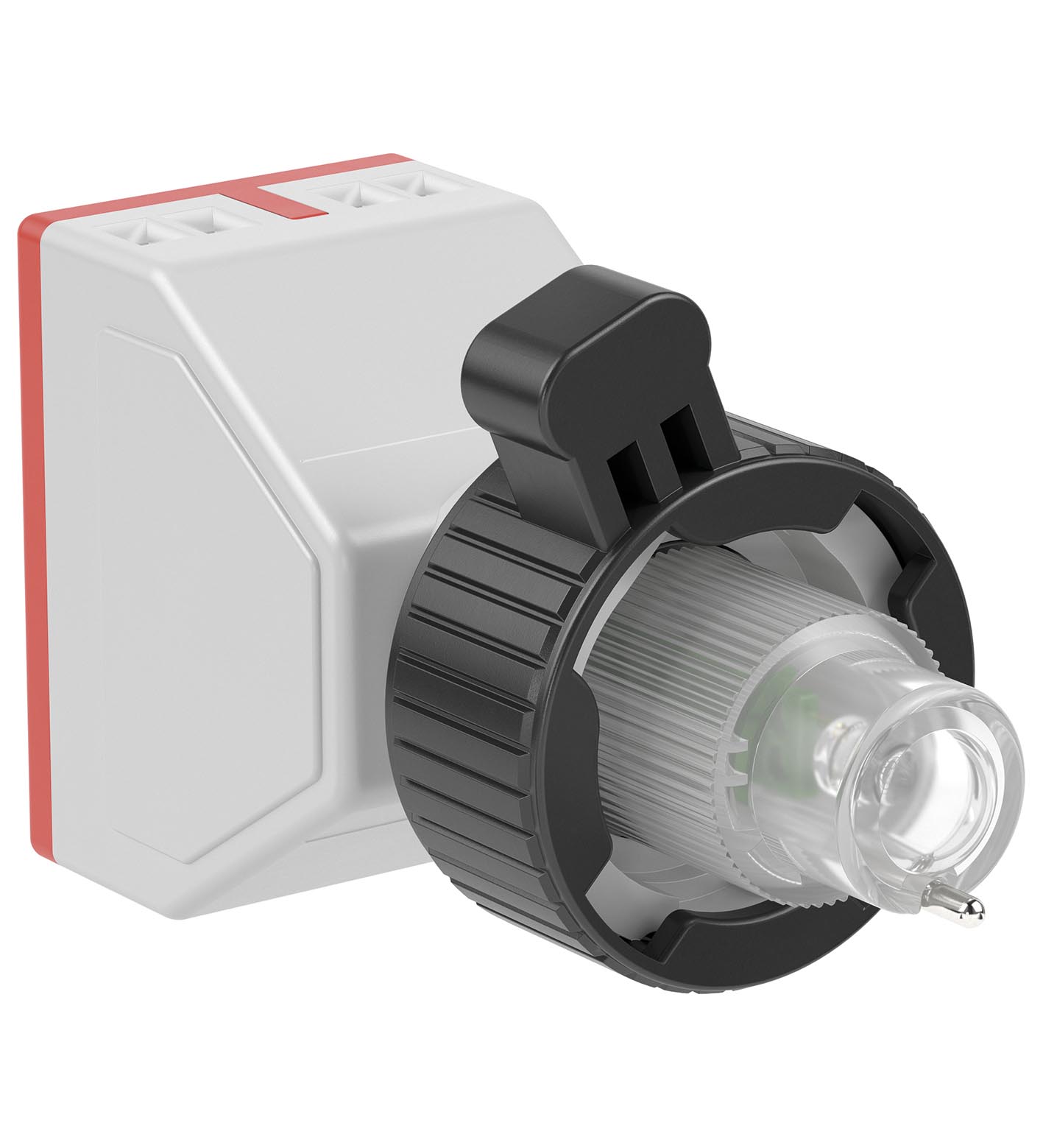

| Function | Illuminated pushbutton module |
| Contact configuration1x NOUsage categoryAC15: 10 ... 30 V AC - 93 mA DC13: 10 ... 30 V DC - 93 mANumber of poles1 | Contact configuration1x NOUsage categoryAC15: 10 ... 30 V AC - 93 mA DC13: 10 ... 30 V DC - 93 mANumber of poles1 |
| Terminal torque | 0.8 Nm |
| Contact configuration | 1x NO |
| Usage category | AC15: 10 ... 30 V AC - 93 mA DC13: 10 ... 30 V DC - 93 mA |
| Number of poles | 1 |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 82 g |
| Mechanical life | 300000 switching operations |

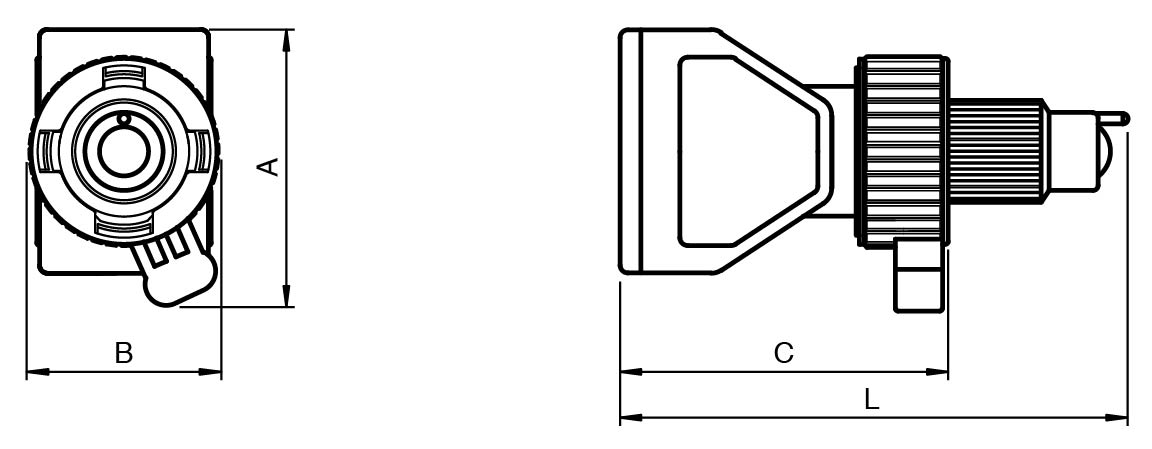

| Dimensions | Dimensions |
| External dimension (A)54 mmExternal dimension (B)37 mmExternal dimension (C)63 mmTotal length (L)88 mm | External dimension (A)54 mmExternal dimension (B)37 mmExternal dimension (C)63 mmTotal length (L)88 mm |
| Mounting | cover-mounted via actuator head |
| Housing | Polyamide (PA) |
| External dimension (A) | 54 mm |
| External dimension (B) | 37 mm |
| External dimension (C) | 63 mm |
| Total length (L) | 88 mm |
| Ambient temperature | -55 ... 55 °C (-67 ... 131 °F) |
| Service temperature | -55 ... 85 °C (-67 ... 185 °F) |
| EU-type examination certificate | CML 19 ATEX 1178U |
| Marking II 1 G Ex ia IIC Ga | Marking II 1 G Ex ia IIC Ga |
| Equipment | Equipment |
| VoltageUiLED 28 V switch 30 VCurrentIiLED 93 mA switch 100 mAPowerPiLED 0.651 W switch 1 WInternal capacitanceCiLED 0.01 µF switch 0 µFInternal inductanceLiLED 2.2 mH switch 0 mH | VoltageUiLED 28 V switch 30 VCurrentIiLED 93 mA switch 100 mAPowerPiLED 0.651 W switch 1 WInternal capacitanceCiLED 0.01 µF switch 0 µFInternal inductanceLiLED 2.2 mH switch 0 mH |
| Marking | II 1 G Ex ia IIC Ga |
| Voltage | LED 28 V switch 30 V |
| Current | LED 93 mA switch 100 mA |
| Power | LED 0.651 W switch 1 W |
| Internal capacitance | LED 0.01 µF switch 0 µF |
| Internal inductance | LED 2.2 mH switch 0 mH |
| IECEx approval | IECEx CML 19.0054U |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | SR.CS* |
