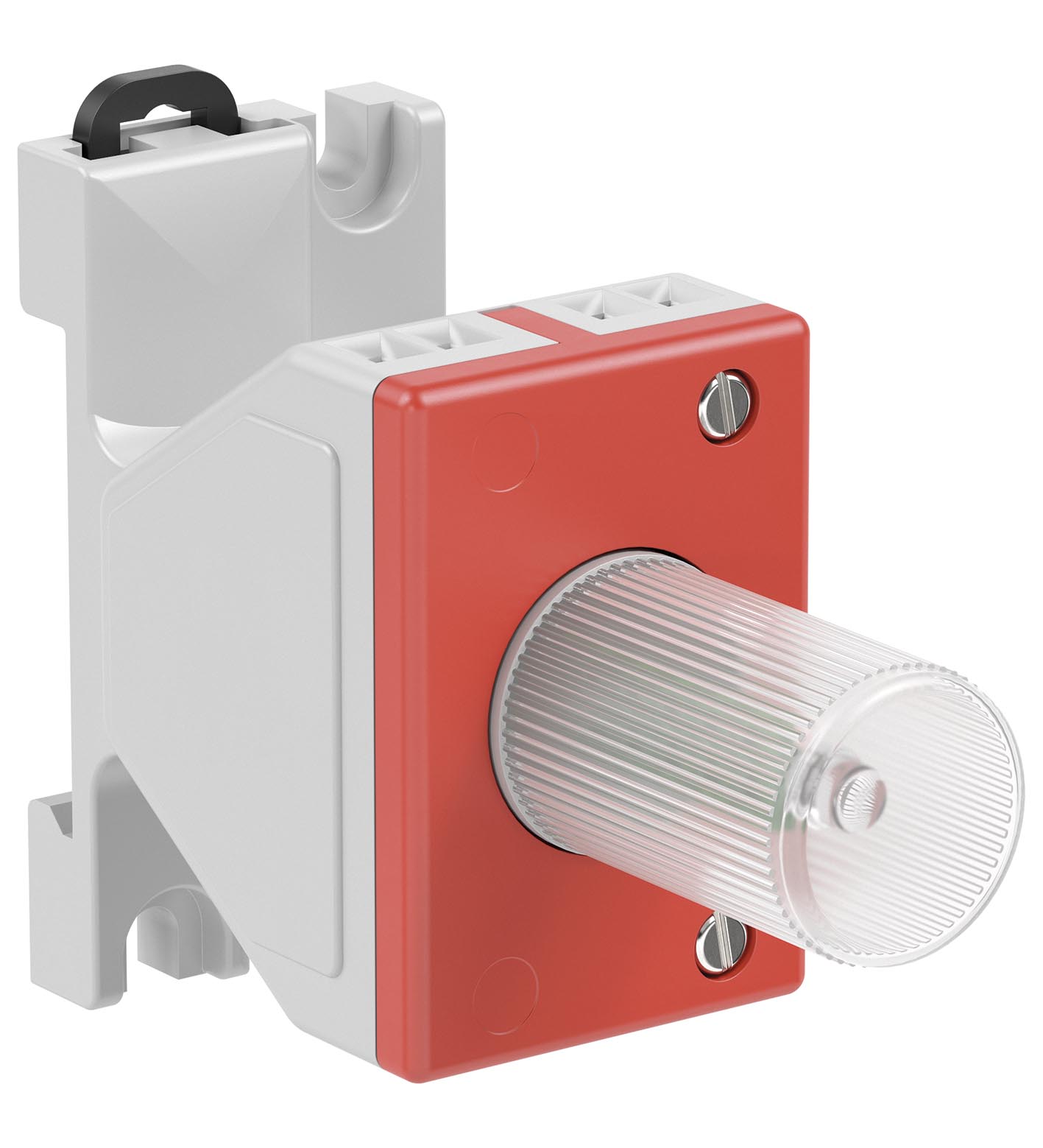

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 28 V max. AC/DC |
|---|---|
| Power consumption | 1 W max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | LED module |
| Rated operating voltage10 ... 28 V AC/DC | Rated operating voltage10 ... 28 V AC/DC |
| Terminal torque | 0.8 Nm |
| Rated operating voltage | 10 ... 28 V AC/DC |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 61 g |
| Dimensions | Dimensions |

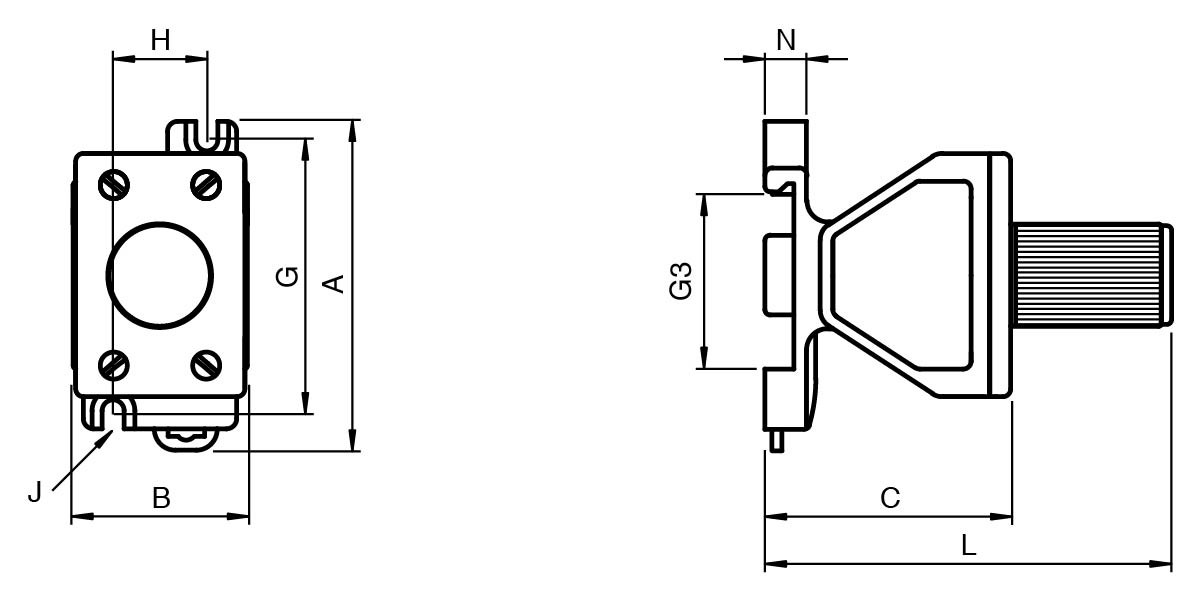

| External dimension (A)63 mmExternal dimension (B)33.4 mmExternal dimension (C)47 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)18 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mmTotal length (L)84 mm | External dimension (A)63 mmExternal dimension (B)33.4 mmExternal dimension (C)47 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)18 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mmTotal length (L)84 mm |
| Mounting | base-mounted DIN rail mounting |
| Housing | Polyamide (PA) |
| External dimension (A) | 63 mm |
| External dimension (B) | 33.4 mm |
| External dimension (C) | 47 mm |
| Mounting holes distance (G) | 52 mm |
| DIN mounting rail receptacle (G3) | 35.6 mm |
| Mounting holes distance (H) | 18 mm |
| Mounting holes diameter (J) | 4.2 mm |
| Thickness of mounting brackets (N) | 8 mm |
| Total length (L) | 84 mm |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 G Ex de IIC Gb | Marking II 2 G Ex de IIC Gb |
| Marking | II 2 G Ex de IIC Gb |
| IECEx approval | IECEx CML 16.0114U |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* |
