产品数据表
Datasheet
可按需获取获取并下载
TECHNICAL DATA
规格参数
Electrical specifications

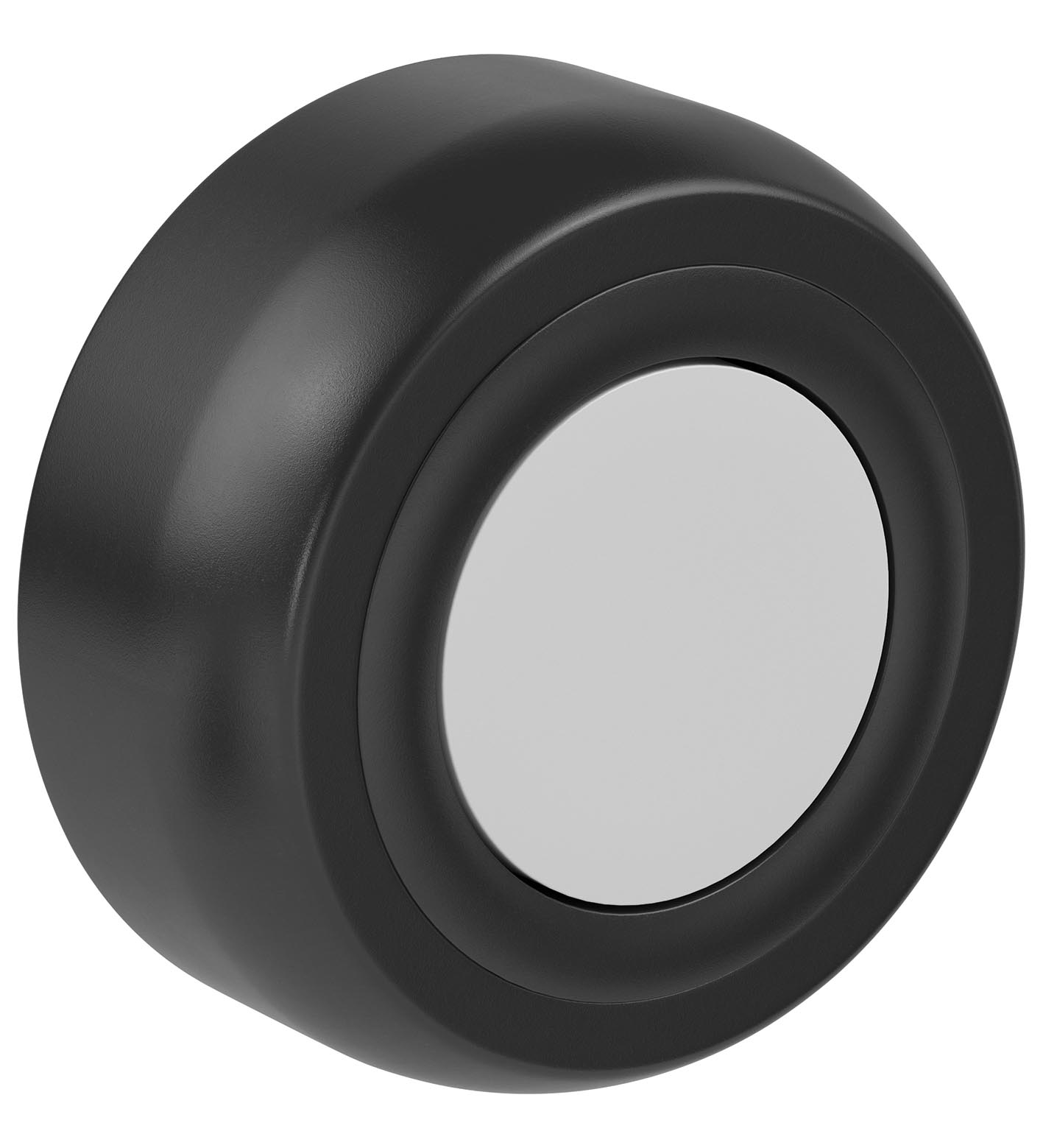

| Function | push button |
|---|---|
| Color of insertblue, blackOperator actionspring returnLabelingRESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black) | Color of insertblue, blackOperator actionspring returnLabelingRESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black) |
| Color of insert | blue, black |
| Operator action | spring return |
| Labeling | RESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black) |
| Degree of protection | IP66 |
| Material | Material |
| HousingPolyamide (PA)Finishinherent color blackWasher gasketsilicone | HousingPolyamide (PA)Finishinherent color blackWasher gasketsilicone |
| Mass | 25 g |
| Dimensions | Dimensions |

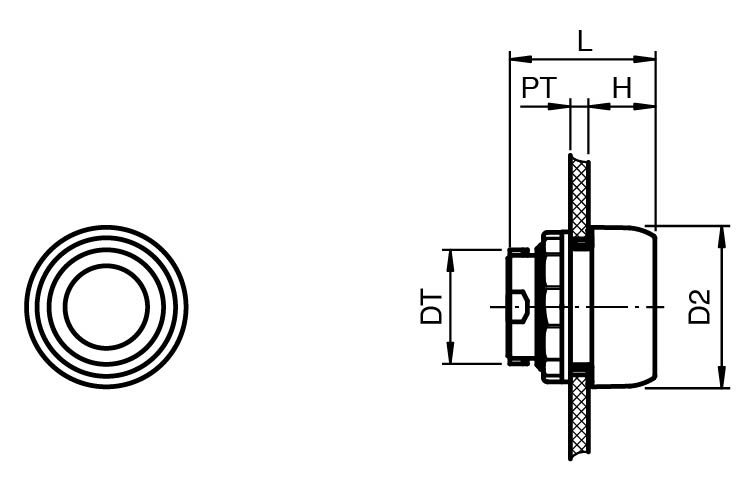

| Actuator head diameter (D2)39 mmPanel wall thickness (PT)1 ... 6 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)15.5 mmTotal length (L)35.4 mm | Actuator head diameter (D2)39 mmPanel wall thickness (PT)1 ... 6 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)15.5 mmTotal length (L)35.4 mm |
| Tightening torque | 2.8 ... 3.4 Nm |
| Mounting | use with base-mounted and cover-mounted contact modules |
| Housing | Polyamide (PA) |
| Finish | inherent color black |
| Washer gasket | silicone |
| Actuator head diameter (D2) | 39 mm |
| Panel wall thickness (PT) | 1 ... 6 mm |
| Diameter thru-hole (DT) | 30.6 mm |
| Length outside enclosure (H) | 15.5 mm |
| Total length (L) | 35.4 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Service temperature | -40 ... 65 °C (-40 ... 149 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 16.0114U |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* SR*.CS* GR.CS* |
| Optional accessories | CFP.TP |
