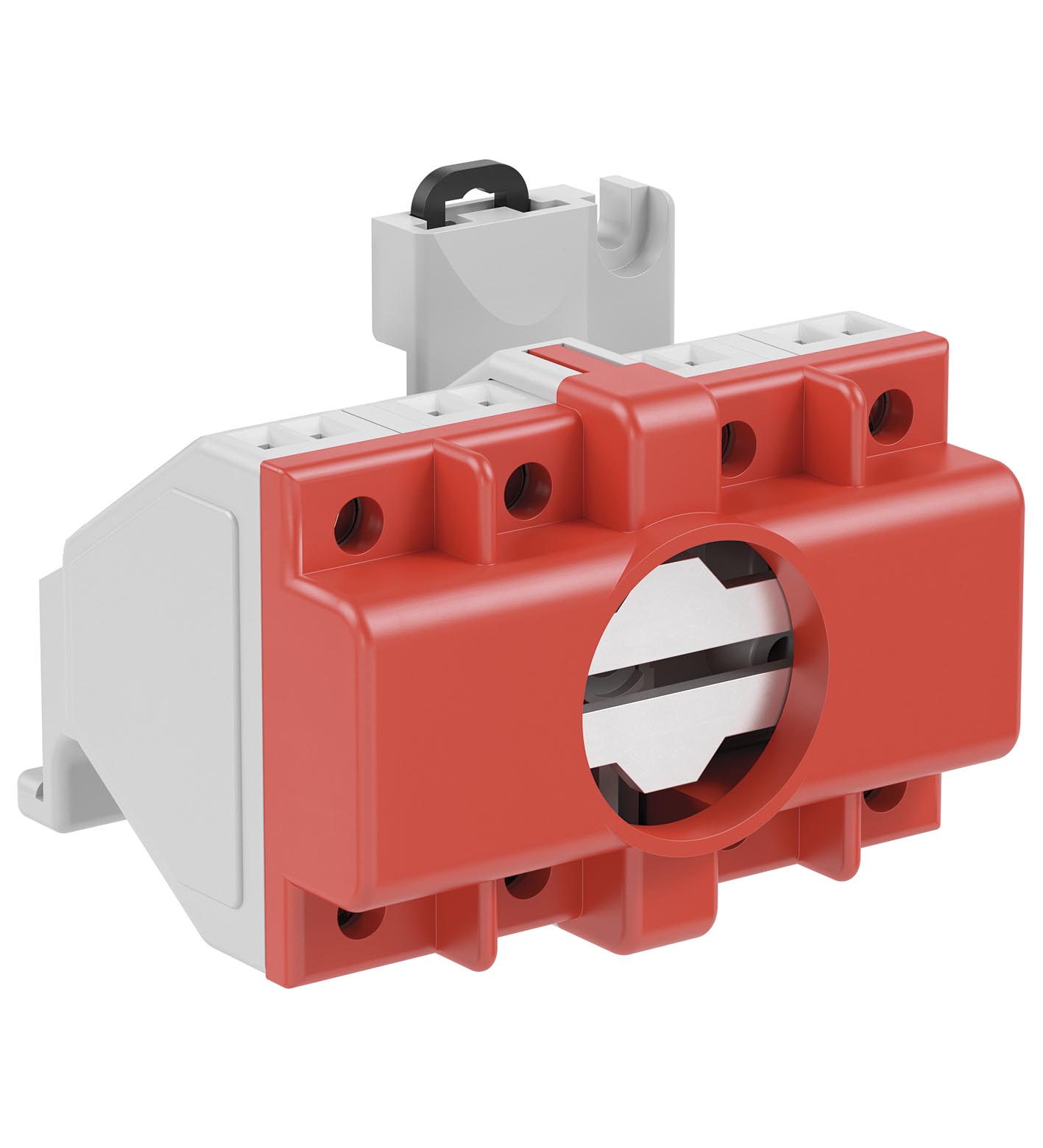

产品数据表
Datasheet
可按需获取获取并下载
TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 30 V max. |
|---|---|
| Operating current | 30 mA max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Resistor | R1 in series, R2 switch bypass R1 = 1 kΩ R2 = 10 kΩ |
| Function | contact block |
| Contact configuration2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mANumber of poles2 | Contact configuration2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mANumber of poles2 |
| Terminal torque | 0.8 Nm |
| Contact configuration | 2x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mA |
| Number of poles | 2 |
| Degree of protection | IP20 |
| Material | Material |
| HousingPolyamide (PA) | HousingPolyamide (PA) |
| Mass | 165 g |
| Mechanical life | 1000000 switching operations |
| Dimensions | Dimensions |

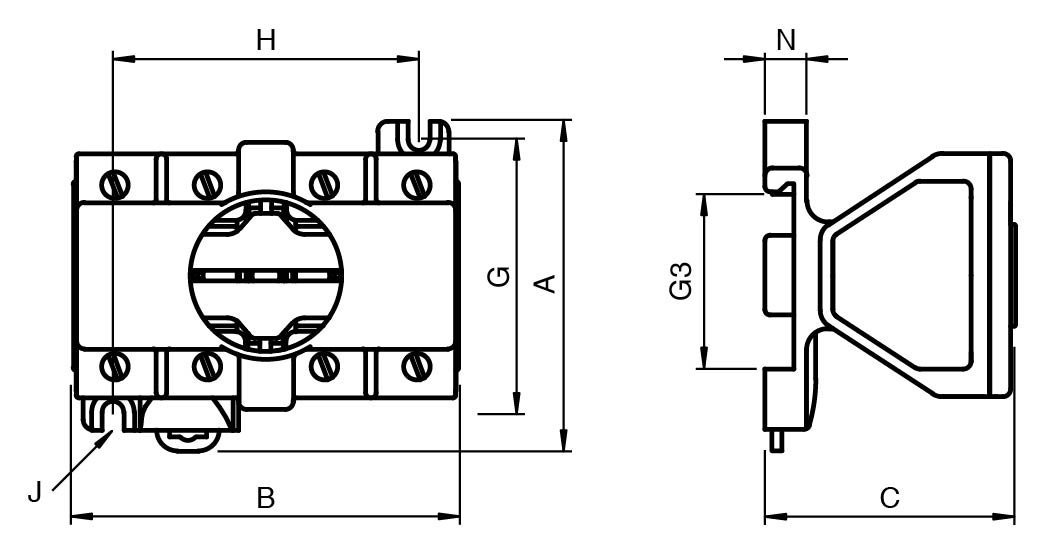

| External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58.6 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm | External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58.6 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm |
| Mounting | base-mounted DIN rail mounting |
| Housing | Polyamide (PA) |
| External dimension (A) | 63 mm |
| External dimension (B) | 74 mm |
| External dimension (C) | 58.6 mm |
| Mounting holes distance (G) | 52 mm |
| DIN mounting rail receptacle (G3) | 35.6 mm |
| Mounting holes distance (H) | 58 mm |
| Mounting holes diameter (J) | 4.2 mm |
| Thickness of mounting brackets (N) | 8 mm |
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
| EU-type examination certificate | CML 19 ATEX 1177U |
| Marking II 2 G Ex db eb IIC Gb | Marking II 2 G Ex db eb IIC Gb |
| Marking | II 2 G Ex db eb IIC Gb |
| IECEx approval | IECEx CML 19.0053U |
| Degree of protection | EN 60529 |
| CE marking | 2829 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* |
| Optional accessories | Optional accessories |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
