TECHNICAL DATA
规格参数
Electrical specifications
| Function | Circular viewing window |
|---|---|
| Colorclear | Colorclear |
| Color | clear |
| Degree of protection | IP66 |
| Material | Polyamide (PA) |
| Washer gasketsilicone | Washer gasketsilicone |
| Mass | 48 g |

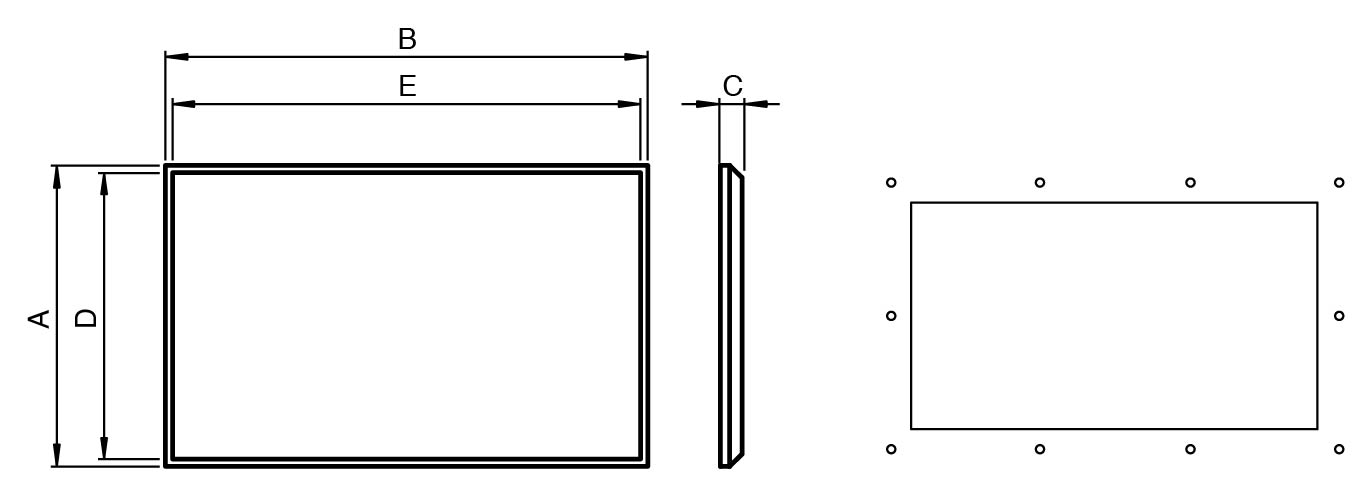

| Dimensions | Dimensions |
| External dimension (A)166 mmExternal dimension (B)266 mmExternal dimension (C)12 mmInternal dimension (D)125 mmInternal dimension (E)224 mm | External dimension (A)166 mmExternal dimension (B)266 mmExternal dimension (C)12 mmInternal dimension (D)125 mmInternal dimension (E)224 mm |
| Tightening torque | 1.5 ... 2 Nm |
| Washer gasket | silicone |
| External dimension (A) | 166 mm |
| External dimension (B) | 266 mm |
| External dimension (C) | 12 mm |
| Internal dimension (D) | 125 mm |
| Internal dimension (E) | 224 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 16.0114U |
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
