TECHNICAL DATA
规格参数
Electrical specifications

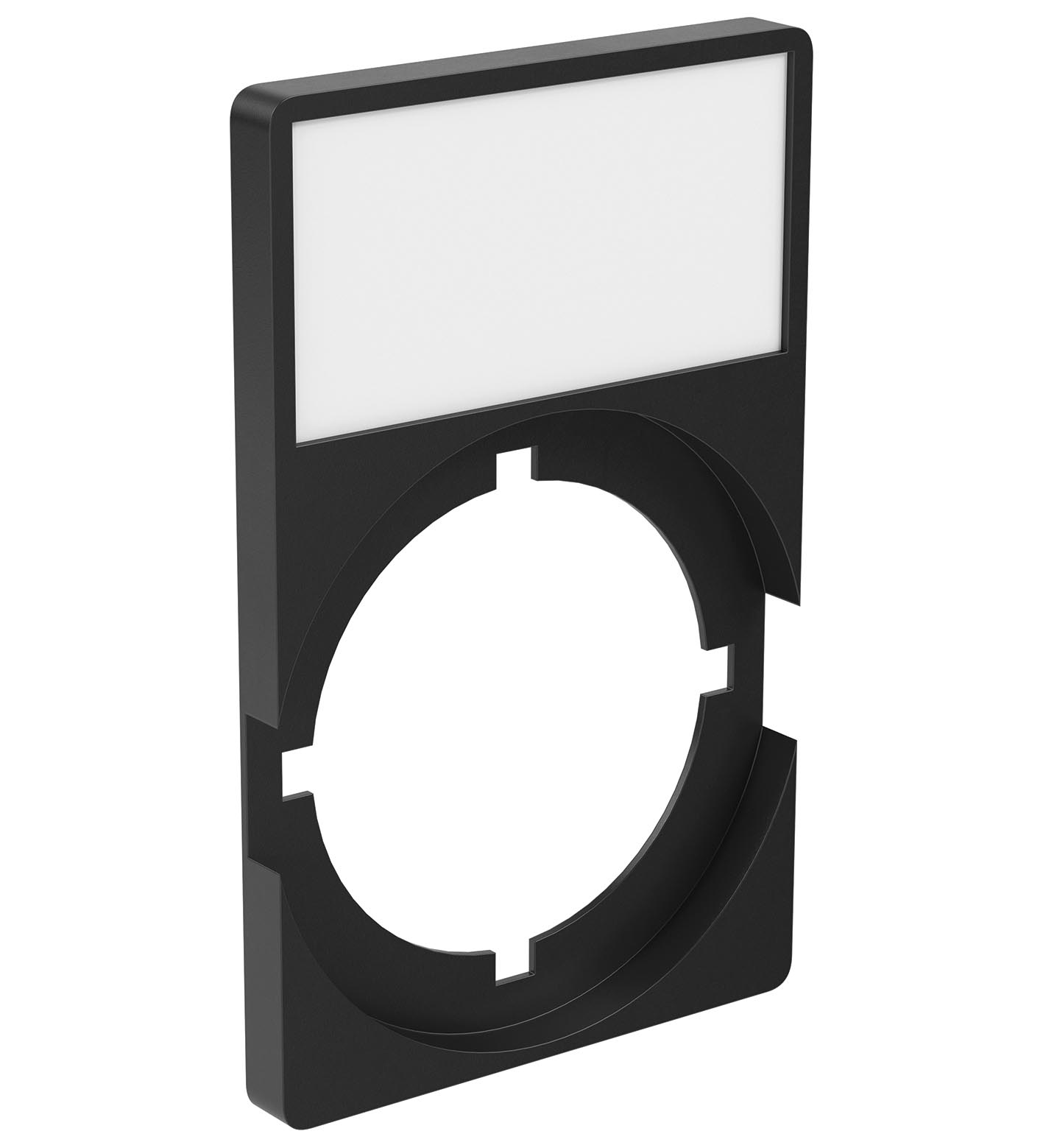

| Function | Label holder, small |
|---|---|
| Colorblack | Colorblack |
| Color | black |
| Degree of protection | IP66 |
| Material | Polyamide (PA) |
| Mass | 3 g |

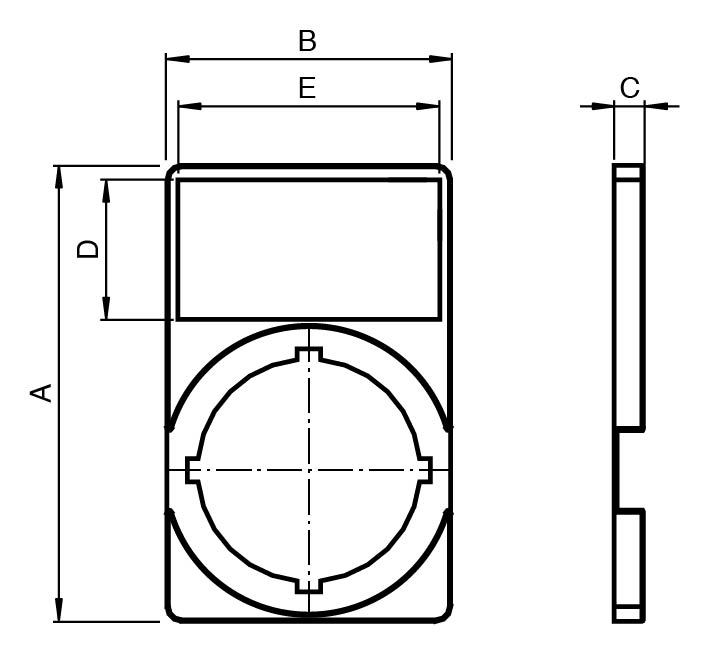

| Dimensions | Dimensions |
| External dimension (A)61.5 mmExternal dimension (B)39 mmExternal dimension (C)4 mmInternal dimension (D)18 mmInternal dimension (E)35 mm | External dimension (A)61.5 mmExternal dimension (B)39 mmExternal dimension (C)4 mmInternal dimension (D)18 mmInternal dimension (E)35 mm |
| Mounting | use with base-mounted and cover-mounted contact modules |
| External dimension (A) | 61.5 mm |
| External dimension (B) | 39 mm |
| External dimension (C) | 4 mm |
| Internal dimension (D) | 18 mm |
| Internal dimension (E) | 35 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 16.0114U |
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
