TECHNICAL DATA
规格参数
Electrical specifications

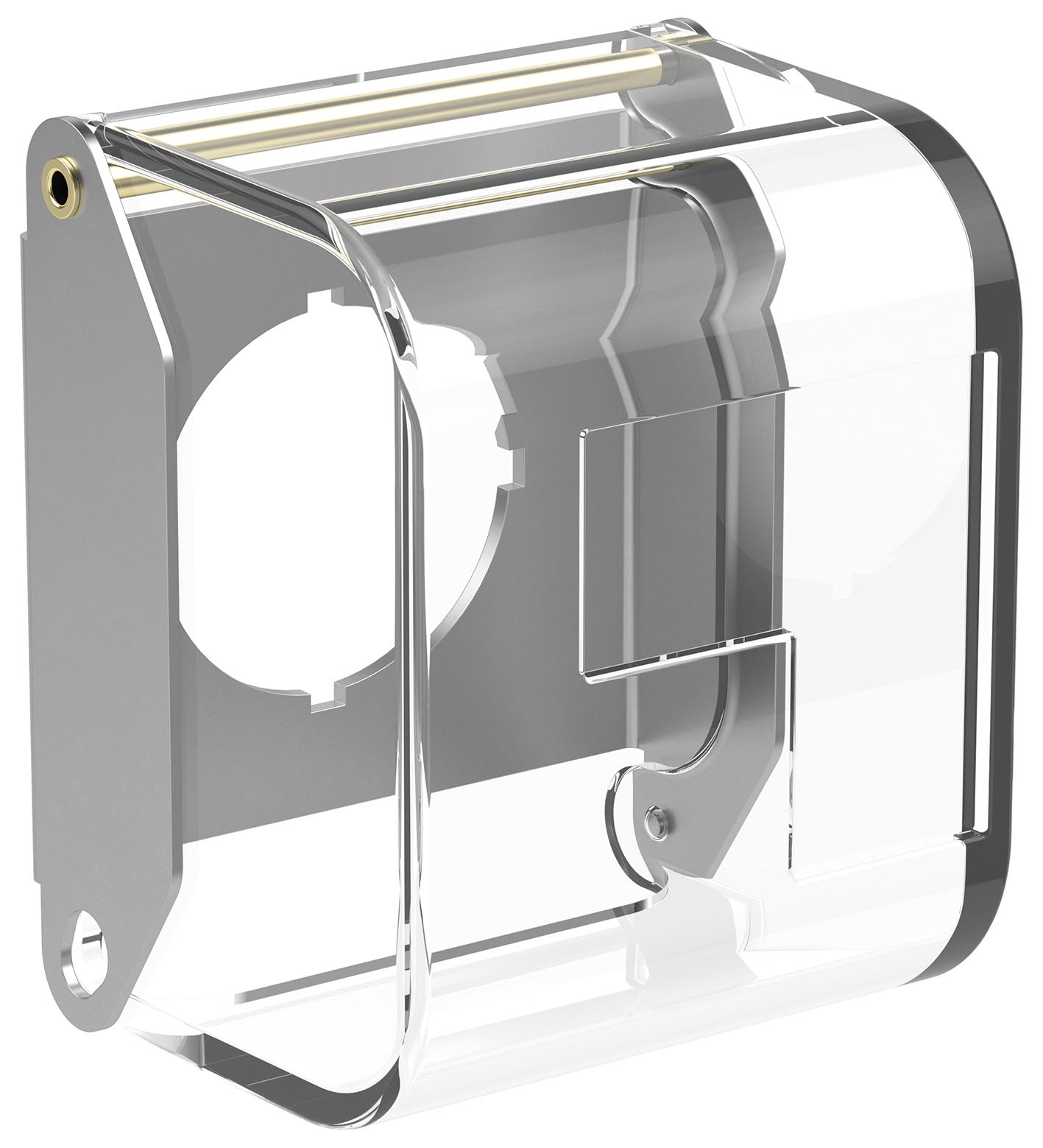

| Function | Large actuator head protective flap, cover-mounted |
|---|---|
| Colorclear | Colorclear |
| Color | clear |
| Degree of protection | IP66 |
| Material | Polycarbonate |
| Mass | 50 g |
| Dimensions | Dimensions |
| External dimension (A)70.2 mmExternal dimension (B)58 mmExternal dimension (C)50 mm | External dimension (A)70.2 mmExternal dimension (B)58 mmExternal dimension (C)50 mm |
| Mounting | use with cover-mounted contact modules |
| External dimension (A) | 70.2 mm |
| External dimension (B) | 58 mm |
| External dimension (C) | 50 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 16.0114U |
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
