TECHNICAL DATA
规格参数
Electrical specifications

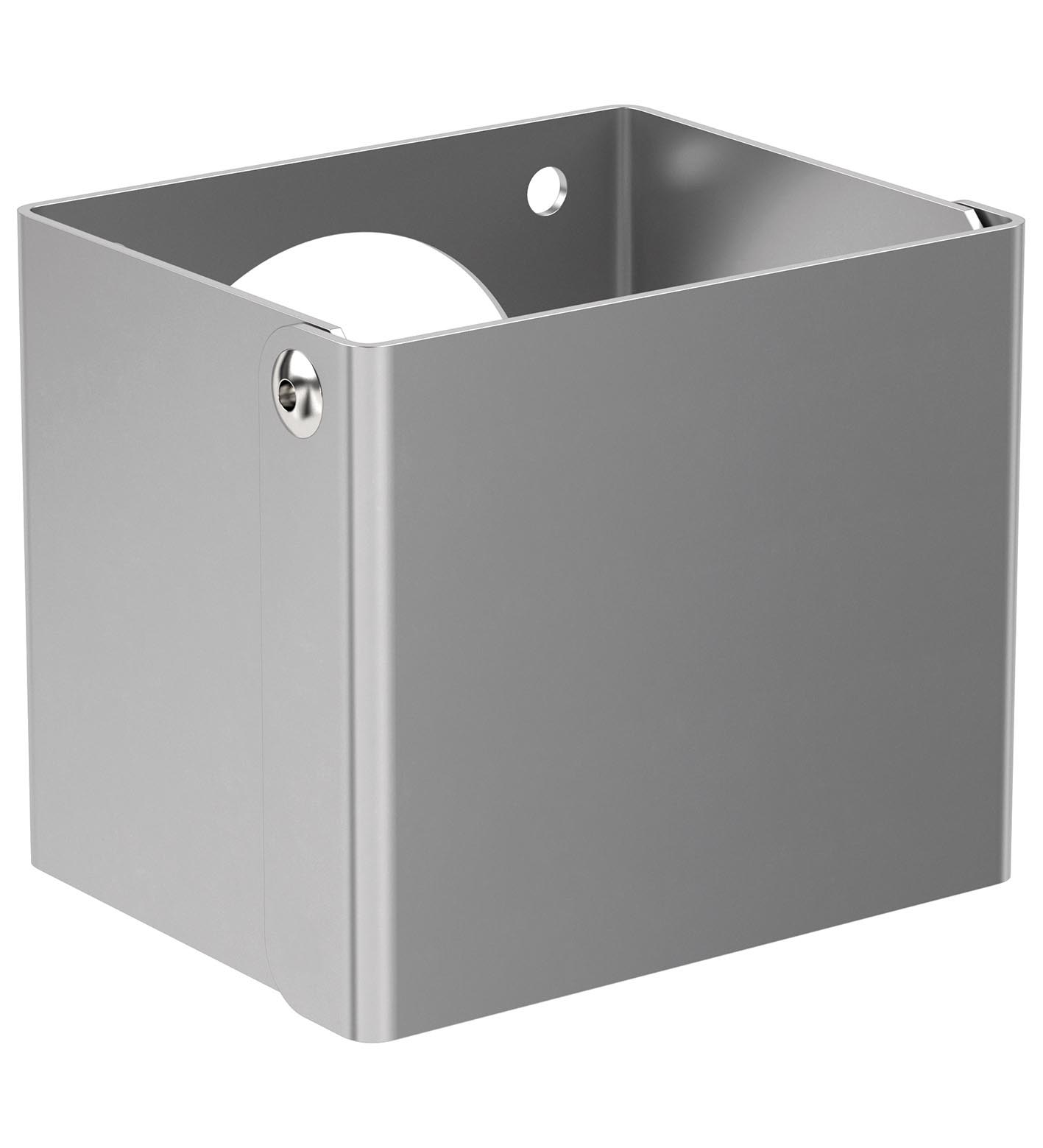

| Function | Large actuator head protective flap |
|---|---|
| ColorSilver | ColorSilver |
| Color | Silver |
| Degree of protection | IP66 |
| Material | Stainless steel 1.4401 / AISI 316 |
| Mass | 133 g |

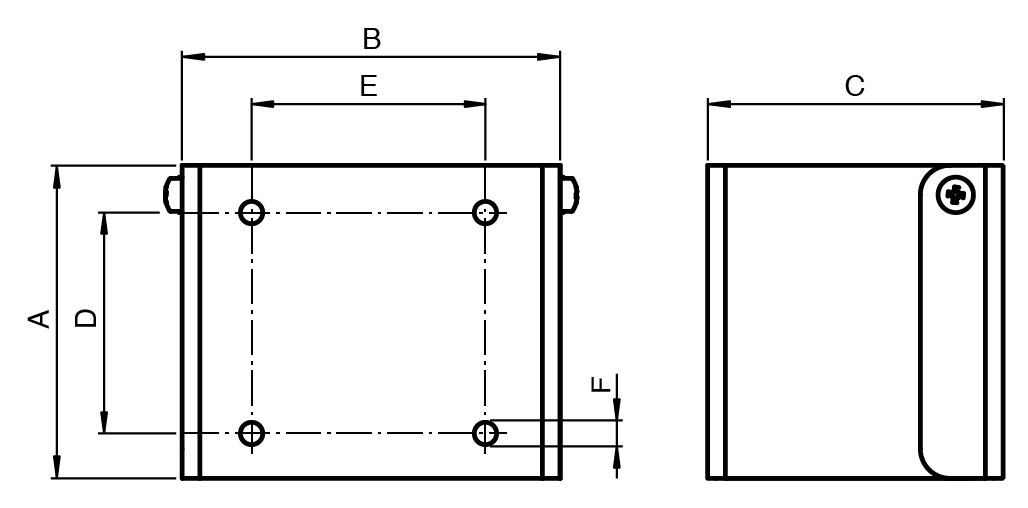

| Dimensions | Dimensions |
| External dimension (A)53 mmExternal dimension (B)70 mmExternal dimension (C)50 mmInternal dimension (D)40 mmInternal dimension (E)40 mmInternal dimension (F)4.2 mm | External dimension (A)53 mmExternal dimension (B)70 mmExternal dimension (C)50 mmInternal dimension (D)40 mmInternal dimension (E)40 mmInternal dimension (F)4.2 mm |
| Tightening torque | 1.3 ... 1.5 Nm |
| Mounting | use with base-mounted and cover-mounted contact modules |
| External dimension (A) | 53 mm |
| External dimension (B) | 70 mm |
| External dimension (C) | 50 mm |
| Internal dimension (D) | 40 mm |
| Internal dimension (E) | 40 mm |
| Internal dimension (F) | 4.2 mm |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| EU-type examination certificate | CML 16 ATEX 3339U |
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
