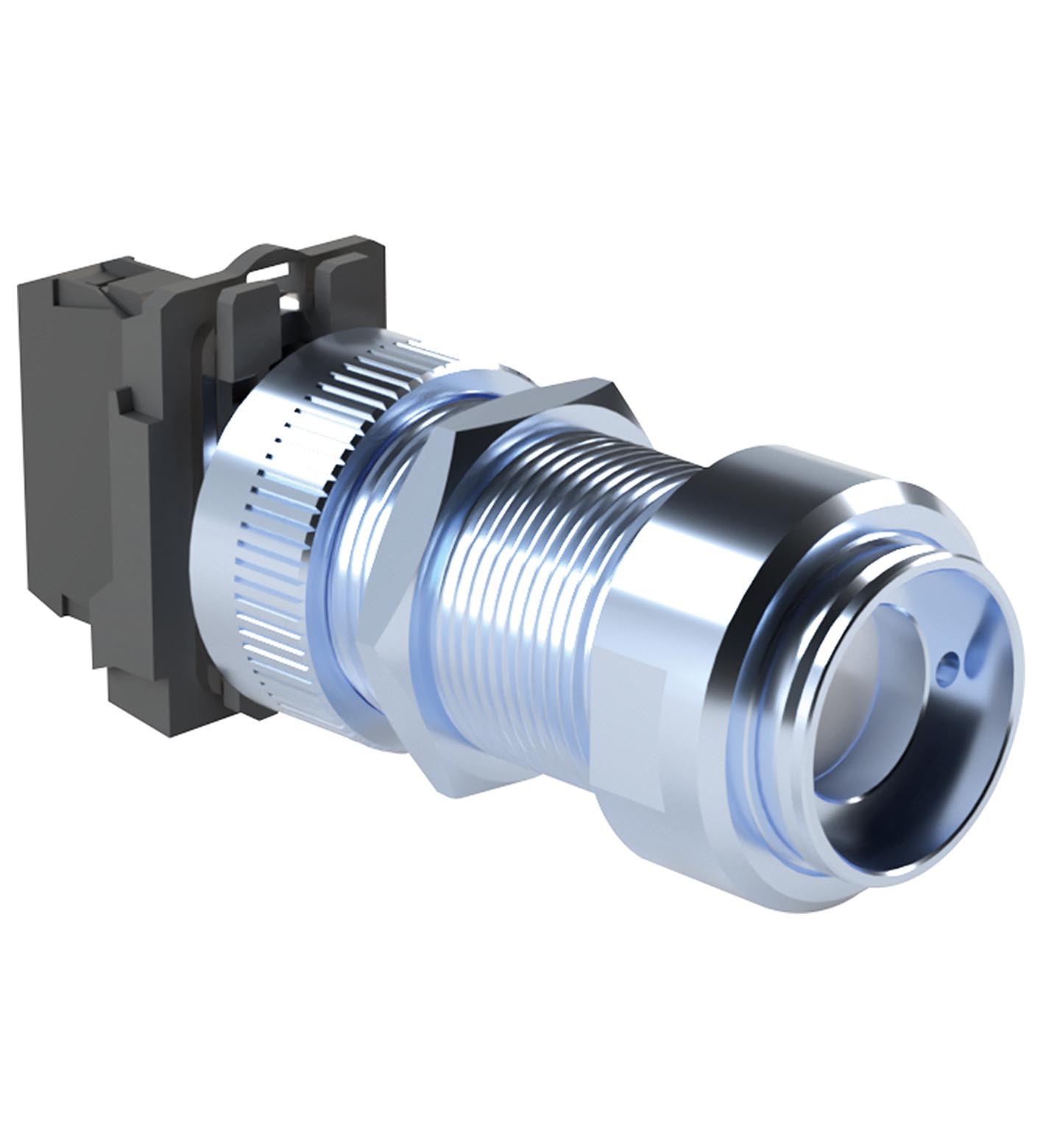

TECHNICAL DATA
规格参数

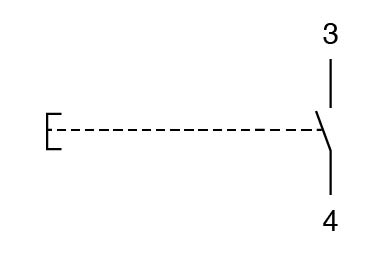

Electrical specifications
| Operating voltage | 24 V max. AC/DC |
|---|---|
| Operating current | 11 mA max. |
| Terminal capacity | 1.5 mm2 |
| Terminal torque1.2 Nm | Terminal torque1.2 Nm |
| Function | Pilot light with module |
| Lens colorSee accessories sectionLabelingnone | Lens colorSee accessories sectionLabelingnone |
| Terminal torque | 1.2 Nm |
| Lens color | See accessories section |
| Labeling | none |
| Thread size (TD) | M28 |
| Degree of protection | IP66 |
| Material | Material |
| HousingPolyamide (PA) , brass nickel-platedFinishinherent color black | HousingPolyamide (PA) , brass nickel-platedFinishinherent color black |
| Mass | 58 g |
| Dimensions | Dimensions |

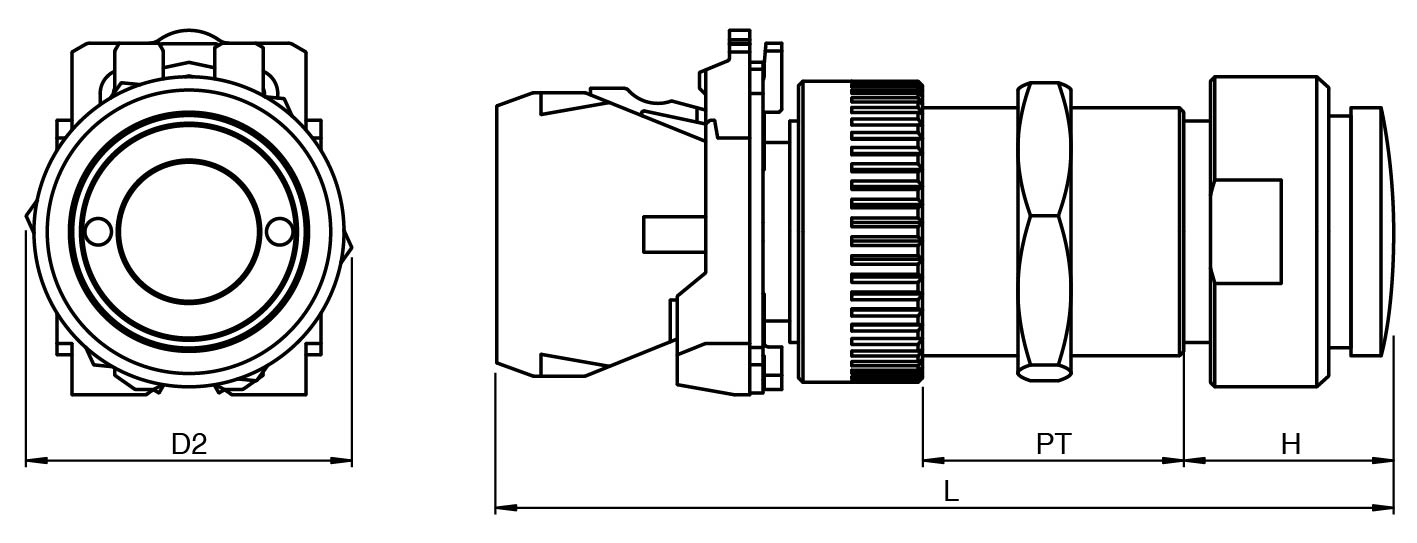

| Actuator head diameter (D2)33.5 mmPanel wall thickness (PT)15 ... 30 mmLength outside enclosure (H)33 mmTotal length (L)109.5 mm | Actuator head diameter (D2)33.5 mmPanel wall thickness (PT)15 ... 30 mmLength outside enclosure (H)33 mmTotal length (L)109.5 mm |
| Tightening torque | Actuator head : 2 Nm |
| Mounting | use with lid-mounted contact modules |
| Housing | Polyamide (PA) , brass nickel-plated |
| Finish | inherent color black |
| Actuator head diameter (D2) | 33.5 mm |
| Panel wall thickness (PT) | 15 ... 30 mm |
| Length outside enclosure (H) | 33 mm |
| Total length (L) | 109.5 mm |
| Service temperature | -40 ... 70 °C (-40 ... 158 °F) |
| EU-type examination certificate | CML 17 ATEX 1341U |
| Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex db IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 17.0181U |
| UKCA approval | CML 21 UKEX 1422U |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | EJB , EJBX , GUB , GUBX |
| Optional accessories | CFS.LR.K50.SP CFS.LG.K50.SP CFS.LO.K50.SP CFS.LW.K50.SP |
