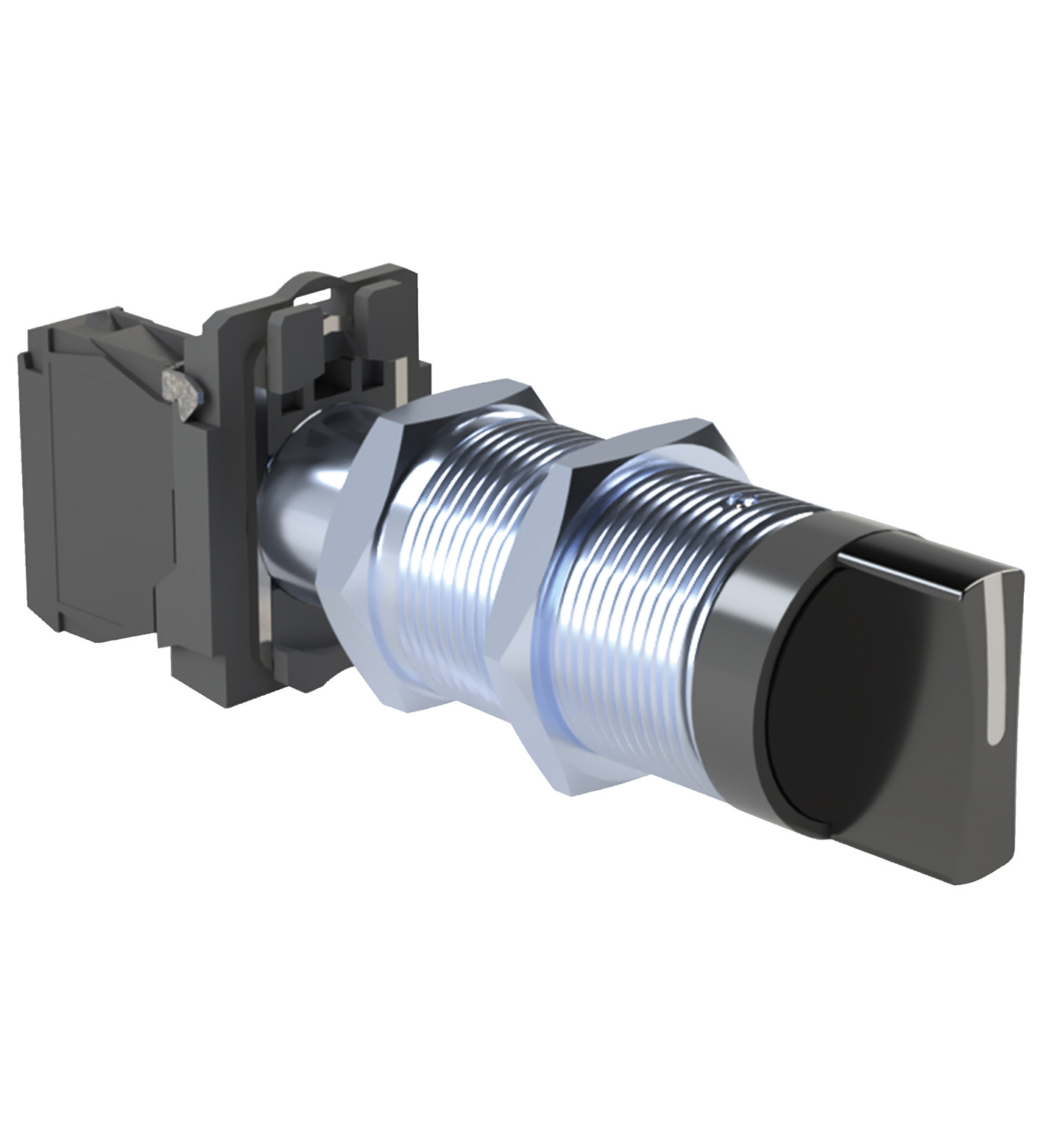

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 6 A max. |
| Terminal capacity | 2x 1.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | rotary actuator contact block |
| Contact configuration1x NO Switching configuration2 position changeover with left OFFUsage categoryAC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 ANumber of poles1Operator actionengage - engageLabelingnone | Contact configuration1x NO Switching configuration2 position changeover with left OFFUsage categoryAC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 ANumber of poles1Operator actionengage - engageLabelingnone |
| Terminal torque | 0.8 Nm |
| Contact configuration | 1x NO |

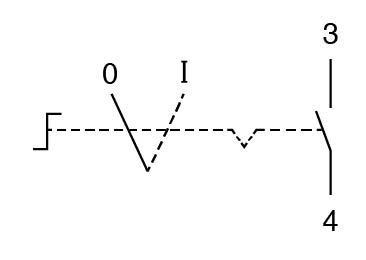

| Switching configuration | 2 position changeover with left OFF |
| Usage category | AC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 A |
| Number of poles | 1 |
| Operator action | engage - engage |
| Labeling | none |
| Thread size (TD) | M28 |
| Degree of protection | IP66 |
| Material | Material |
| HousingPolyamide (PA) , brass nickel-platedFinishinherent color black | HousingPolyamide (PA) , brass nickel-platedFinishinherent color black |
| Mass | 125 g |
| Mechanical life | 10000000 switching operations |
| Dimensions | Dimensions |

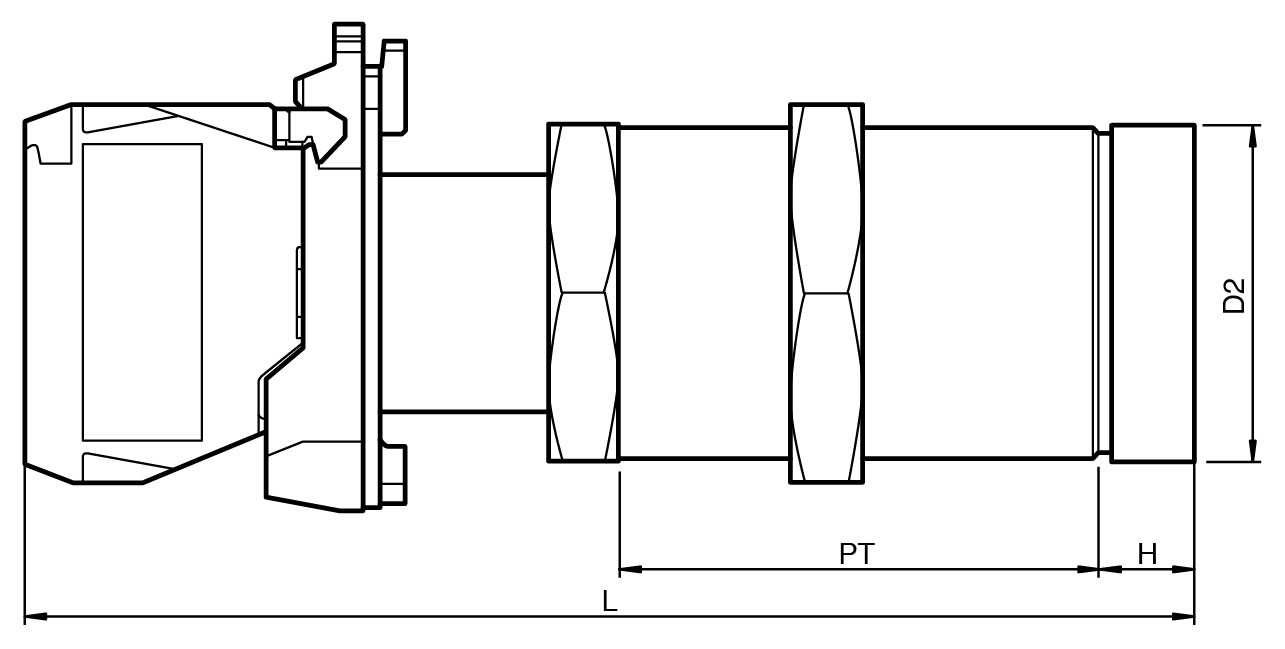

| Actuator head diameter (D2)28.5 mmPanel wall thickness (PT)10 ... 37.5 mmLength outside enclosure (H)22 mmTotal length (L)114 mm | Actuator head diameter (D2)28.5 mmPanel wall thickness (PT)10 ... 37.5 mmLength outside enclosure (H)22 mmTotal length (L)114 mm |
| Tightening torque | 1.2 Nm |
| Mounting | use with lid-mounted contact modules |
| Housing | Polyamide (PA) , brass nickel-plated |
| Finish | inherent color black |
| Actuator head diameter (D2) | 28.5 mm |
| Panel wall thickness (PT) | 10 ... 37.5 mm |
| Length outside enclosure (H) | 22 mm |
| Total length (L) | 114 mm |
| Service temperature | -40 ... 70 °C (-40 ... 158 °F) |
| EU-type examination certificate | CML 17 ATEX 1341U |
| Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex db IIC Gb Ex tb IIIC Db |
| IECEx approval | IECEx CML 17.0181U |
| UKCA approval | CML 21 UKEX 1422U |
| Degree of protection | EN 60529 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | EJB , EJBX |
| Optional accessories | CFS.CB01.K50.SP CFS.CB10.K50.SP |
