TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1500 V DC / 1000 V AC max. |
|---|---|
| Operating current | 1600 A max. |

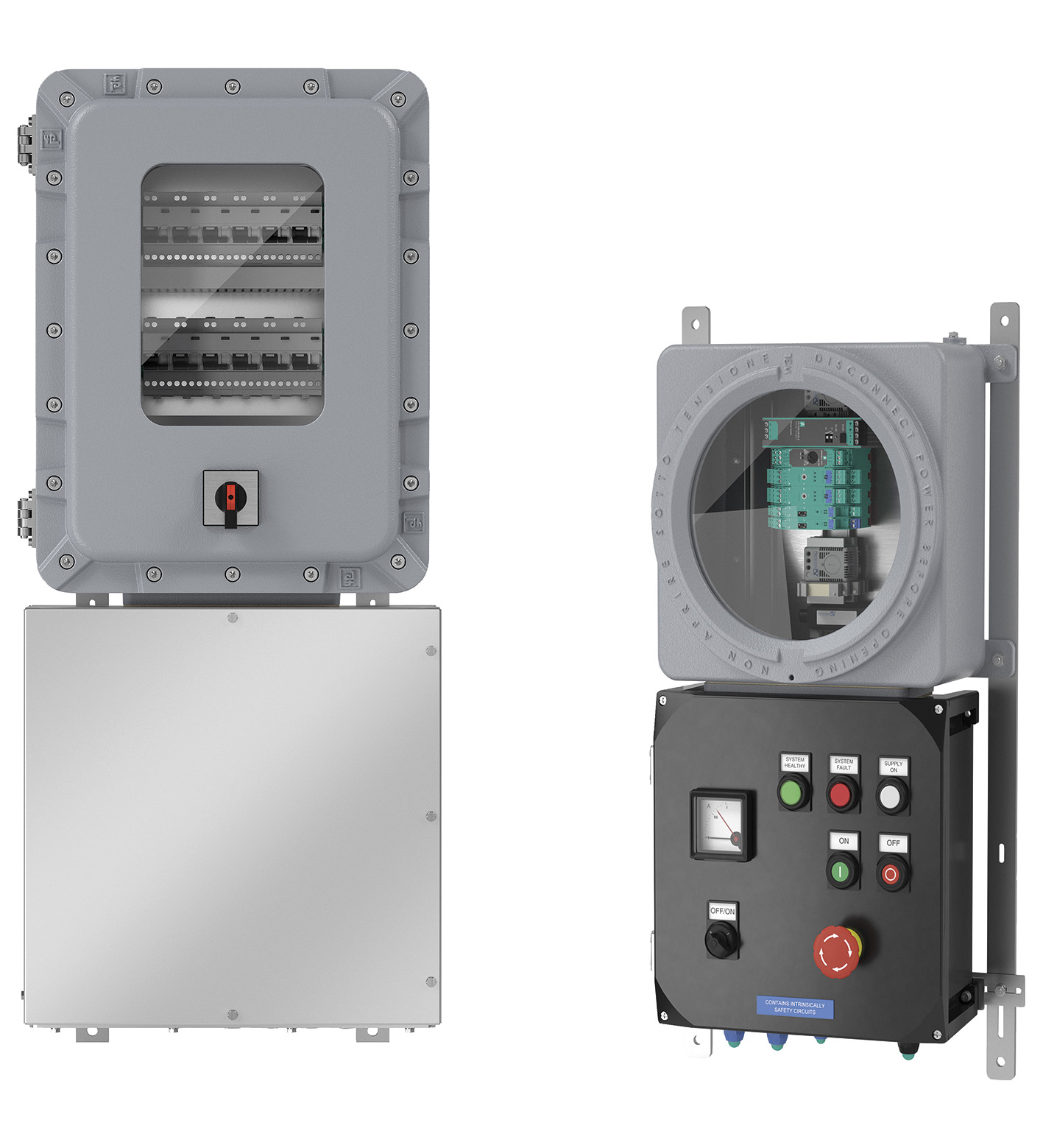

| Enclosure range | Details of Ex d enclosure see datasheet EJB* / EJBX* / GUB* / GUBX*Details of Ex e enclosure see datasheet SR.T* / SR.CS / *FXLS*.T* / FXLS*.CS* / GR.T* / GR.CS* |
| Degree of protection | IP66 |
| Material | Material |
| EnclosureEx d enclosure: aluminum alloy or AISI 316L stainless steelEx e enclosure: AISI 316L stainless steel or GRPGlassoptional thermo-resistant tempered glassFinishEx d enclosure: epoxy coated RAL 7005 (grey) or shot peenedEx e enclosure: brushed or electropolishedSealsilicone | EnclosureEx d enclosure: aluminum alloy or AISI 316L stainless steelEx e enclosure: AISI 316L stainless steel or GRPGlassoptional thermo-resistant tempered glassFinishEx d enclosure: epoxy coated RAL 7005 (grey) or shot peenedEx e enclosure: brushed or electropolishedSealsilicone |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see data table |
| Grounding | M10 internal/external brass grounding bolt through enclosure body |
| Enclosure | Ex d enclosure: aluminum alloy or AISI 316L stainless steelEx e enclosure: AISI 316L stainless steel or GRP |
| Glass | optional thermo-resistant tempered glass |
| Finish | Ex d enclosure: epoxy coated RAL 7005 (grey) or shot peenedEx e enclosure: brushed or electropolished |
| Seal | silicone |
| Ambient temperature | -50 ... 60 °C (-58 ... 140 °F) depending on integrated components |
| EU-type examination certificate | see datasheets of relevant enclosures |
| Marking II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbSR.* / FXL.* / GR.* Termination and Control Stations:Ex eb IIC T6, T5, T4 GbEx db eb IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx db eb ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C DbMaximum power dissipationsee datasheets of relevant enclosures | Marking II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbSR.* / FXL.* / GR.* Termination and Control Stations:Ex eb IIC T6, T5, T4 GbEx db eb IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx db eb ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C DbMaximum power dissipationsee datasheets of relevant enclosures |
| Marking | II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbSR.* / FXL.* / GR.* Termination and Control Stations:Ex eb IIC T6, T5, T4 GbEx db eb IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx db eb ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C Db |
| Maximum power dissipation | see datasheets of relevant enclosures |
| IECEx approval | see datasheets of relevant enclosures |
| UKCA approval | see datasheets of relevant enclosures |
| Further approvals | available on request |
| Degree of protection | EN60529 |
| CE marking | 0080 or 0102, see type label |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
