TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 690 V AC / DC max. , depending on size for ATEX / IECEx |
|---|---|
| Operating current | 350 A max. , depending on size and certification |
| Enclosure cover | fully detachable , optional hinges |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry | Cable entry |
| Number of cable entries2 x M20 for standard variants As per specification for engineered solutions | Number of cable entries2 x M20 for standard variants As per specification for engineered solutions |
| Material | Material |
| Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional | Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional |
| Mass | depending on integrated components and selected enclosure size |
| Shock resistance | IK09 (from GR.18.18.10 and larger, IK09, IK10 apply) |

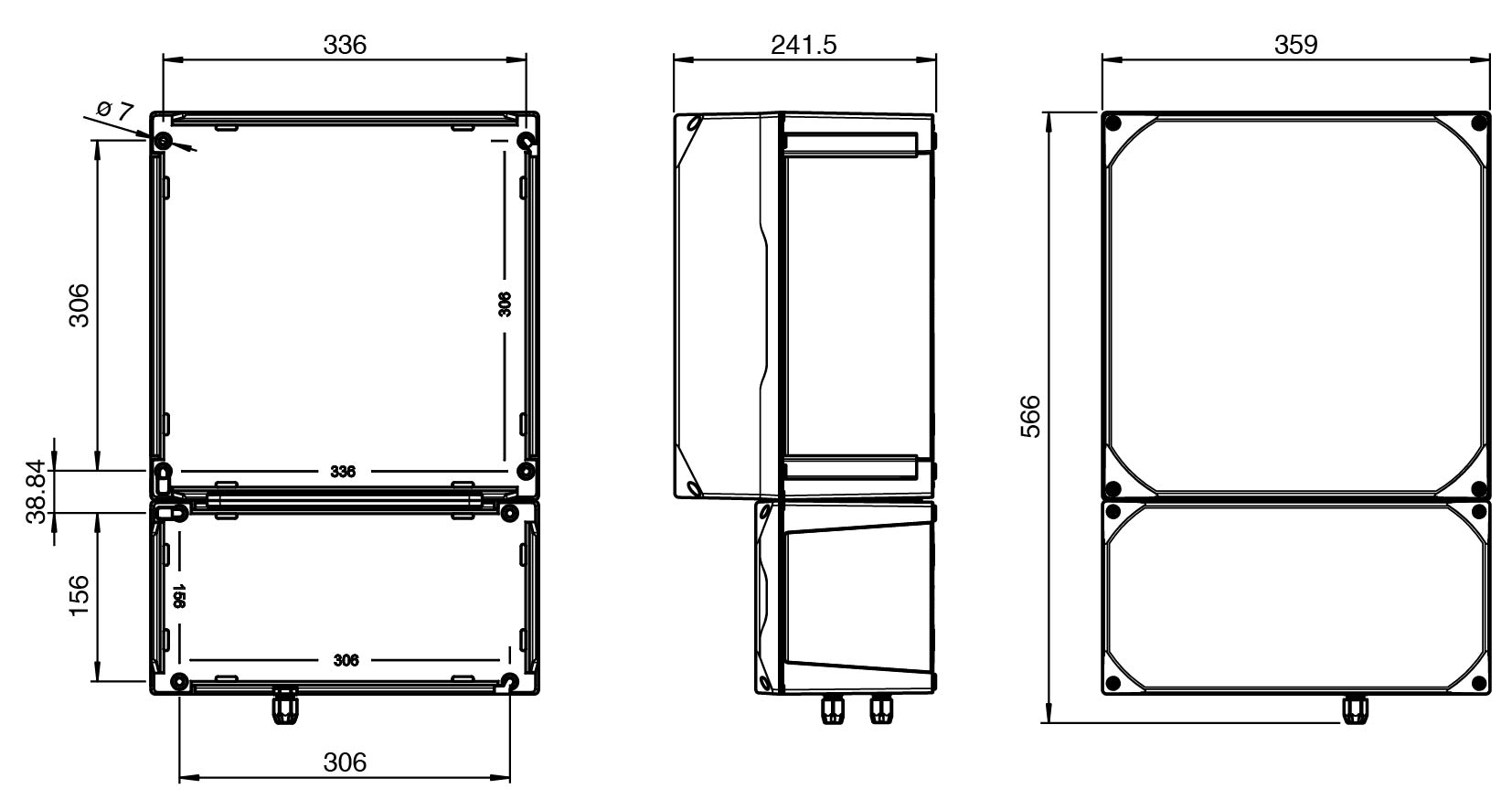

| Dimensions | depending on integrated components see datasheets of relevant enclosures values might differ slightly due to casting and manufacturing tolerances |
| Mounting | wall mounting |
| Grounding | none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt |
| Number of cable entries | 2 x M20 for standard variants As per specification for engineered solutions |
| Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Finish | inherent color black |
| Grounding plate | 2 mm brass optional |
| Ambient temperature | depending on integrated components |
| EU-type examination certificate | FIDI 23 ATEX 0082X |
| Marking II 3G Ex nR IIC T6...T4 GcEx II 3G Ex db nR [ia] IIC T6...T4 GcEx II 3G Ex nR [op is] IIC T6...T4 Gc | Marking II 3G Ex nR IIC T6...T4 GcEx II 3G Ex db nR [ia] IIC T6...T4 GcEx II 3G Ex nR [op is] IIC T6...T4 Gc |
| Marking | II 3G Ex nR IIC T6...T4 GcEx II 3G Ex db nR [ia] IIC T6...T4 GcEx II 3G Ex nR [op is] IIC T6...T4 Gc |
| Further approvals | available on request |
| Degree of protection | EN60529 |
| CE marking | 0102 |

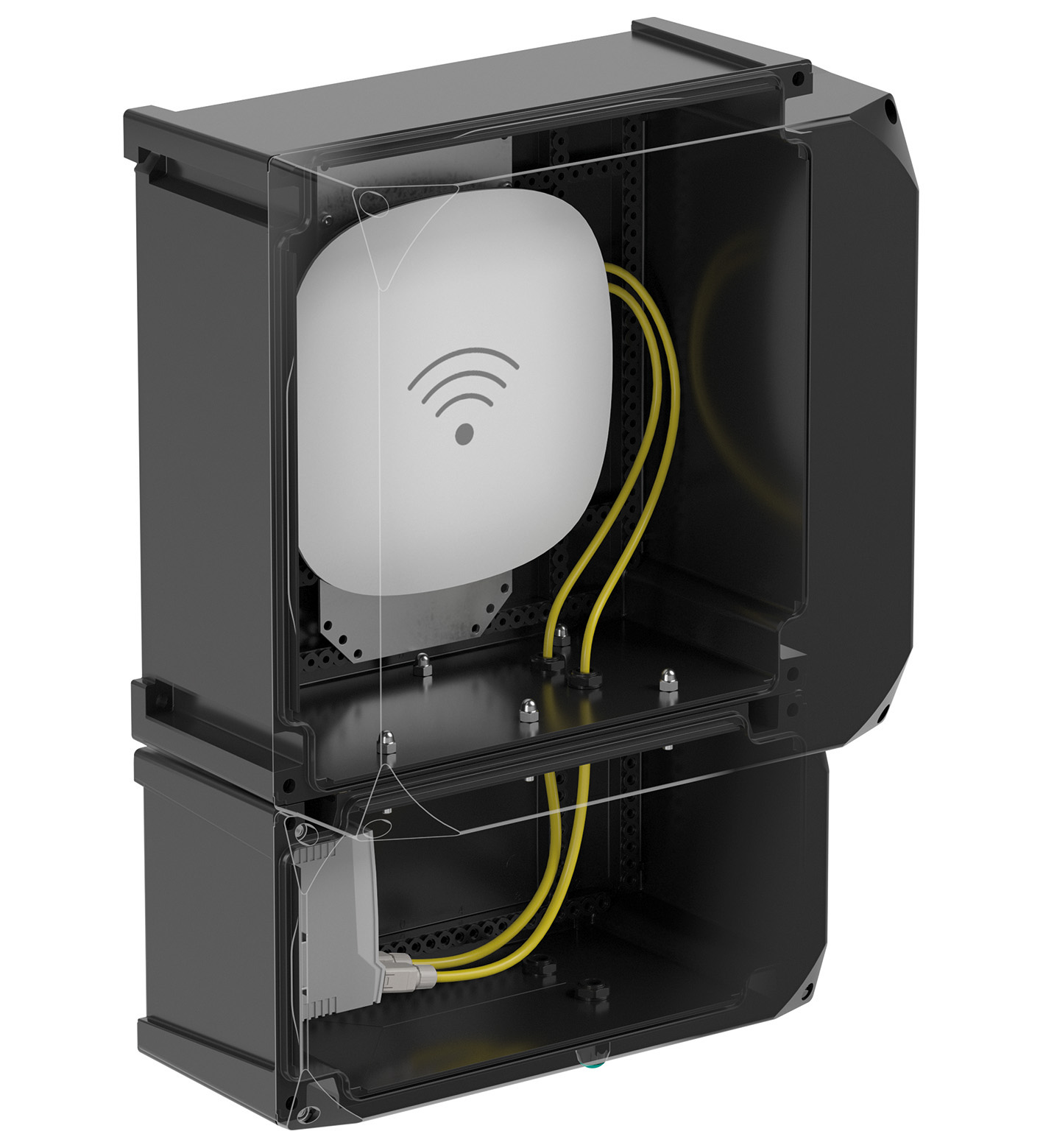

| Order information | This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Installed components | All major WI-FI Access Point vendors such as Aruba, Cisco, ect. |
| Optional accessories | M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
