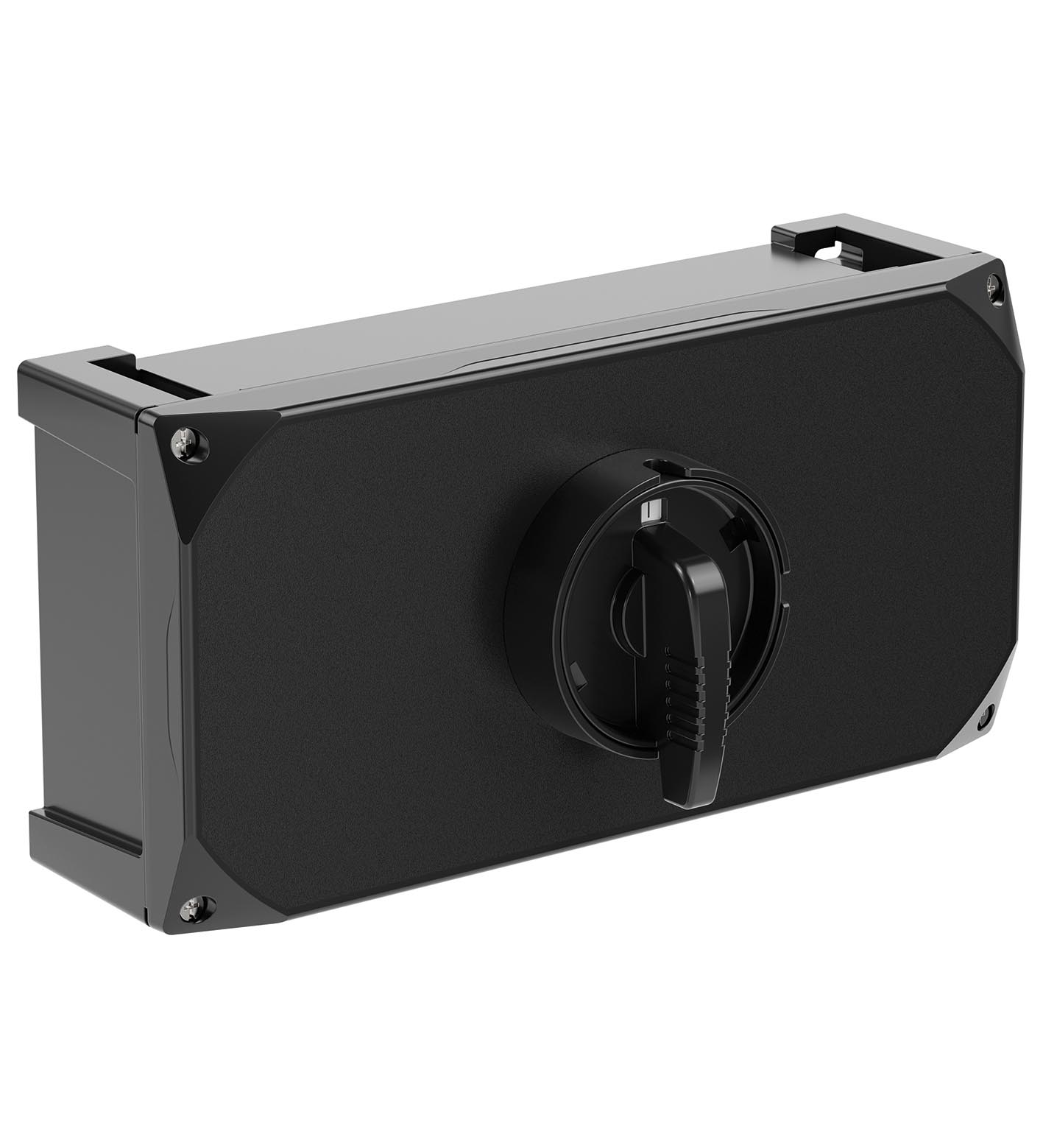

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 690 V max. |
|---|---|
| Rated impulse withstand voltage | 6 kV |
| Rated frequency | 50/60 Hz |
| Short circuit current limitation | recommended: 63 A, gG |
| Operating current | 40 A max. |
| Terminal capacity | Terminal capacity |
| Main terminals capacity2x 6 ... 10 mm2Main terminals torque3.5 NmGrounding terminals capacity2x 6 ... 10 mm2Grounding terminals torque3.5 Nm | Main terminals capacity2x 6 ... 10 mm2Main terminals torque3.5 NmGrounding terminals capacity2x 6 ... 10 mm2Grounding terminals torque3.5 Nm |
| Rated insulation voltage | 800 V |
| Function | switch disconnector |
| ColorblackContact configuration3x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 ANumber of poles3Operator actionengage - engageLockablein 'OFF' position threefold padlockableLabeling0 - I | ColorblackContact configuration3x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 ANumber of poles3Operator actionengage - engageLockablein 'OFF' position threefold padlockableLabeling0 - I |
| Main terminals capacity | 2x 6 ... 10 mm2 |
| Main terminals torque | 3.5 Nm |
| Grounding terminals capacity | 2x 6 ... 10 mm2 |
| Grounding terminals torque | 3.5 Nm |
| Color | black |
| Contact configuration | 3x NO |

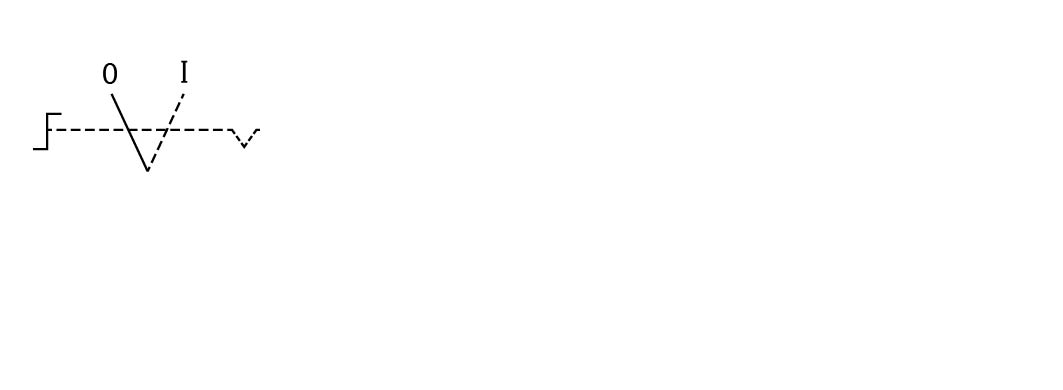

| Switching configuration | 2 position with left OFF |
| Usage category | AC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A |
| Number of poles | 3 |
| Operator action | engage - engage |
| Lockable | in 'OFF' position threefold padlockable |
| Labeling | 0 - I |
| Enclosure range | GR |
| Enclosure cover | fully detachable |
| Cover fixing | Cover fixing |
| ScrewsM6 stainless steel combination Phillips and slotted screwNumber4Tightening torque3.5 Nm | ScrewsM6 stainless steel combination Phillips and slotted screwNumber4Tightening torque3.5 Nm |
| Cover seal | foamed silicone |
| Degree of protection | IP65 |
| Cable entry face B | Cable entry face B |
| M32 quantity2M32 seriesCable Glands, PlasticM32 typeCG.PEDS1.M32L.*M32 clamping range14 ... 24 mm | M32 quantity2M32 seriesCable Glands, PlasticM32 typeCG.PEDS1.M32L.*M32 clamping range14 ... 24 mm |
| Defined entry area | face B |
| Material | Material |
| Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color black | Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color black |
| Mass | 4.8 kg |
| Dimensions | Dimensions |

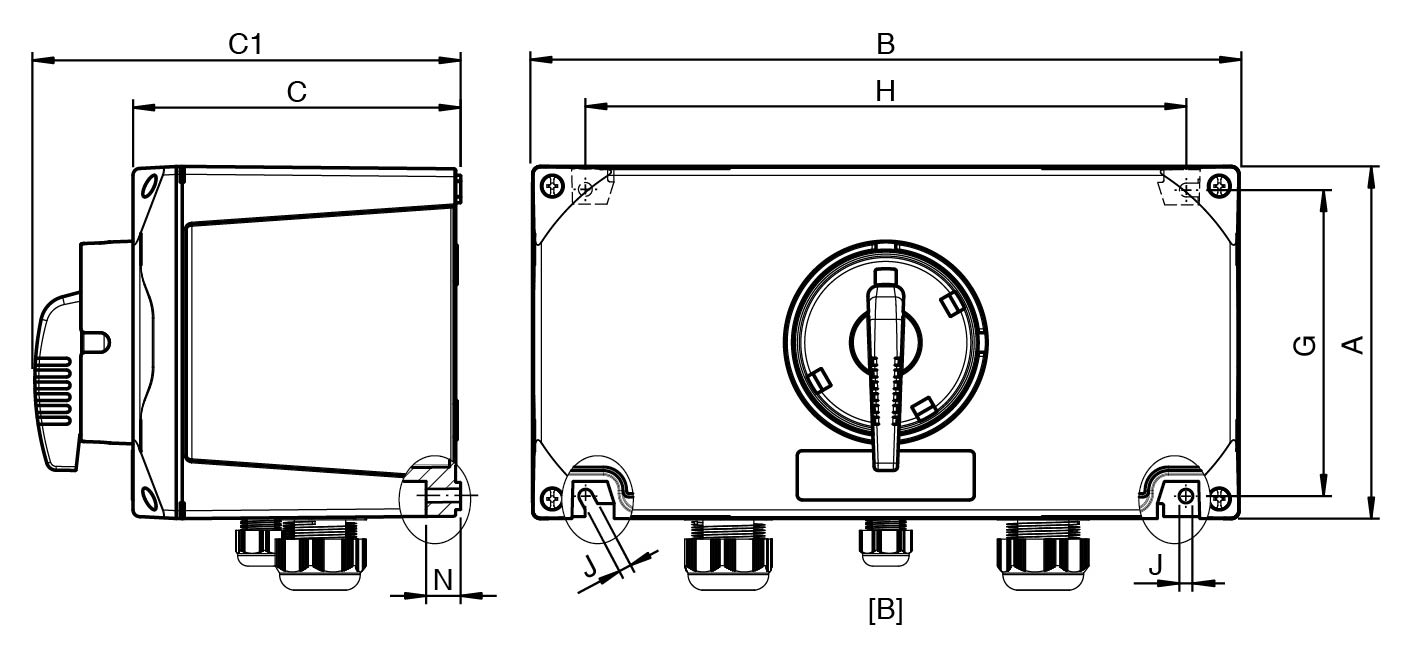

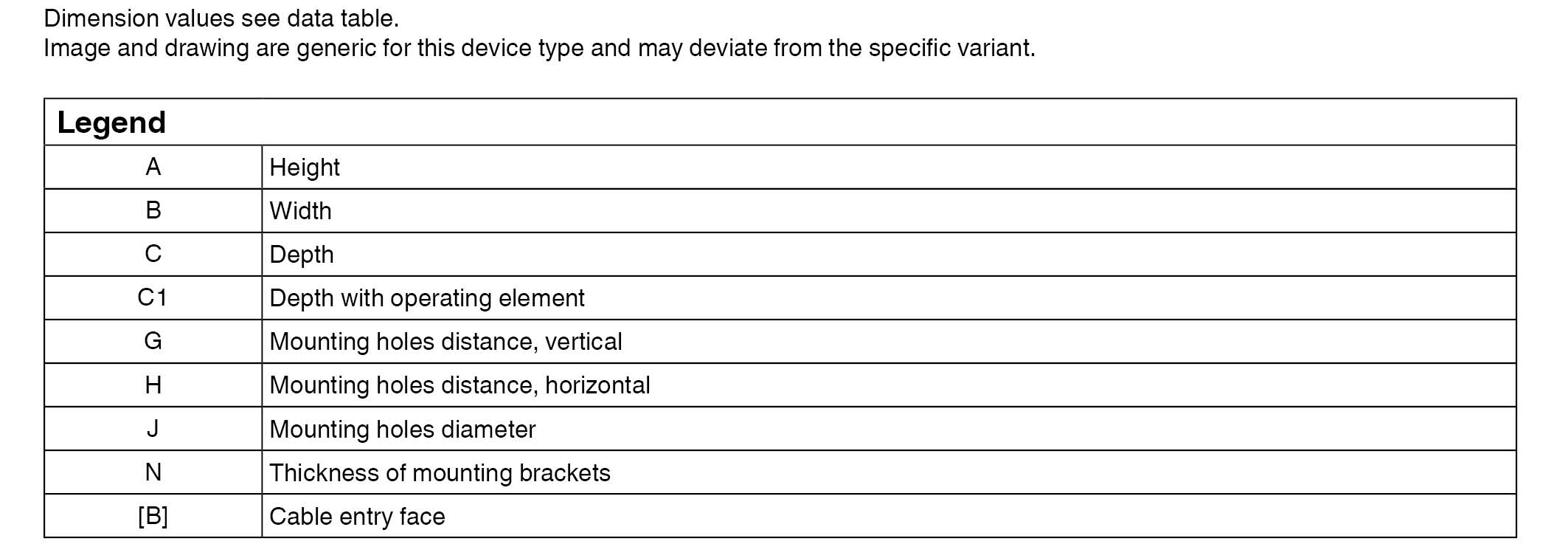

| Height (A)179 mmWidth (B)359 mmDepth (C)166.5 mmExternal dimension with operating element (C1)216.5 mmMounting holes distance (G)156 mmMounting holes distance (H)336 mmMounting holes diameter (J)7 mmThickness of mounting brackets (N)18 mm | Height (A)179 mmWidth (B)359 mmDepth (C)166.5 mmExternal dimension with operating element (C1)216.5 mmMounting holes distance (G)156 mmMounting holes distance (H)336 mmMounting holes diameter (J)7 mmThickness of mounting brackets (N)18 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of cable glands | Nut torque at enclosure (SW1)see datasheets of cable glands |
| Mounting | 4 screws |
| Screws | M6 stainless steel combination Phillips and slotted screw |
| Number | 4 |
| Tightening torque | 3.5 Nm |
| M32 quantity | 2 |
| M32 series | Cable Glands, Plastic |
| M32 type | CG.PEDS1.M32L.* |
| M32 clamping range | 14 ... 24 mm |
| Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Finish | inherent color black |
| Height (A) | 179 mm |
| Width (B) | 359 mm |
| Depth (C) | 166.5 mm |
| External dimension with operating element (C1) | 216.5 mm |
| Mounting holes distance (G) | 156 mm |
| Mounting holes distance (H) | 336 mm |
| Mounting holes diameter (J) | 7 mm |
| Thickness of mounting brackets (N) | 18 mm |
| Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C | Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C |
| Marking | II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | further on request |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
