倍加福

DM-320S-A-

DM-320S-*A-* Direct Monitor - System with EnclosureVisuNet FLX

订货号: T193554
产品分类: 工业监视器

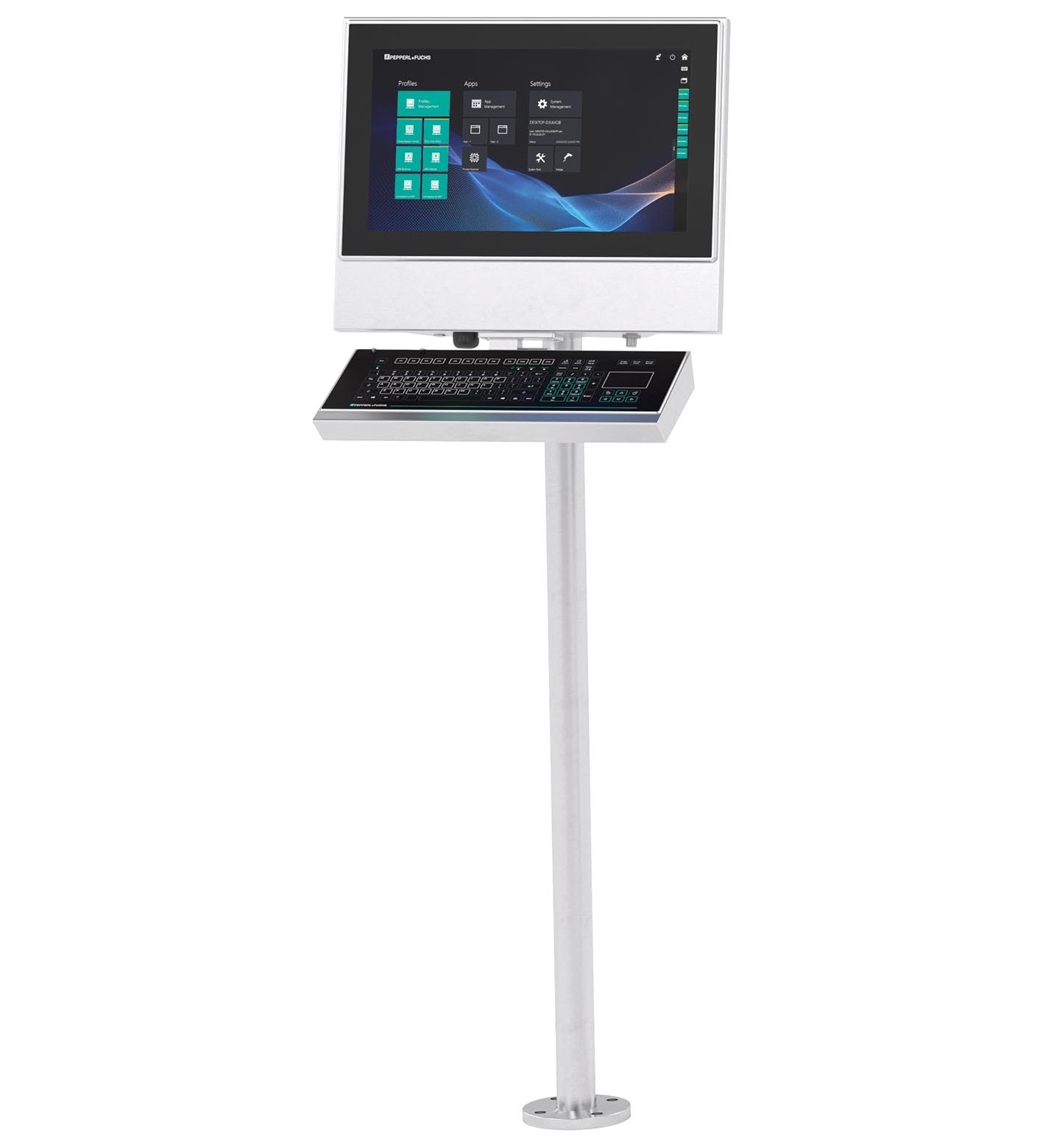

Direct Monitor - System with Enclosure

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Type	Direct Monitor
Power consumption	Power consumption
ACA: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.4 A For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DCD: 20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.	ACA: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.4 A For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DCD: 20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.
AC	A: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.4 A For connections designation refer to the Power Supply PS1000-A6-24.5 manual.
DC	D: 20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.
Display	Display
TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° verticalLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr	TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° verticalLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr
Input devices	Input devices
Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)	Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)
Type	Liquid Crystal Display (LCD) with LED backlight
Screen size	54.61 cm (21,5 '')
Resolution	1920 x 1080 pixels (Full HD) Aspect ratio 16:9
Color depth	24 bit (16.7 M) color
Contrast ratio	Typically22KT, 22GT: 1000:122FC: 5000:1
Brightness	Configurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2
Viewing angle	22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° vertical
Life span	22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr
Touch screen	10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bonding
Keyboard	Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)
Interface type	1x Power input w/ 3 pin terminal block1x HDMI1x DVI-I1x VGA1x USB1x 3,5mm audio jack (Line-out)1x OSD Menu w/ power button
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011	Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011
Explosion protection	Explosion protection
Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN IEC 60079-31:2024	Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN IEC 60079-31:2024
RoHS	RoHS
Directive 2011/65/EU (RoHS)EN IEC 63000:2018	Directive 2011/65/EU (RoHS)EN IEC 63000:2018
Directive 2014/30/EU	EN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011
Directive 2014/34/EU	EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN IEC 60079-31:2024
Directive 2011/65/EU (RoHS)	EN IEC 63000:2018
Operating temperature	0 ... 40 °C (32 ... 104 °F)
Storage temperature	-20 ... 65 °C (-4 ... 149 °F)
Relative humidity	max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78
Climatic conditions	Passive cooling, no rotating parts.
Altitude	Operating altitude max. 2000 m
Shock resistance	18 shocks 15 g, 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6
Degree of protection	IP66/Type 4X
Material	Housing: Stainless steel AISI304 (1.4301)Surface finish: Bead blasted, typical surface roughness 0.8 µm
Installation	System with enclosure
Mass	approx. 16 kgapprox. 18 kg with AC Power Supply

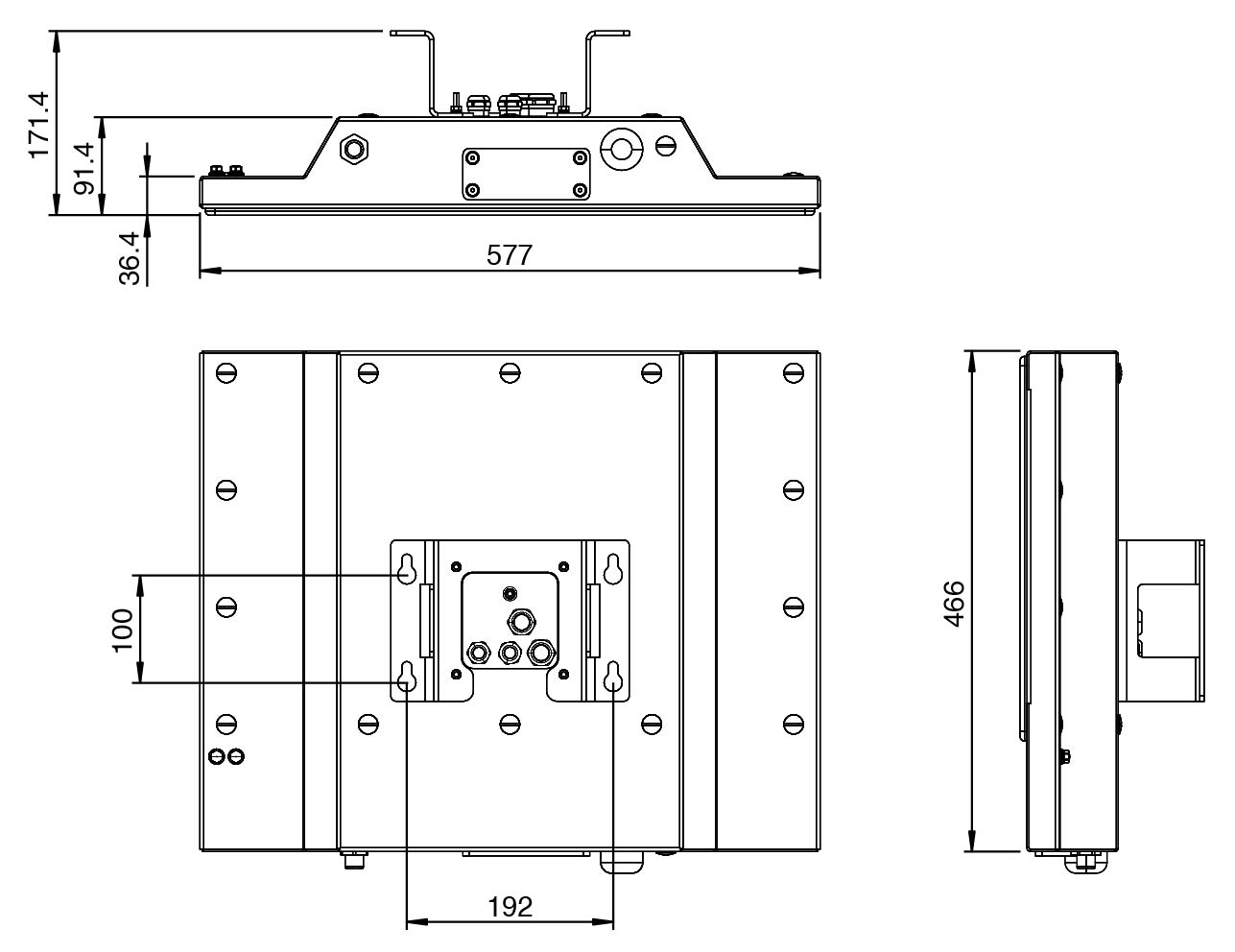

Dimensions	577 mm x 466 mm x 233 mm
UL approval	UL approval
Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C	Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C
ATEX approval	ATEX approval
ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic] IIC T4 Gc II 3 D Ex tc IIIC T85°C Dc	ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic] IIC T4 Gc II 3 D Ex tc IIIC T85°C Dc
IECEx approval	IECEx approval
IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec IIC T4 Gc Ex tc IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 3	IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec IIC T4 Gc Ex tc IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 3
CCC approval	CCC approval
CCC certificate2023322309005595CCC markingEx ec IIC T4 Gc Ex tc IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.31-2021	CCC certificate2023322309005595CCC markingEx ec IIC T4 Gc Ex tc IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.31-2021
Approved for	UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C
ATEX certificate	UL 22 ATEX 2481X
ATEX marking	II 3 G Ex ec [ic] IIC T4 Gc II 3 D Ex tc IIIC T85°C Dc
IECEx certificate	IECEx ULD 22.0019X
IECEx marking	Ex ec IIC T4 Gc Ex tc IIIC T85°C Dc
IECEx standard	IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 3
CCC certificate	2023322309005595
CCC marking	Ex ec IIC T4 Gc Ex tc IIIC T85°C Dc
CCC standard	GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.31-2021

DOCUMENTS & DOWNLOADS

资料与附件

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

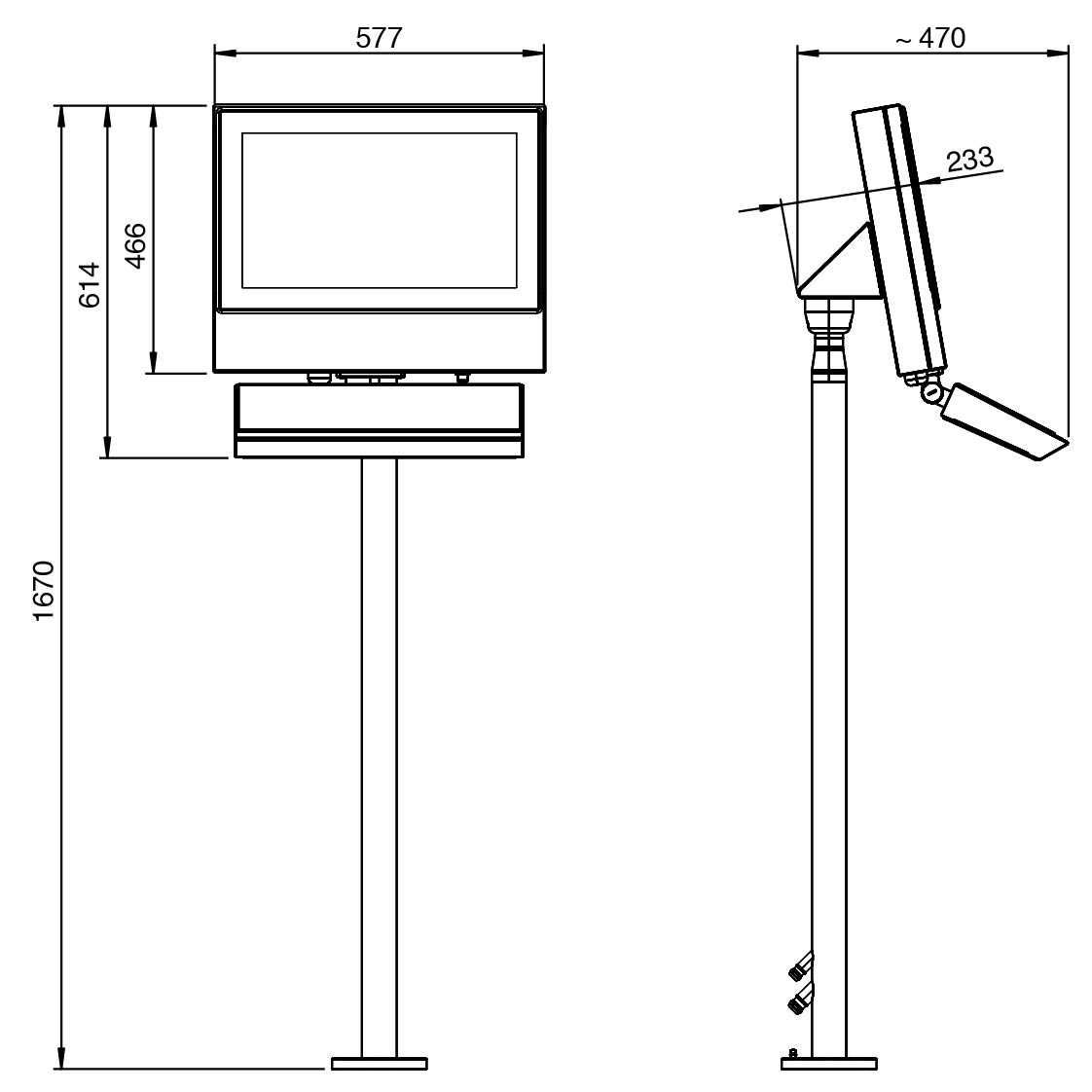

STP 三维图纸 3-D model VisuNet FLX System installed with 0° adapter

已就绪 · 可下载下载文件

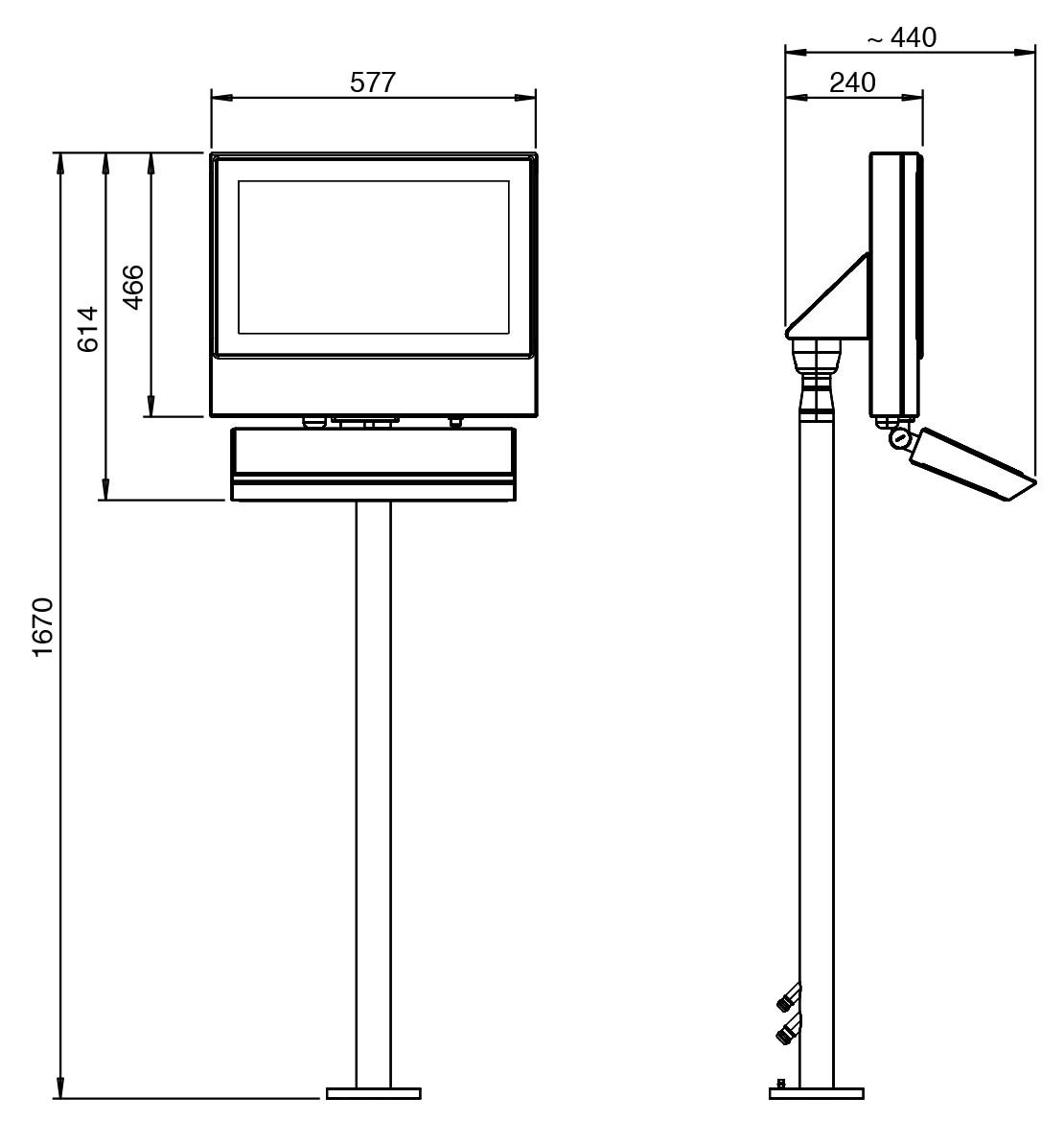

STP 三维图纸 3-D model VisuNet FLX System installed with 10° adapter

已就绪 · 可下载下载文件

STP 三维图纸 3-D model VisuNet FLX System Wall Mounting

已就绪 · 可下载下载文件
