产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
General specifications

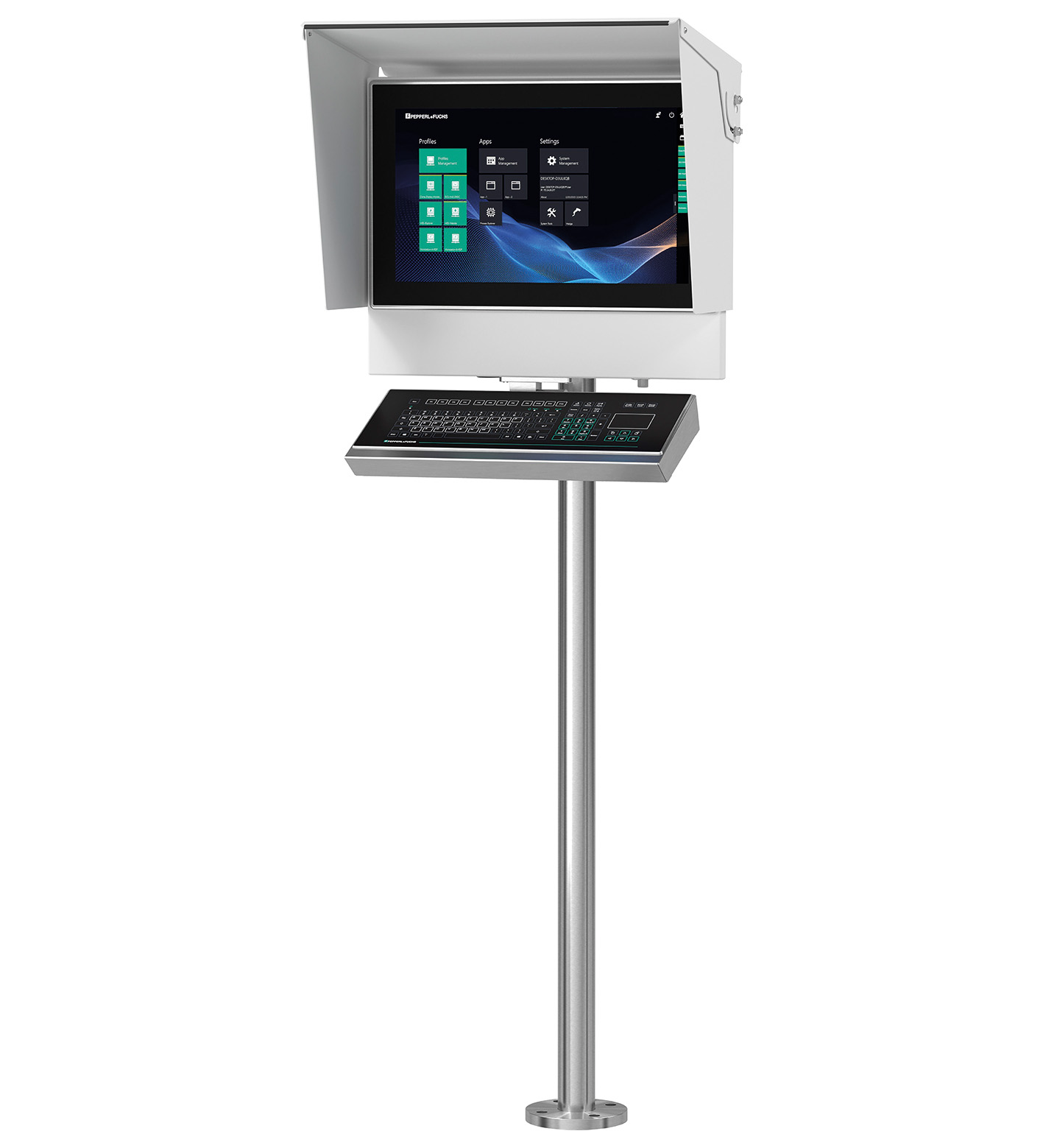

| Type | Direct Monitor |
|---|---|
| Power consumption | Power consumption |
| AC115/230 V a.c. (100 ... 240 V a.c.), max. 0.4 A , max. 40 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DC20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual. | AC115/230 V a.c. (100 ... 240 V a.c.), max. 0.4 A , max. 40 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DC20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual. |
| AC | 115/230 V a.c. (100 ... 240 V a.c.), max. 0.4 A , max. 40 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual. |
| DC | 20 ... 28 V d.c. / 1.5 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual. |
| Display | Display |
| TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio22FC: 5000:1Brightness22FC: 300 cd/m2Viewing angle22FC: 170 ° horizontal, 160 ° verticalLife span22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) | TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21,5 '')Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio22FC: 5000:1Brightness22FC: 300 cd/m2Viewing angle22FC: 170 ° horizontal, 160 ° verticalLife span22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) |
| Input devices | Input devices |
| Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet) | Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet) |
| Type | Liquid Crystal Display (LCD) with LED backlight |
| Screen size | 54.61 cm (21,5 '') |
| Resolution | 1920 x 1080 pixels (Full HD) Aspect ratio 16:9 |
| Color depth | 24 bit (16.7 M) color |
| Contrast ratio | 22FC: 5000:1 |
| Brightness | 22FC: 300 cd/m2 |
| Viewing angle | 22FC: 170 ° horizontal, 160 ° vertical |
| Life span | 22FC: back lamp life: 50.000 hrs typical half life, at 25 °C (77 °F) |
| Touch screen | 10-finger multi-touch, glove-friendlyConfigurable display options:22FC: Capacitive touch, optical bonding |
| Keyboard | Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet) |
| Interface type | 1x Power input w/ 3 pin terminal block1x HDMI1x DVI-I1x VGA1x USB1x 3,5mm audio jack (Line-out)1x OSD Menu w/ power button |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 | Directive 2014/30/EUEN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 |
| Explosion protection | Explosion protection |
| Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN IEC 60079-31:2024 | Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN IEC 60079-31:2024 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61326-1:2013 (ind. Locations) EN 61000-6-4:2007+A1:2011 |
| Directive 2014/34/EU | EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN IEC 60079-31:2024 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | max. relative humidity 93% at 50°C (non-condensing) according to EN60068-2-78 |
| Climatic conditions | Passive cooling, no rotating parts. |
| Altitude | Operating altitude max. 2000 m |
| Shock resistance | 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6 |
| Degree of protection | IP66/Type 4X |
| Material | Housing: Powder-coated marine-grade aluminum alloy (EN AW-5754) |
| Installation | System with enclosure |

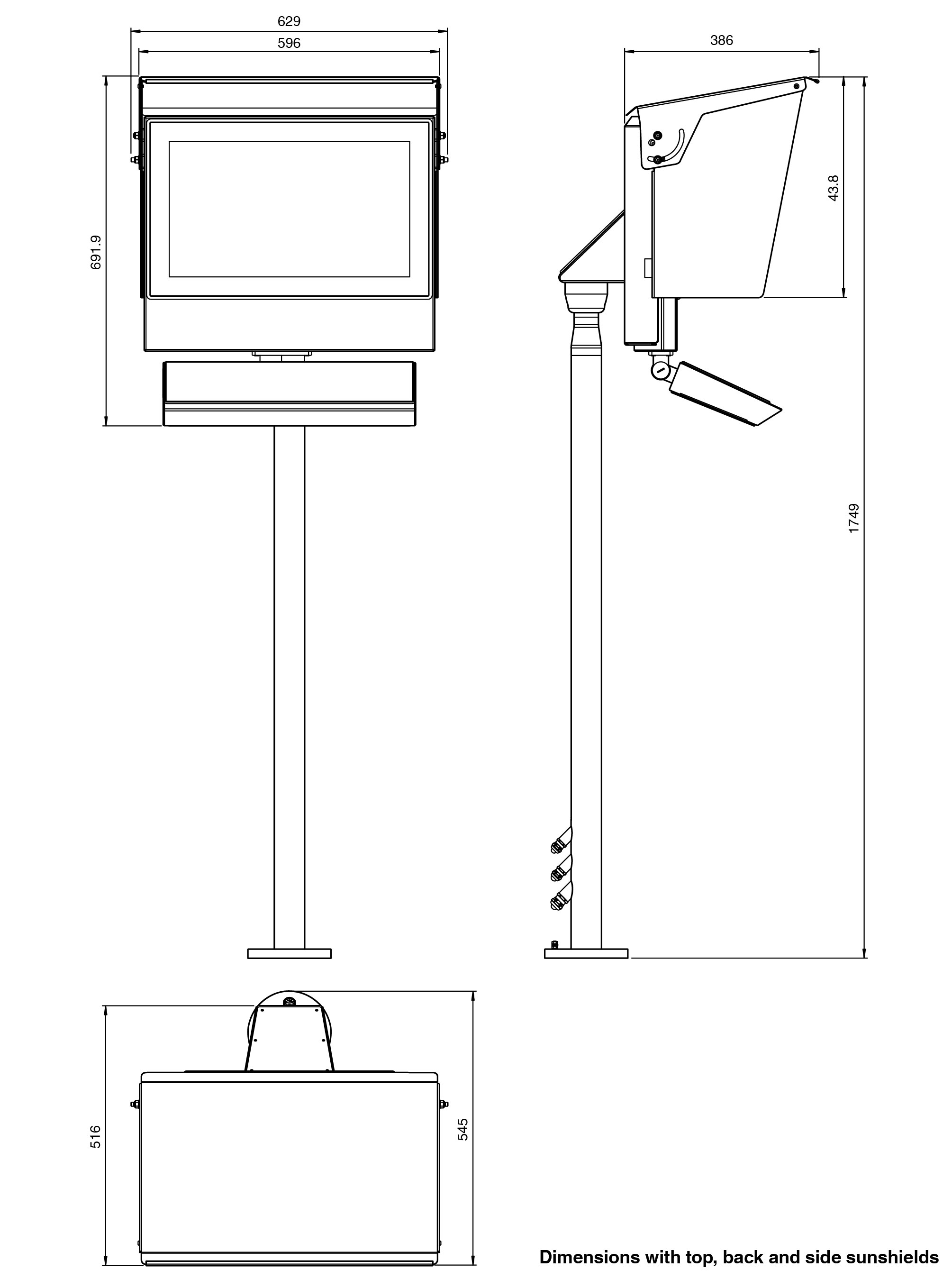

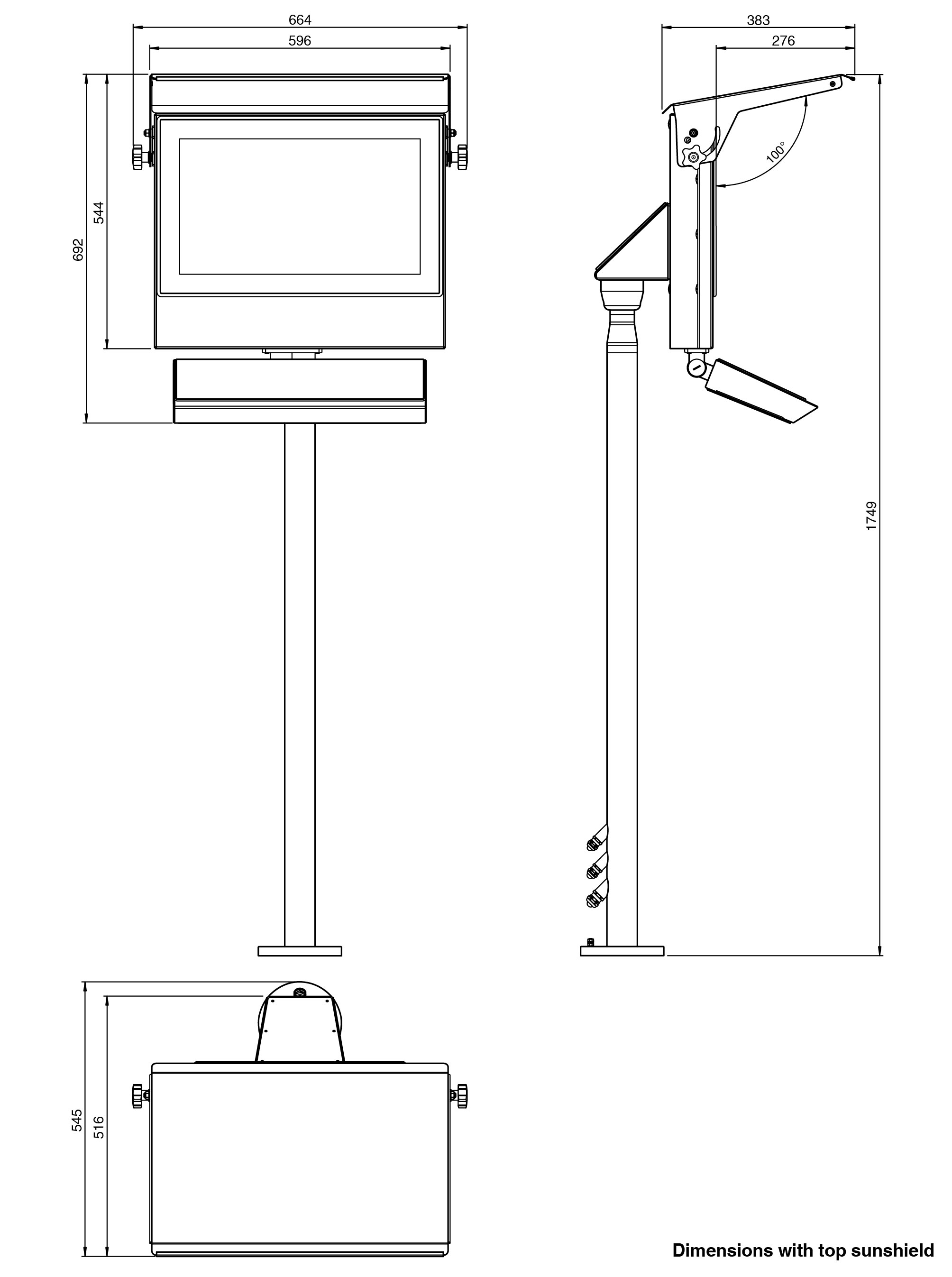

| Mass | Approx. 11.4 kgApprox. 13.4 kg with AC power supplywith top sunshield: + Approx. 1.6 kgwith top and side sunshield: + Approx. 3 kg |

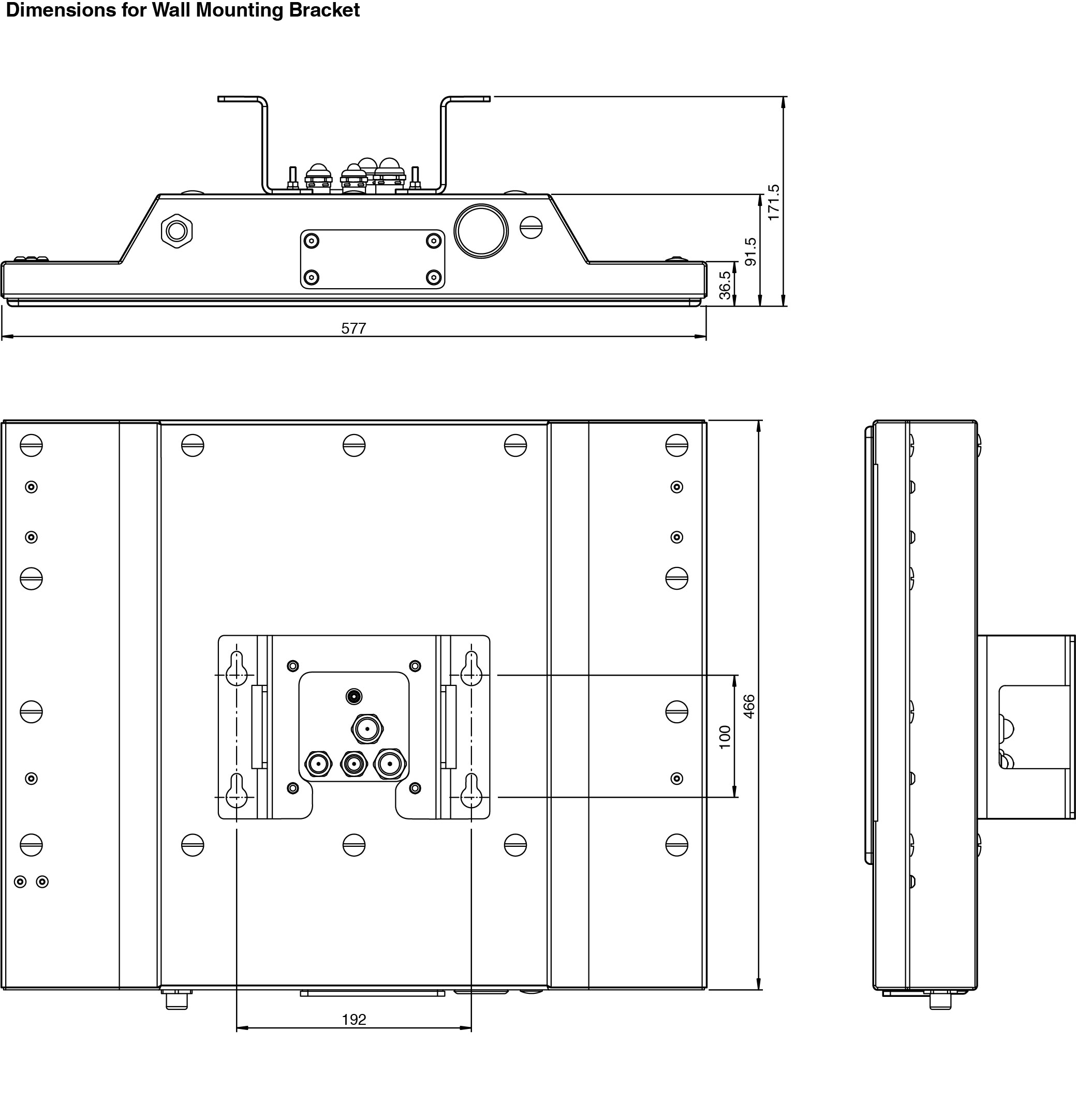

| Dimensions | 577 mm x 466 mm x 233 mm |
| UL approval | UL approval |
| Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocMounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C | Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocMounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C |
| ATEX approval | ATEX approval |
| ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic] IIC T4 Gc II 3 D Ex tc IIIC T85°C Dc | ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic] IIC T4 Gc II 3 D Ex tc IIIC T85°C Dc |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec IIC T4 Gc Ex tc IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 3 | IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec IIC T4 Gc Ex tc IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 3 |
| Approved for | UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL HazLocMounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C |
| ATEX certificate | UL 22 ATEX 2481X |
| ATEX marking | II 3 G Ex ec [ic] IIC T4 Gc II 3 D Ex tc IIIC T85°C Dc |
| IECEx certificate | IECEx ULD 22.0019X |
| IECEx marking | Ex ec IIC T4 Gc Ex tc IIIC T85°C Dc |
| IECEx standard | IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-31:2013 Ed. 3 |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
