TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 230 V AC , optional 110 V AC |
|---|---|
| Function | elimination of electrostatic charges |
| Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles | Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Lens color | red and green |
| Operator action | Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | see data table |
| Cover fixing | see data table |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | see data table |
| Degree of protection | IP65 , Enclosure IP66 (IP66/IP67 with O-ring) |
| Cable entry | face B |
| Cable entry face B | Cable entry face B |
| M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request | M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request |
| Material | Material |
| Enclosurealuminum alloy or AISI 316L, (1.4404) stainless steelFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone | Enclosurealuminum alloy or AISI 316L, (1.4404) stainless steelFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone |
| Mass | see data table |

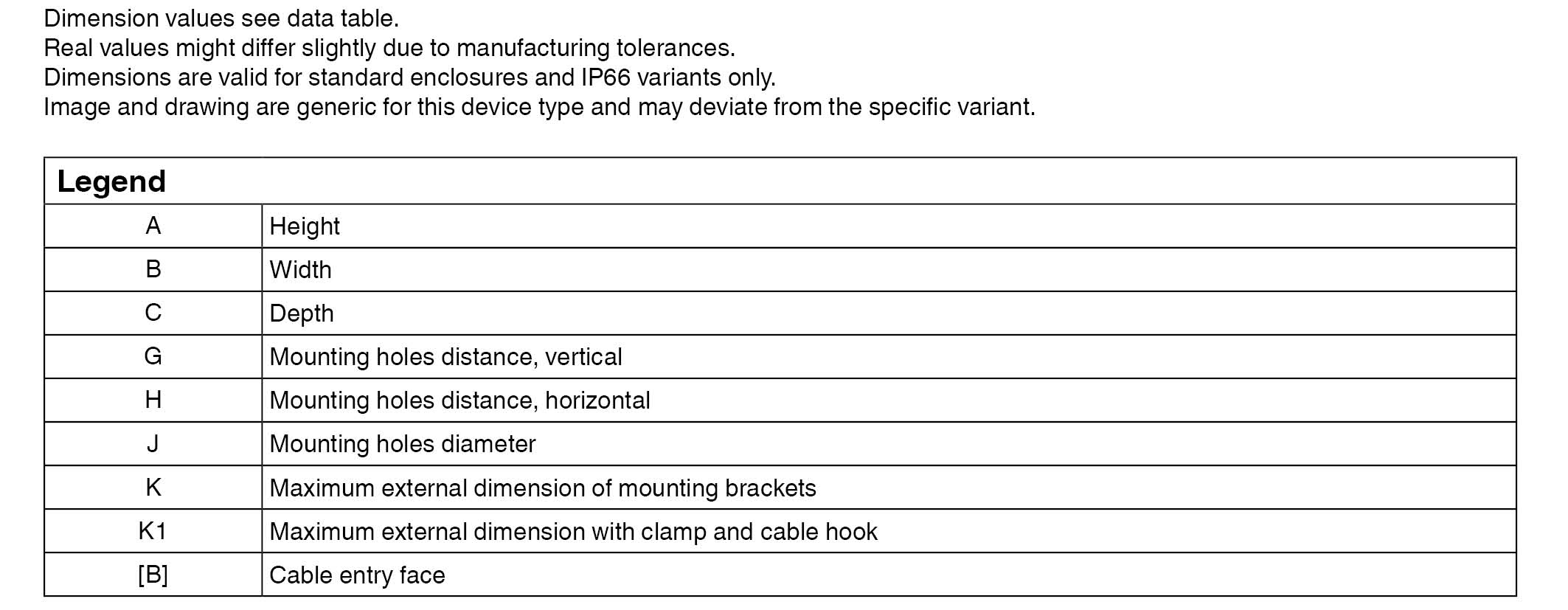

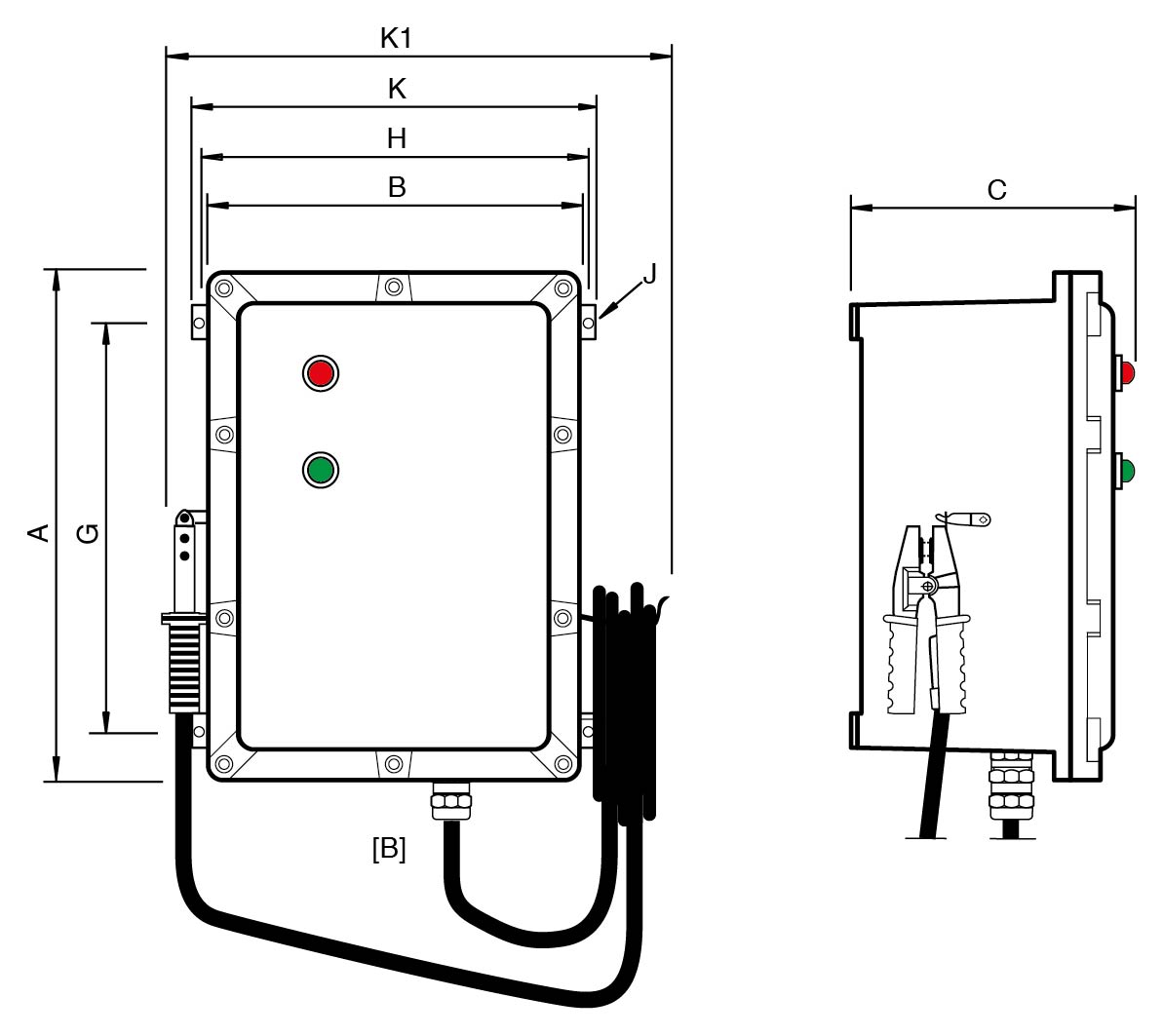

| Dimensions | see data table values might differ slightly due to manufacturing tolerances |
| Grounding | M6 external grounding points |
| M25 quantity | 2 |
| M25 type | NPT 3/4'' |
| M25 info | as standard, other on request |
| Enclosure | aluminum alloy or AISI 316L, (1.4404) stainless steel |
| Finish | epoxy coated RAL 7005 (grey) or shot peened |
| O-Ring | silicone |
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
| EU-type examination certificate | see data table |
| Markingsee data table | Markingsee data table |
| Marking | see data table |
| Degree of protection | EN 60529 |
| CE marking | 0080 or 0102, see type label |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
