TECHNICAL DATA
规格参数
General specifications

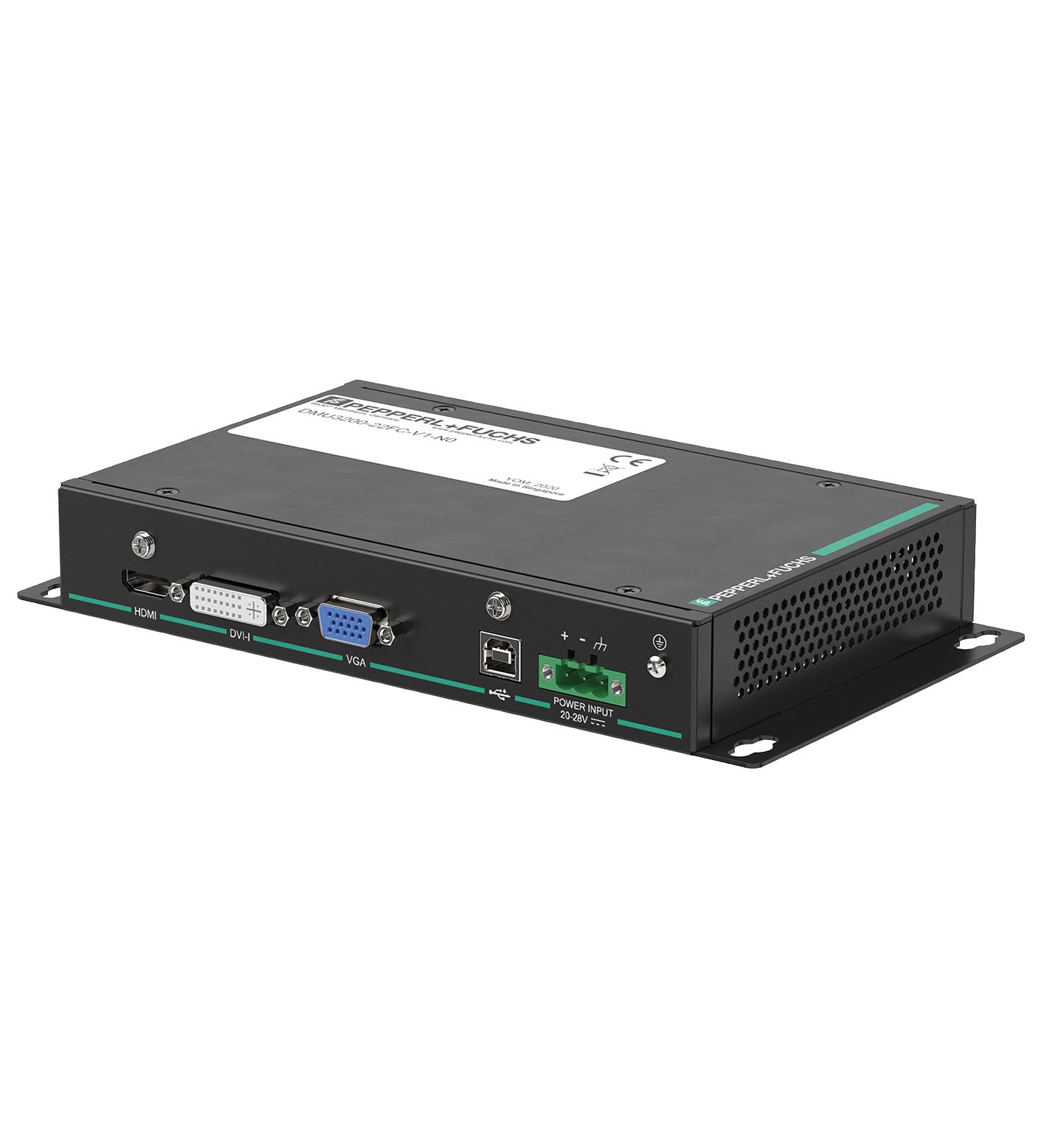

| Type | Direct Monitor Unit |
|---|---|
| Power consumption | Power consumption |
| DC24 V d. c. (20 … 28 V d. c.) (SELV/PELV or class 2) | DC24 V d. c. (20 … 28 V d. c.) (SELV/PELV or class 2) |
| DC | 24 V d. c. (20 … 28 V d. c.) (SELV/PELV or class 2) |
| Interface type | 1x Power input w/ 3 pin terminal block1x HDMI1x DVI-I1x VGA1x USB1x 3,5mm audio jack (Line-out)1x OSD Menu w/ power button |
| Communication | Communication Distance:HDMI (typ. 5m @ Full HD)DVI-I (typ. 5m @ Full HD)VGA (typ. 10m @ Full HD)USB (Touch-) signal (max. 5m)depends on quality of cable and environment (EMC) |
| Resolution | Maximum resolution:Full HD (1920 x 1080) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUDIN EN 55035:2018-04 | Directive 2014/30/EUDIN EN 55035:2018-04 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | DIN EN 55035:2018-04 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Operating temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78 |
| Shock resistance | Acceleration: 15 gDuration: 11 msShocks: 18 (3 per axis per direction) |
| Vibration resistance | Amplitude / acceleration: +/- 0.075 mm // 1 gFrequency range: 10 Hz - 150 HzSweeps: 20 |
| Degree of protection | IP 20 |
| Material | Painted sheet metal |
| Mass | 1 kg |

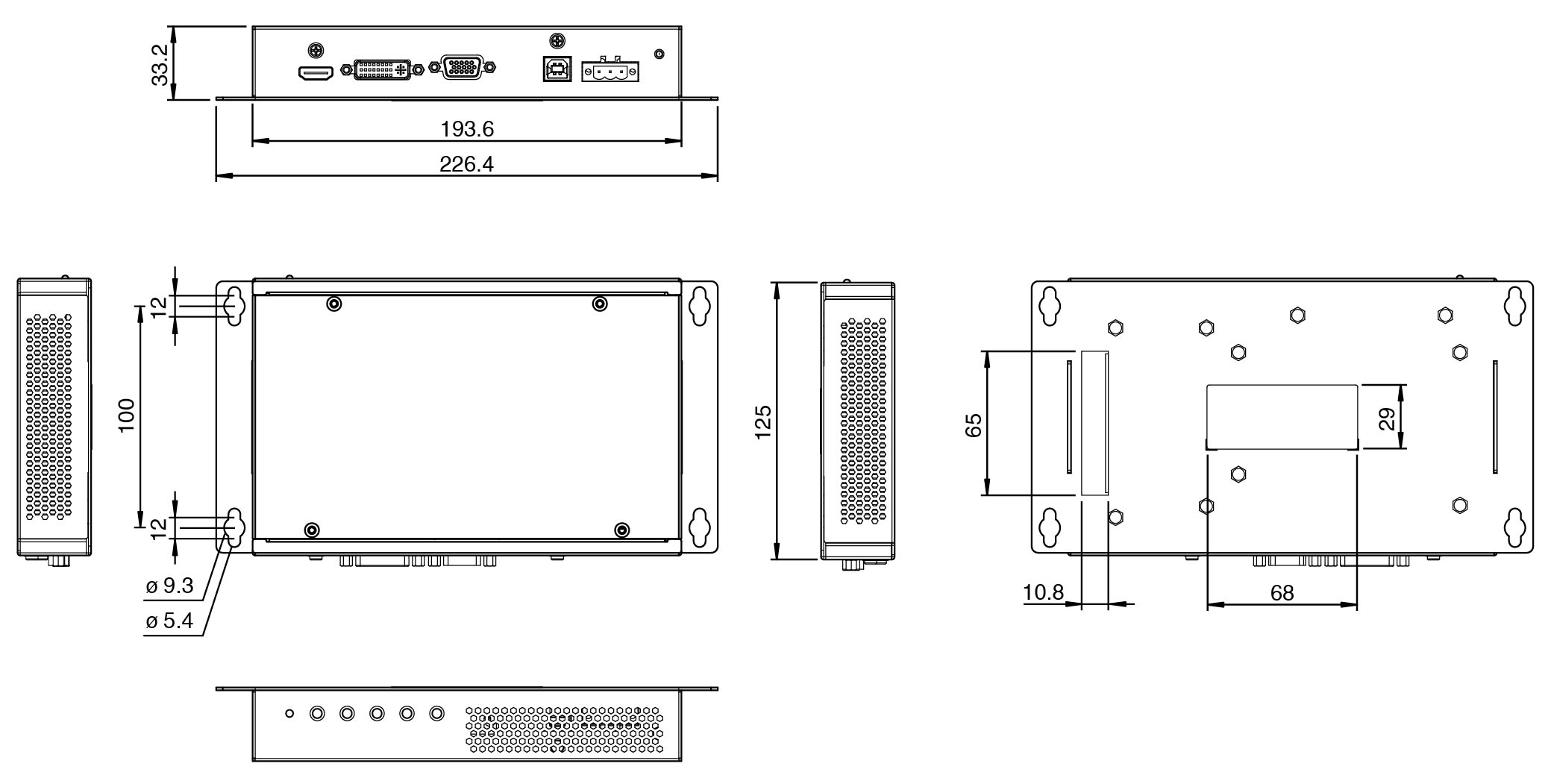

| Dimensions | 226 mm x 125 mm x 33 mm |
| Mounting | Direct mounting to P+F Display Unit (3200 series) |
| Supplementary information | Only available as replacement part in combination with a P+F Display Unit of 3200 series |
