倍加福

DP-LBF-I1.36.*

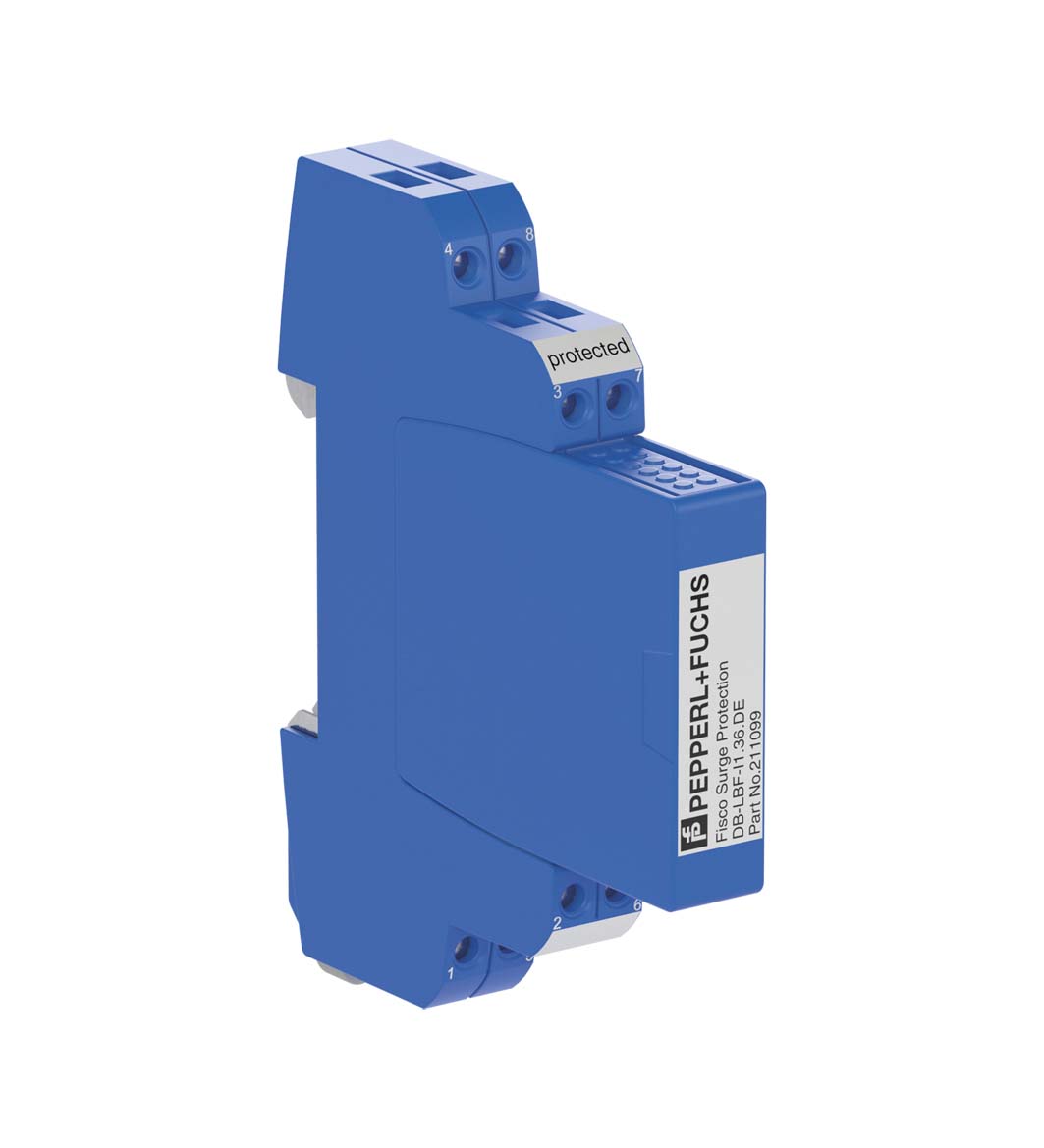

DP-LBF-I1.36.* Surge ProtectorFieldConnex® Fieldbus

订货号
T48403
产品分类
Fieldbus Protection

Surge protector, module for control cabinet installation (Ex ia)

查看规格参数 资料与附件

TECHNICAL DATA

规格参数

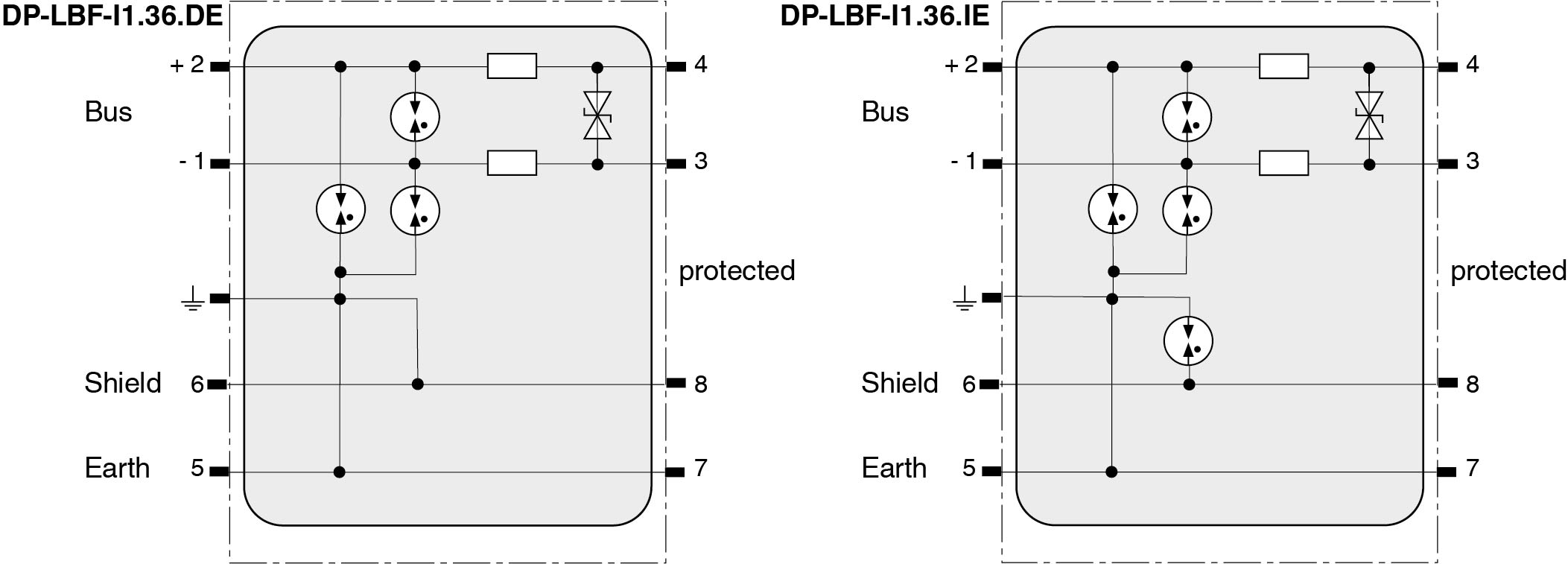

General specifications
Design / MountingCabinet installation
Installation in hazardous areaZone 1 / Div. 1
Rated voltage33 V
Rated current500 mA
Voltage protection levelUp
Line/Linemax. 58 V category C1/C28/20 µsecmax. 50 V category C3 1 kV/µsecmax. 51 V category B2 10/700 µsecmax. 55 V category D1 10/350 µsecLine/Earthmax. 1400 V category C1/C28/20 µsecmax. 1100 V category C1/C21 kV/µsecmax. 1000 V category B2 10/700 µsecmax. 1300 V category D1 10/350 µsecScreen/Shield directly groundedmax. 25 V category C1/C28/20 µsecmax. 20 V category D1 10/350 µsecScreen/Shield indirectly grounded (via GDT)max. 700 V category C1/C28/20 µsecmax. 600 V category C3 1 kV/µsecmax. 500 V category B2 10/700 µsecmax. 600 V category D1 10/350 µsecLine/Linemax. 58 V category C1/C28/20 µsecmax. 50 V category C3 1 kV/µsecmax. 51 V category B2 10/700 µsecmax. 55 V category D1 10/350 µsecLine/Earthmax. 1400 V category C1/C28/20 µsecmax. 1100 V category C1/C21 kV/µsecmax. 1000 V category B2 10/700 µsecmax. 1300 V category D1 10/350 µsecScreen/Shield directly groundedmax. 25 V category C1/C28/20 µsecmax. 20 V category D1 10/350 µsecScreen/Shield indirectly grounded (via GDT)max. 700 V category C1/C28/20 µsecmax. 600 V category C3 1 kV/µsecmax. 500 V category B2 10/700 µsecmax. 600 V category D1 10/350 µsec
Reaction timetA
Line/Linemax. 1 nsLine/Earthmax. 100 nsScreen/Shield-Earthmax. 100 nsLine/Linemax. 1 nsLine/Earthmax. 100 nsScreen/Shield-Earthmax. 100 ns
Overstressed fault modeaccording IEC 61643-21 line inoperable mode 3 lines 1 and 2 at 15,5kA (8/20µsec) lines 3 and 4 at 30kA (8/20µsec)
Series resistance in line1 Ω +/- 5 %
Impulse durabilityImpulse durability
Per line1 kA category D1 10/350 µsec ,5 kA category C1/C28/20 µsecScreen/Shield directly grounded5 kA category D1 10/350 µsecScreen/Shield indirectly grounded (via GDT)4 kA category D1 10/350 µsec ,10 kA category C1/C28/20 µsecPer line1 kA category D1 10/350 µsec ,5 kA category C1/C28/20 µsecScreen/Shield directly grounded5 kA category D1 10/350 µsecScreen/Shield indirectly grounded (via GDT)4 kA category D1 10/350 µsec ,10 kA category C1/C28/20 µsec
CapacitanceCapacitance
Line/Line800 pFLine/Earth16 pFLine/Line800 pFLine/Earth16 pF
Line/Linemax. 58 V category C1/C28/20 µsecmax. 50 V category C3 1 kV/µsecmax. 51 V category B2 10/700 µsecmax. 55 V category D1 10/350 µsec
Line/Earthmax. 1400 V category C1/C28/20 µsecmax. 1100 V category C1/C21 kV/µsecmax. 1000 V category B2 10/700 µsecmax. 1300 V category D1 10/350 µsec
Screen/Shield directly groundedmax. 25 V category C1/C28/20 µsecmax. 20 V category D1 10/350 µsec
Screen/Shield indirectly grounded (via GDT)max. 700 V category C1/C28/20 µsecmax. 600 V category C3 1 kV/µsecmax. 500 V category B2 10/700 µsecmax. 600 V category D1 10/350 µsec
Line/Linemax. 1 ns
Line/Earthmax. 100 ns
Screen/Shield-Earthmax. 100 ns
Per line1 kA category D1 10/350 µsec ,5 kA category C1/C28/20 µsec
Screen/Shield directly grounded5 kA category D1 10/350 µsec
Screen/Shield indirectly grounded (via GDT)4 kA category D1 10/350 µsec ,10 kA category C1/C28/20 µsec
Line/Line800 pF
Line/Earth16 pF
Degree of protectionIEC 60529
Fieldbus standardIEC 61158-2
Climatic conditionsIEC 60721
Shock resistanceEN 60068-2-27
Vibration resistanceEN 60068-2-6
Surge protectionIEC 61643-21
Ambient temperature-50 ... 80 °C (-58 ... 176 °F)
Storage temperature-50 ... 85 °C (-58 ... 185 °F)
Relative humidity≤ 95 % non-condensing
Shock resistance15 g 11 ms
Vibration resistance1 g , 10 ... 150 Hz
Connection typescrew terminals
Core cross sectionflexible wire 2.5 mm2 solid wire max. 4 mm2
Housing materialPolyamide PA 6.6
Degree of protectionIP20
MassProtection Module 20 g , base module 40 g
MountingDIN rail mounting
EU-type examination certificateKEMA 09 ATEX 0191 X
Marking II 2(1)G Ex ia [ia Ga] IIC T6...T4 GbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µHMarking II 2(1)G Ex ia [ia Ga] IIC T6...T4 GbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH
CertificateKEMA 09 ATEX 0190 X
Marking II 3G Ex ic IIC T6...T4 Gc , [exsign] II 3G Ex ec IIC T6...T4 GcVoltageUi33 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFMarking II 3G Ex ic IIC T6...T4 Gc , [exsign] II 3G Ex ec IIC T6...T4 GcVoltageUi33 VCurrentIi500 mAInternal capacitanceCinegligible 0 nF
Directive conformityDirective conformity
Directive 2014/34/EUEN IEC 60079-0:2018+A11:2024 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012Directive 2014/34/EUEN IEC 60079-0:2018+A11:2024 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
MarkingII 2(1)G Ex ia [ia Ga] IIC T6...T4 Gb
Voltage30 V
Current500 mA
Internal capacitancenegligible 0 nF
Internal inductancenegligible 0 µH
MarkingII 3G Ex ic IIC T6...T4 Gc , [exsign] II 3G Ex ec IIC T6...T4 Gc
Voltage33 V
Current500 mA
Internal capacitancenegligible 0 nF
Directive 2014/34/EUEN IEC 60079-0:2018+A11:2024 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
CSA approvalCSA 2437472
Control drawing116-0361Approved forClass I, Zone 1, AEx/Ex ia IIC T4...T6, Class I, Zone 2, AEx nC IIC T4...T6, Class I, Zone 2, Ex nL IIC T4...T6, Class I, Zone 2, AEx/Ex nA IIC T4...T6 Class I Div. 1, GP A, B, C, D T4...T6, Class I Div. 2, GP A, B, C, D T4...T6, Class I Div. 2, GP A, B, C, D T4...T6Control drawing116-0361Approved forClass I, Zone 1, AEx/Ex ia IIC T4...T6, Class I, Zone 2, AEx nC IIC T4...T6, Class I, Zone 2, Ex nL IIC T4...T6, Class I, Zone 2, AEx/Ex nA IIC T4...T6 Class I Div. 1, GP A, B, C, D T4...T6, Class I Div. 2, GP A, B, C, D T4...T6, Class I Div. 2, GP A, B, C, D T4...T6
IECEx approvalIECEx KEM 09.0088X
Approved forEx ia [ia Ga] IIC T6...T4 Gb ,Ex ic IIC T6...T4 Gc , Ex ec IIC T6...T4 GcApproved forEx ia [ia Ga] IIC T6...T4 Gb ,Ex ic IIC T6...T4 Gc , Ex ec IIC T6...T4 Gc
Control drawing116-0361
Approved forClass I, Zone 1, AEx/Ex ia IIC T4...T6, Class I, Zone 2, AEx nC IIC T4...T6, Class I, Zone 2, Ex nL IIC T4...T6, Class I, Zone 2, AEx/Ex nA IIC T4...T6 Class I Div. 1, GP A, B, C, D T4...T6, Class I Div. 2, GP A, B, C, D T4...T6, Class I Div. 2, GP A, B, C, D T4...T6
Approved forEx ia [ia Ga] IIC T6...T4 Gb ,Ex ic IIC T6...T4 Gc , Ex ec IIC T6...T4 Gc
Supplementary informationEC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
