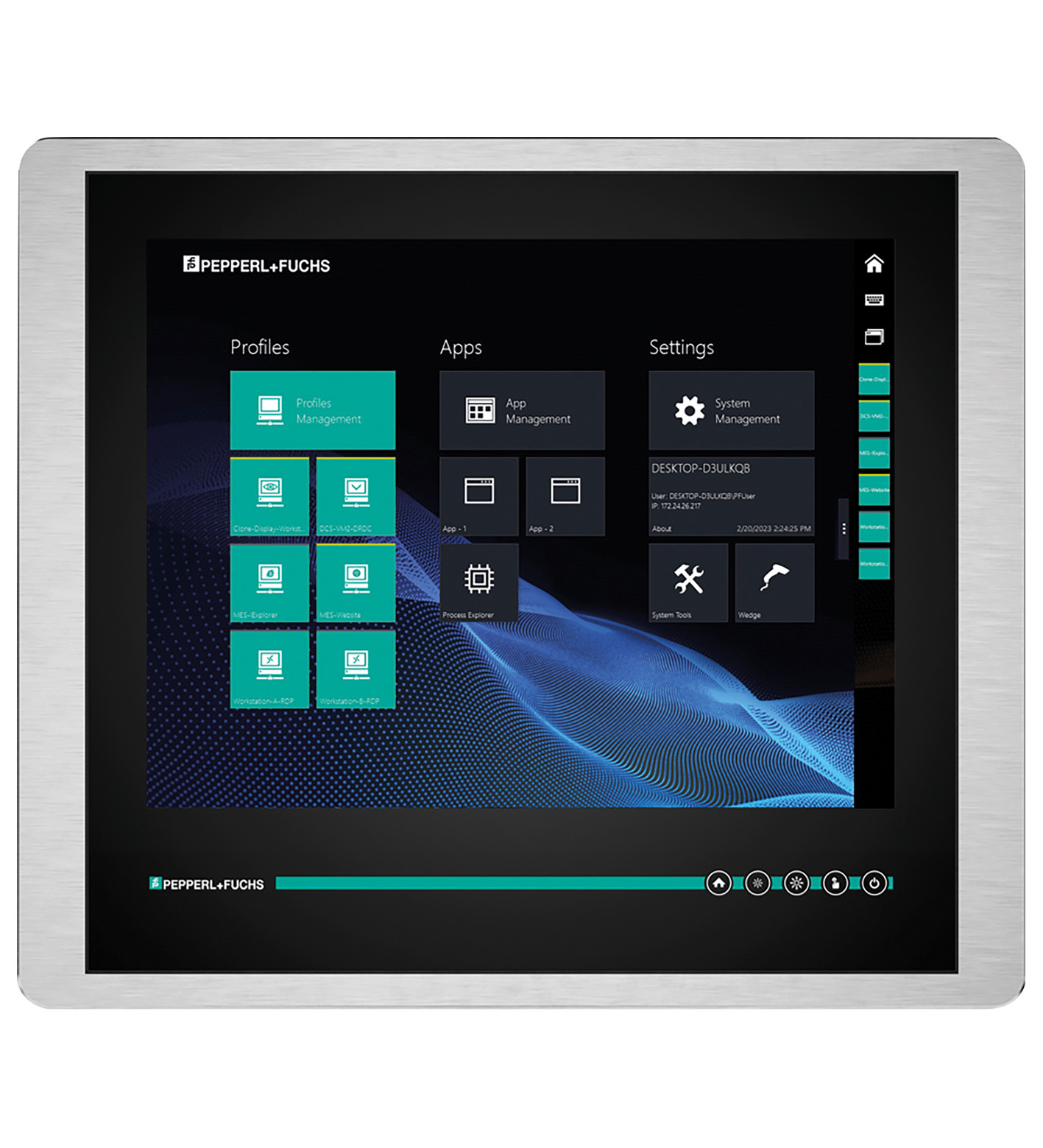

TECHNICAL DATA
规格参数
Supply
| Power consumption | average: 22 W at maximum brightness: max. 25 W |
|---|---|
| Display | Display |
| TypeLC display with LED backlight Optically bondedScreen size48.26 cm (19 inch)Resolution1280x1024 (SXGA) , Aspect ratio 5:4Color depth16.7 Mio.Contrast ratio1000:1 (typical)Brightness450 cd/m2 (nit) (typically)Viewing angle170° horizontal , 160° verticalLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) | TypeLC display with LED backlight Optically bondedScreen size48.26 cm (19 inch)Resolution1280x1024 (SXGA) , Aspect ratio 5:4Color depth16.7 Mio.Contrast ratio1000:1 (typical)Brightness450 cd/m2 (nit) (typically)Viewing angle170° horizontal , 160° verticalLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Input devices | Input devices |
| Touch screenoptional: projective capacitive, 10 finger multi-touch, glove-friendly | Touch screenoptional: projective capacitive, 10 finger multi-touch, glove-friendly |
| Type | LC display with LED backlight Optically bonded |
| Screen size | 48.26 cm (19 inch) |
| Resolution | 1280x1024 (SXGA) , Aspect ratio 5:4 |
| Color depth | 16.7 Mio. |
| Contrast ratio | 1000:1 (typical) |
| Brightness | 450 cd/m2 (nit) (typically) |
| Viewing angle | 170° horizontal , 160° vertical |
| Life span | back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Touch screen | optional: projective capacitive, 10 finger multi-touch, glove-friendly |
| Interface type | interface v1.0 from Pepperl+Fuchs for computing units from Pepperl+Fuchs Bluetooth v4.0 , communication distance up to 30 m in open terrain (optional) , transmission power : +8 dBm |
| Transmitter frequency | 2.402 ... 2.48 GHz |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) non-Bluetooth products only | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) non-Bluetooth products only |
| Radio and telecommunication terminal equipment | Radio and telecommunication terminal equipment |
| Directive 2014/53/EUEN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only | Directive 2014/53/EUEN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012-09 | Directive 2011/65/EU (RoHS)EN 50581:2012-09 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) non-Bluetooth products only |
| Directive 2014/53/EU | EN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only |
| Directive 2011/65/EU (RoHS) | EN 50581:2012-09 |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | 93% at 40°C, non-condensating, according to EN 60068-2-78 |
| Shock resistance | 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, ± 0.075 mm, 1 G, 10 cycles per axis according to EN60068-2-6 |
| Degree of protection | IP66 ( when mounted on the TCU or PCU from Pepperl+Fuchs ) |
| Material | Material |
| Surfacefront: glass (optional with stainless steel bezel) Back side: powder coated aluminum | Surfacefront: glass (optional with stainless steel bezel) Back side: powder coated aluminum |
| Mass | approx. 14.5 kg |
| Dimensions | 524 mm x 453 mm x 35 mm |
| Surface | front: glass (optional with stainless steel bezel) Back side: powder coated aluminum |
| EU-type examination certificate | BVS 16 ATEX E 084 X |
| Marking II 2G Ex eb q ib IIC T4 IP66 Gb [exsign] II 2D Ex tb IIIC T80 °C Db | Marking II 2G Ex eb q ib IIC T4 IP66 Gb [exsign] II 2D Ex tb IIIC T80 °C Db |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-5:2015, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-5:2015, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 |
| Marking | II 2G Ex eb q ib IIC T4 IP66 Gb [exsign] II 2D Ex tb IIIC T80 °C Db |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013, EN 60079-5:2015, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 |
| IECEx approval | IECEx BVS 16.0061X |
| Approved forEx eb q ib IIC T4 IP66 Gb Ex tb IIIC T80 °C DbStandardsIEC 60079-0:2011, IEC 60079-5:2015, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 | Approved forEx eb q ib IIC T4 IP66 Gb Ex tb IIIC T80 °C DbStandardsIEC 60079-0:2011, IEC 60079-5:2015, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 |
| Approved for | Ex eb q ib IIC T4 IP66 Gb Ex tb IIIC T80 °C Db |
| Standards | IEC 60079-0:2011, IEC 60079-5:2015, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 |
