TECHNICAL DATA
规格参数
Supply
| Power consumption | typical 26 W |
|---|---|
| Display | Display |
| TypeLC display with LED backlightScreen size48.26 cm (19 inch)Resolution1280x1024 (SXGA) , Aspect ratio 5:4Color depth24 bit (16.7 M) colorContrast ratio1000:1 (typical)Brightness450 cd/m2 (nit)Viewing anglehorizontal: 170 °, vertical: 160 °Life spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) | TypeLC display with LED backlightScreen size48.26 cm (19 inch)Resolution1280x1024 (SXGA) , Aspect ratio 5:4Color depth24 bit (16.7 M) colorContrast ratio1000:1 (typical)Brightness450 cd/m2 (nit)Viewing anglehorizontal: 170 °, vertical: 160 °Life spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Input devices | Input devices |
| Touch screen10-finger multi-touch, glove friendly | Touch screen10-finger multi-touch, glove friendly |
| Type | LC display with LED backlight |
| Screen size | 48.26 cm (19 inch) |
| Resolution | 1280x1024 (SXGA) , Aspect ratio 5:4 |
| Color depth | 24 bit (16.7 M) color |
| Contrast ratio | 1000:1 (typical) |
| Brightness | 450 cd/m2 (nit) |
| Viewing angle | horizontal: 170 °, vertical: 160 ° |
| Life span | back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Touch screen | 10-finger multi-touch, glove friendly |
| Interface type | USB touch screen signal, LVDS-video signal and inverter LCD backlight pins for VisuNet FLX computing unit connection |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUDIN EN 55035:2018-04 | Directive 2014/30/EUDIN EN 55035:2018-04 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | DIN EN 55035:2018-04 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Operating temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78 |
| Shock resistance | 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6 |
| Degree of protection | Front side: IP66 Back side: IP20 (when mounted to the computing unit from Pepperl+Fuchs) |
| Material | Front bezel: Stainless steel AISI304 (glass, silicone gasket)Backside: Painted aluminum sheet metal |
| Surfacefront: glass (optional with stainless steel bezel) | Surfacefront: glass (optional with stainless steel bezel) |
| Mass | approx. 6 kg |

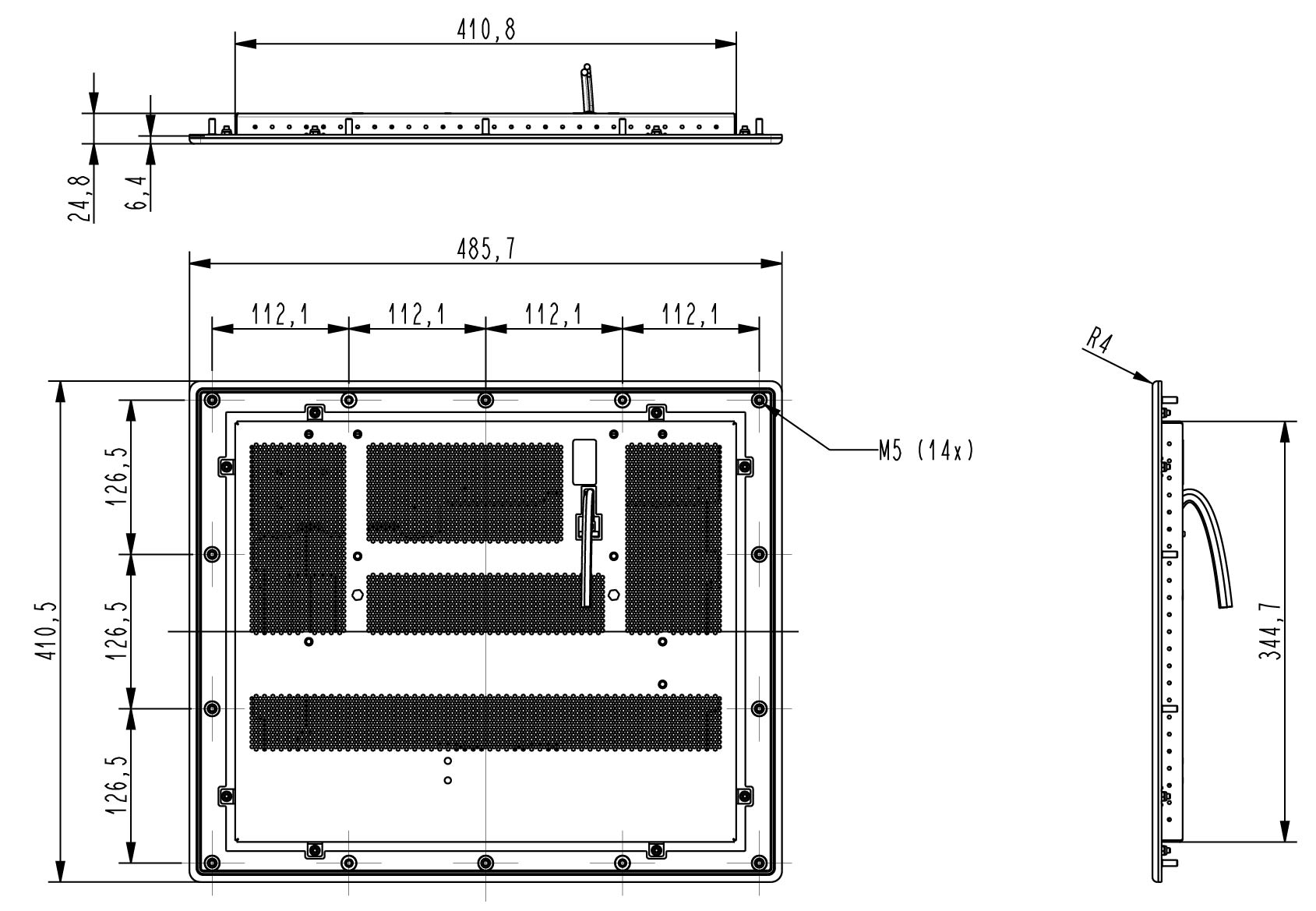

| Dimensions | 486 mm x 410.5 mm x 25 mm |
| Cut out dimensions | 455 mm x 386 mm +/- 1 mm |
| Surface | front: glass (optional with stainless steel bezel) |
| Certificate | Please refer to the VisuNet FLX System and VisuNet FLX Panel documentation. |
