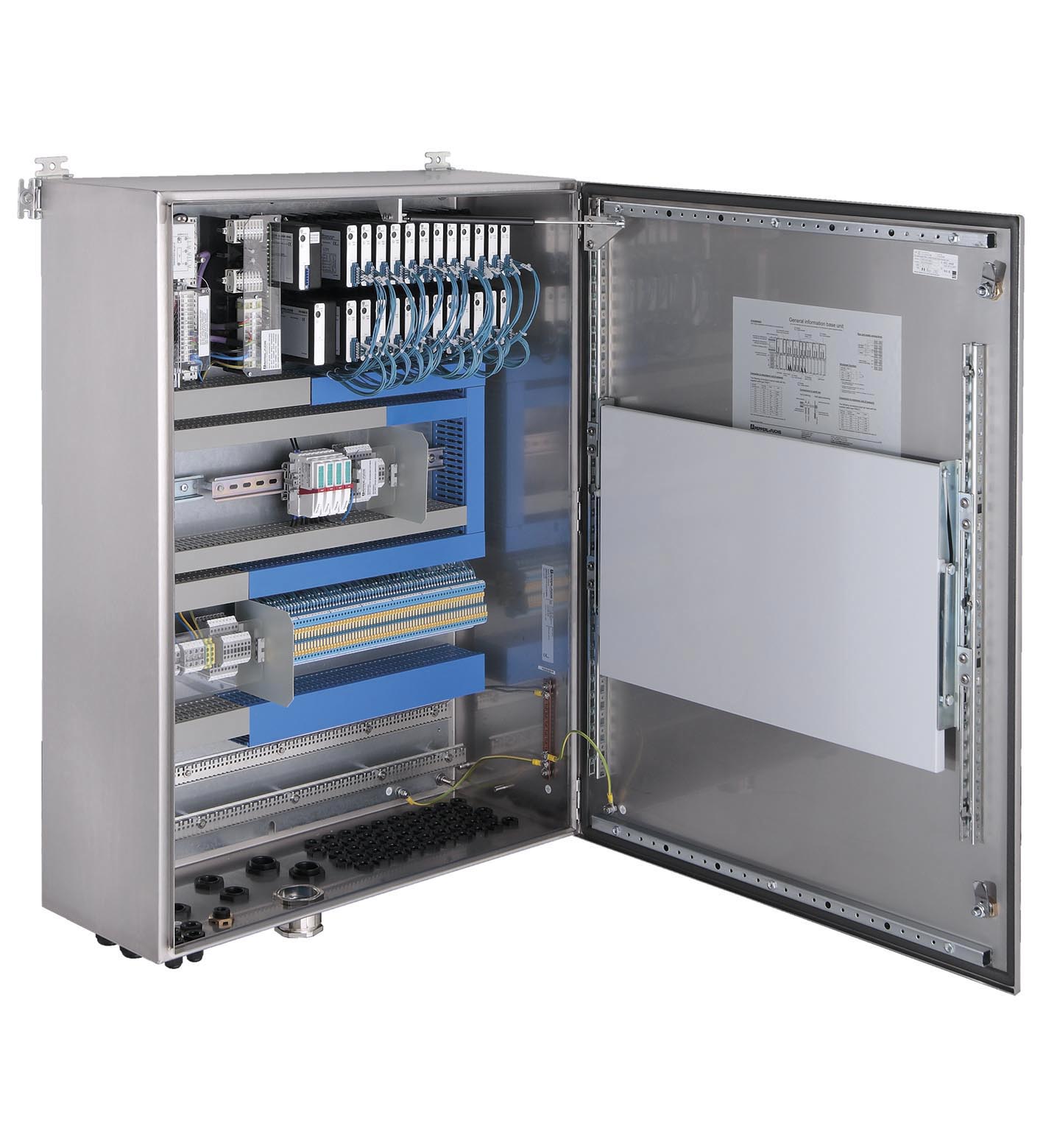

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 690 V max. |
|---|---|
| Operating current | application-specific |
| Terminal capacity | application-specific |
| Function | multiple functions as per specification |
| Enclosure range | DS |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel hexagonal head screws |
| ScrewsM6Numbersee data tableTightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 | ScrewsM6Numbersee data tableTightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 |
| Cover seal | chloroprene |
| Degree of protection | IP65/66 |
| Cable entry | see data table cable glands as per specification |
| Gland plate on face(s)as per specification | Gland plate on face(s)as per specification |
| Defined entry area | A, B, C & D |
| Terminal assembly | Terminal assembly |
| Number of railssee data tableNumber of terminals per railsee data table | Number of railssee data tableNumber of terminals per railsee data table |
| Material | Material |
| Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plate3 mm AISI 316L, (1.4404) stainless steelFinishelectropolished or powder coated | Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plate3 mm AISI 316L, (1.4404) stainless steelFinishelectropolished or powder coated |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

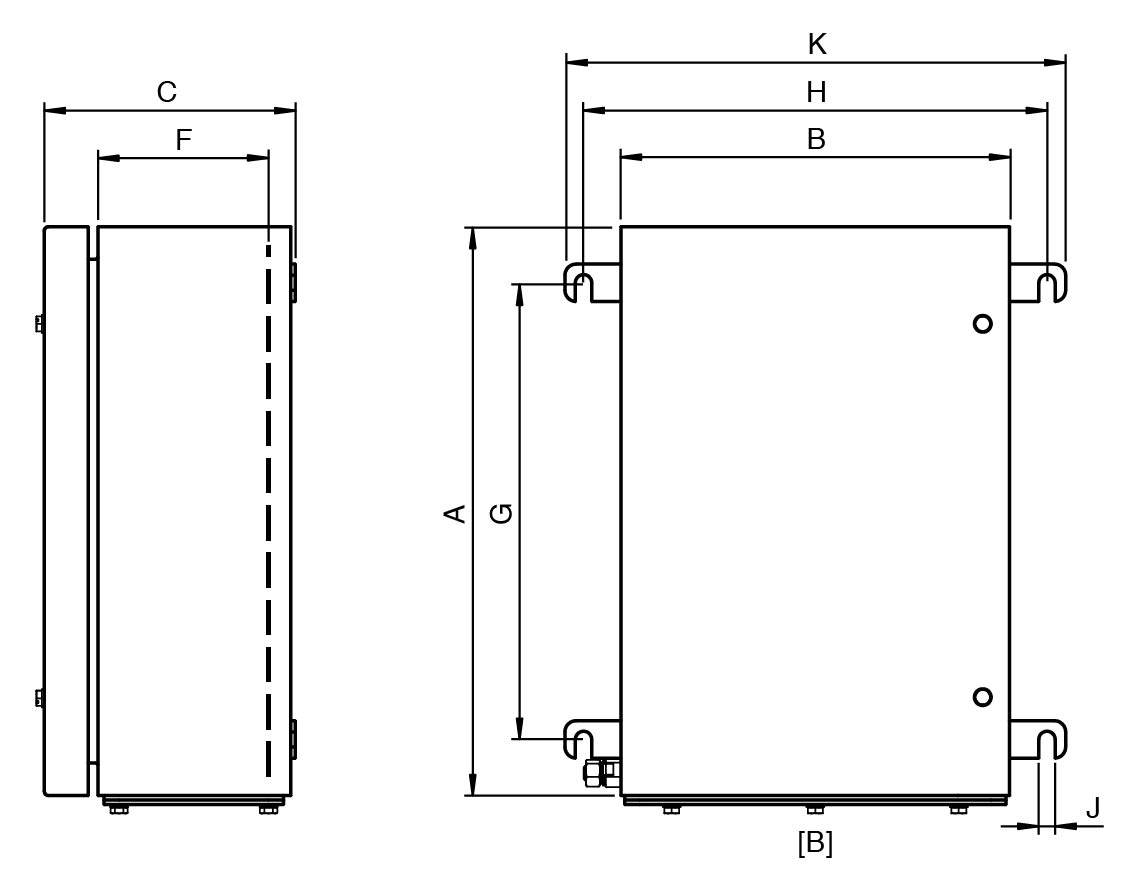

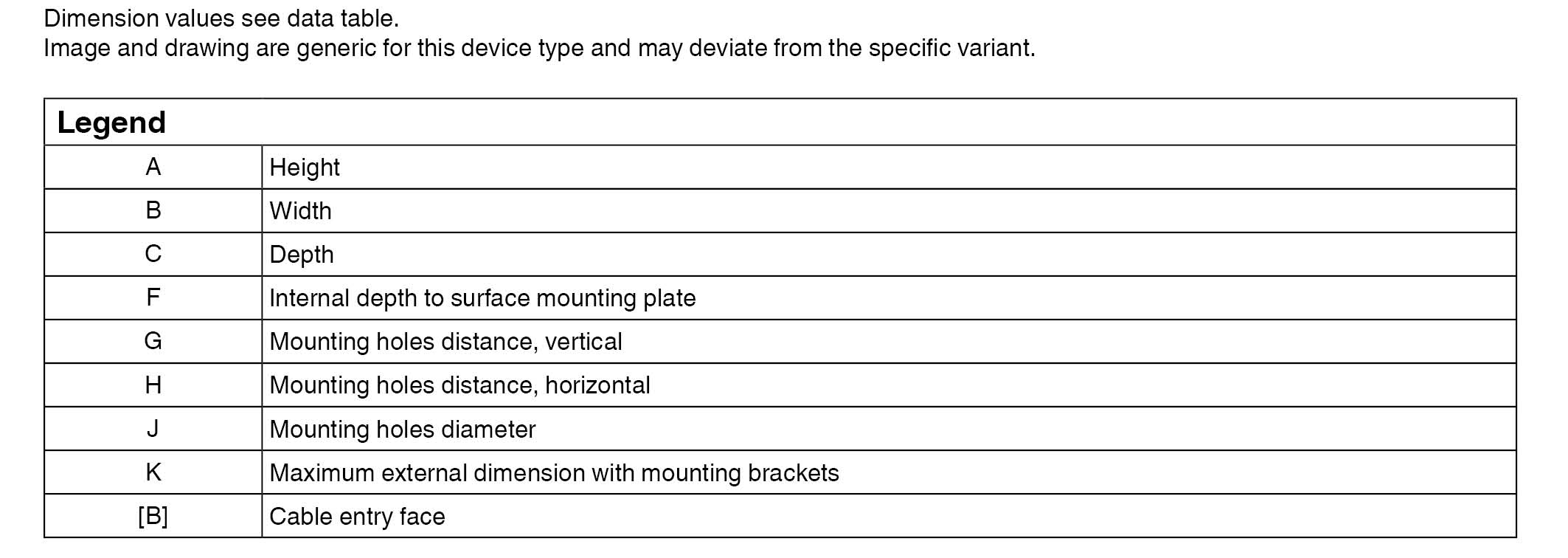

| Dimensions | see data table |
| Mounting | see data table |
| Grounding | M6 internal/external brass grounding bolt |
| Screws | M6 |
| Number | see data table |
| Tightening torque | 3 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| Gland plate on face(s) | as per specification |
| Number of rails | see data table |
| Number of terminals per rail | see data table |
| Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Gland plate | 3 mm AISI 316L, (1.4404) stainless steel |
| Finish | electropolished or powder coated |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) depending on integrated components |
| Max dissipation / ambient temperature / T class | see data table |
| IECEx approval | IECEx SIM 09.0001X |
| IECEx markingEx tD A21 T80 °C @ Ta +55 °C | IECEx markingEx tD A21 T80 °C @ Ta +55 °C |
| IECEx marking | Ex tD A21 T80 °C @ Ta +55 °C |
| Degree of protection | EN 60529 |
| CE marking | 0102 |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
