TECHNICAL DATA
规格参数
Software
| Hardware requirements | PC with 1 GHz processor and at least 512 MByte RAM |
|---|---|
| Operating system | see release notes in the software package |
| Languages | English |
| Expert System | Built-in expert system interprets behavior of each segment based on rules and gives pointed information in clear text. Precisely diagnosis causes and suggests remedies, which are easy to understand. |

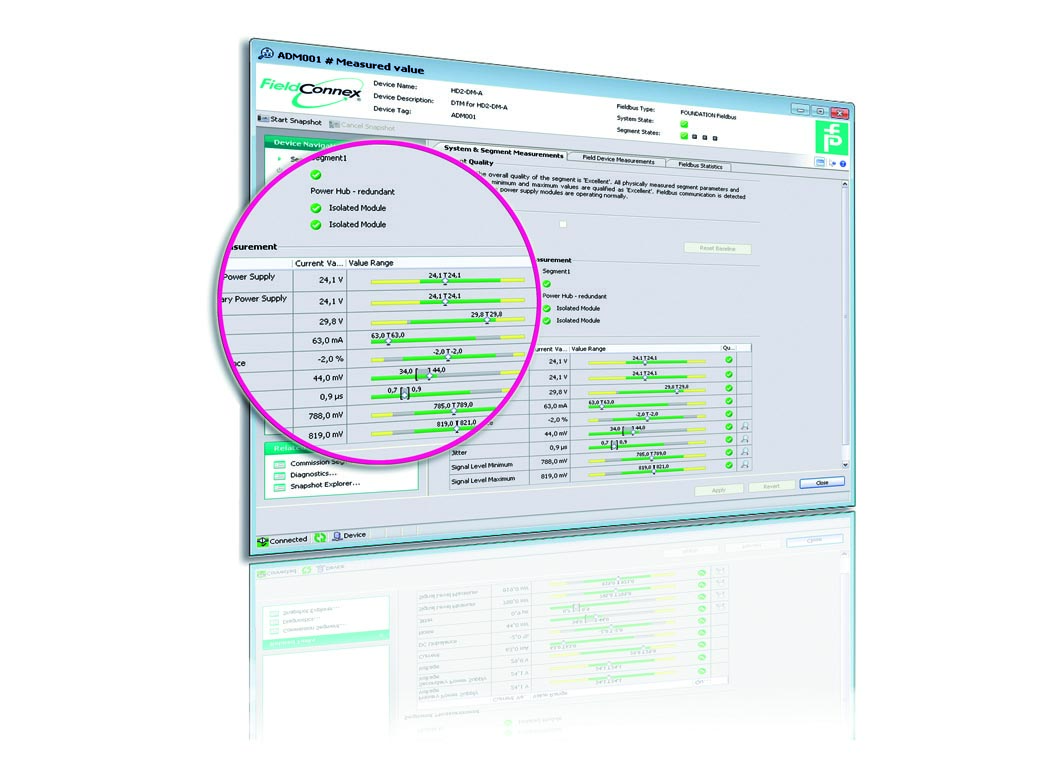

| Physical Layer Diagnostics | Bulk power health, segment voltage and current, unbalance, noise, signal level, signal polarity, jitter |
| Commissioning Wizard | Generates reports on physical layer and communications data per device or segment. Automates repetitive tasks during commissioning. |
| Snapshot Explorer | User interface to review the history of Physical Layer Measurement Reports stored. |
| History Data Export | Export of long-term history data to Excel and the file formats comma-separated (CSV) or binary for graphic analysis and diagram creation |
| Segment Focus Mode | Fast update of detailed measurements for a single segment |
| Integrated oscilloscope | Displays fieldbus signals in waveform giving greatest detail. To aid troubleshooting activities, even seldom occuring events can be captured using the oscilloscope's many selectable trigger functions. |
| OPC Server Interface | The open OPC server interface can easily be adapted to any OPC client. It provides as a Data Access Server (Version 2.05) Summarized State information and basic diagnostic data such as the operating status of the diagnostic module and of the segments. |
| Remote diagnostics | Fieldbus experts and maintenance contractors are enabled to review Physical Layer diagnostics from off-site. |
